20 x 11 mm non-standard surface lights (LS-BKL-1522)

Model LS-BKL-1522

Emitting area12 x 11 mm
Voltage24 V DC (12 V on request)
TypeStandard
Length20 mm

$139.00

Ships in 2-3 weeks

0.2 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Non-standard (tailor-made) lights listed in the catalog's non-standard series table.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-1522

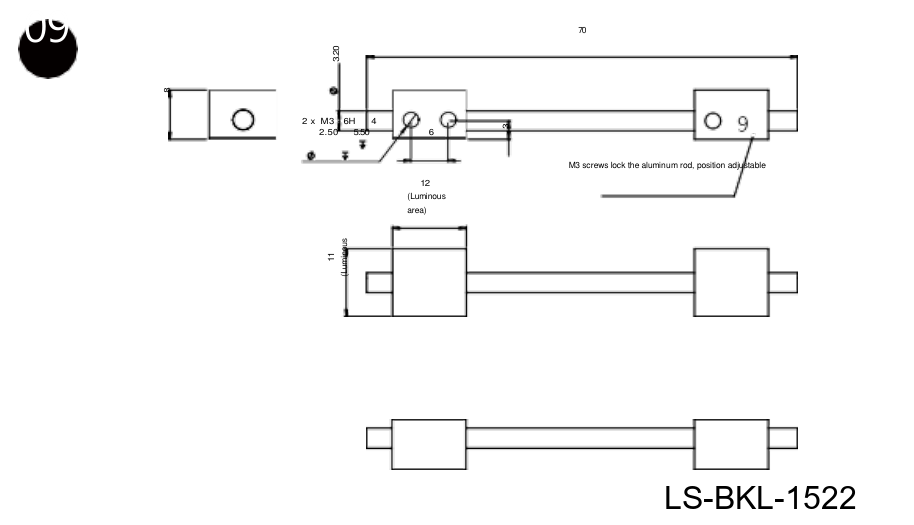

Rod adjustment	M3 screws lock the aluminum rod, position adjustable

Light

Emitting surface (mm)	12 x 11

Electrical

Voltage	24 V DC (12 V on request)
Power red (W)	0.4
Power white/blue/green (W)	0.4

Mechanical

Length (mm)	20
Width (mm)	11
Height (mm)	8
Mounting	2 x M3-6H threaded, depth 4 (dia. 2.5 drill, depth 5.5)
Shipping weight	0.20 kg

Other models in the Non-standard surface lights (LS-BKL-S135) series

See all 7 models

Model	Size / key data	Price	Availability	Link
LS-BKL-1521	12 x 9 mm · 24 V DC (12 V on request)	$139.00	Ships in 2-3 weeks	View
LS-BKL-1525	290 x 18 mm · 24 V DC (12 V on request)	$139.00	Ships in 2-3 weeks	View
LS-BKL-1523	U-shape: arms 22 and 17 wide, 63 high · 24 V DC (12 V on request)	$159.00	Ships in 2-3 weeks	View
LS-BKL-1524	90 x 90 mm · 24 V DC (12 V on request)	$179.00	Ships in 2-3 weeks	View
LS-BKL-1526	24 V DC (12 V on request) · Standard	$439.00	Ships in 2-3 weeks	View
LS-BKL-1527	24 V DC (12 V on request) · Standard	$599.00	Ships in 2-3 weeks	View
