Backlights

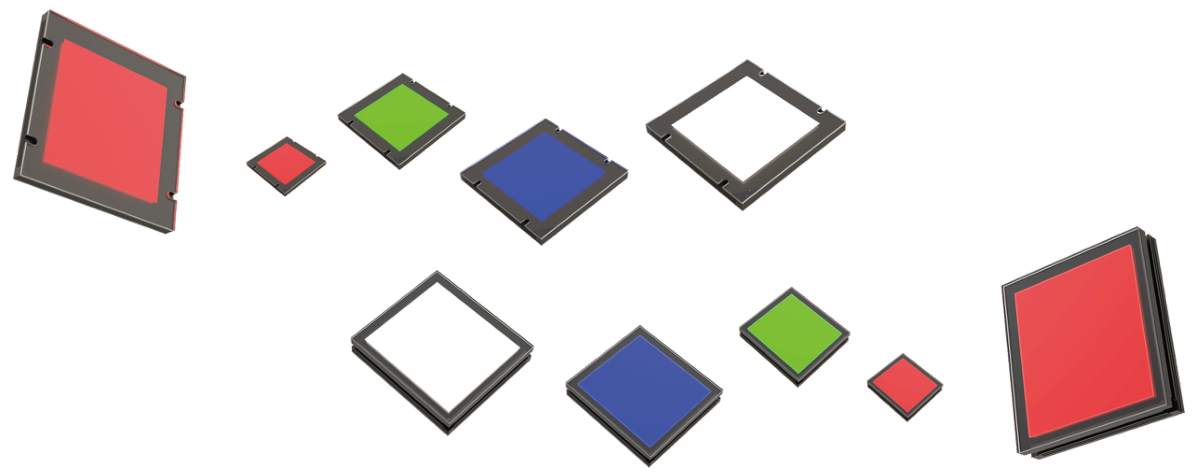

120 x 120 mm Collimated LED Backlight (LS-BKL-1043)

Model LS-BKL-1043

ColourRed, Green, Blue, White
Emitting area120x120 mm
Size134x134x19 mm
Voltage24 V

$379.00

Ships in 2-3 weeks

0.55 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

120 x 120 mm Collimated LED Backlight. Collimated bottom-lit backlight (LED array + diffuser) that sharpens product edges and raises contrast, 19 mm thick.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-1043

Interfaces and I/O

Cable length (mm)	500
Connector	3-pin: 1 +, 2 not connected, 3 -

Light

Emitting area (mm)	120x120
Colours	Red, Green, Blue, White

Electrical

Voltage (V)	24

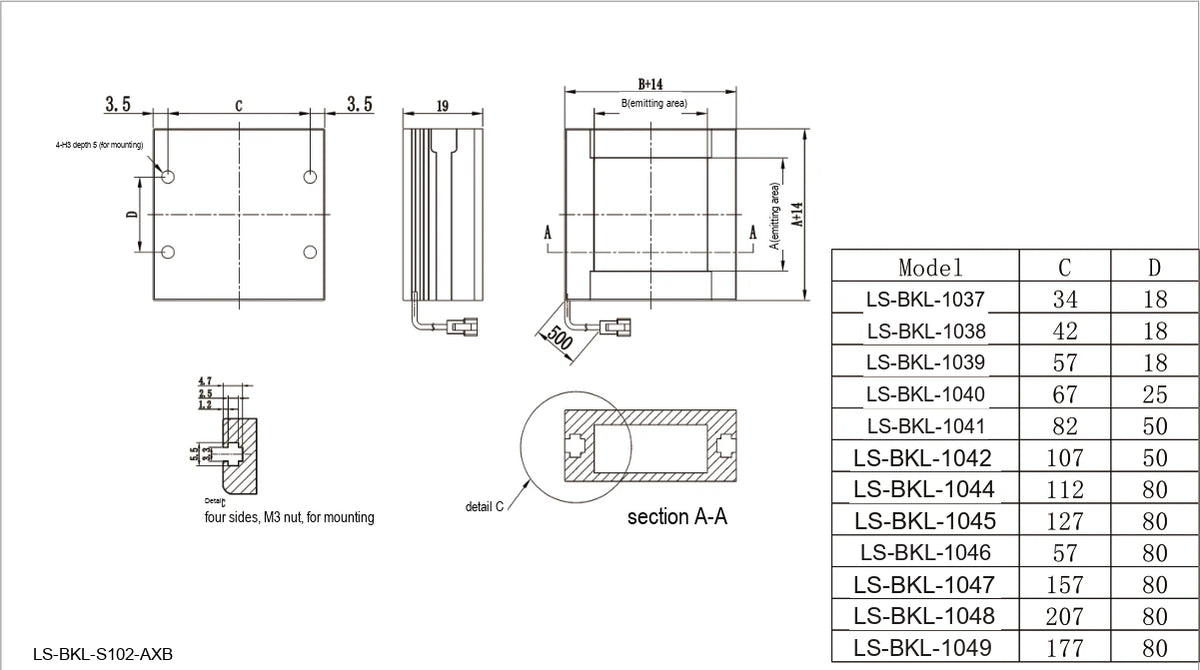

Mechanical

Outer size L x W x H (mm)	134x134x19
Thickness (mm)	19
Mounting	4 x M3, 5 mm deep, on 127 x 80 mm (back)
Shipping weight	0.55 kg

Downloads

Features

Flexible design for width, length, and overall dimensions.
Effectively enhances product edge sharpness and contrast.
High uniformity.

Applications

Metal cylinder contour inspection, glass bottle diameter inspection, ceramic column diameter inspection, screw thread contour inspection.
Transparent packaging box detection
Contour defects
Burrs on gold-plated components
Coil burr detection

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the Collimated Bottom Back Light (LS-BKL-S102) series

See all 13 models

Model	Size / key data	Price	Availability	Link
LS-BKL-1037	27 x 27 mm	$229.00	Ships in 2-3 weeks	View
LS-BKL-1038	43 x 35 mm	$229.00	Ships in 2-3 weeks	View
LS-BKL-1039	50 x 50 mm	$249.00	Ships in 2-3 weeks	View
LS-BKL-1040	63 x 60 mm	$259.00	Ships in 2-3 weeks	View
LS-BKL-1041	83 x 75 mm	$289.00	Ships in 2-3 weeks	View
LS-BKL-1042	100 x 100 mm	$329.00	Ships in 2-3 weeks	View
LS-BKL-1046	200 x 50 mm	$329.00	Ships in 2-3 weeks	View
LS-BKL-1044	140 x 105 mm	$389.00	Ships in 2-3 weeks	View
LS-BKL-1045	160 x 120 mm	$439.00	Ships in 2-3 weeks	View
LS-BKL-1047	200 x 150 mm	$569.00	Ships in 2-3 weeks	View
LS-BKL-1049	224 x 170 mm	$669.00	Ships in 2-3 weeks	View
LS-BKL-1048	211 x 200 mm	$709.00	Ships in 2-3 weeks	View
