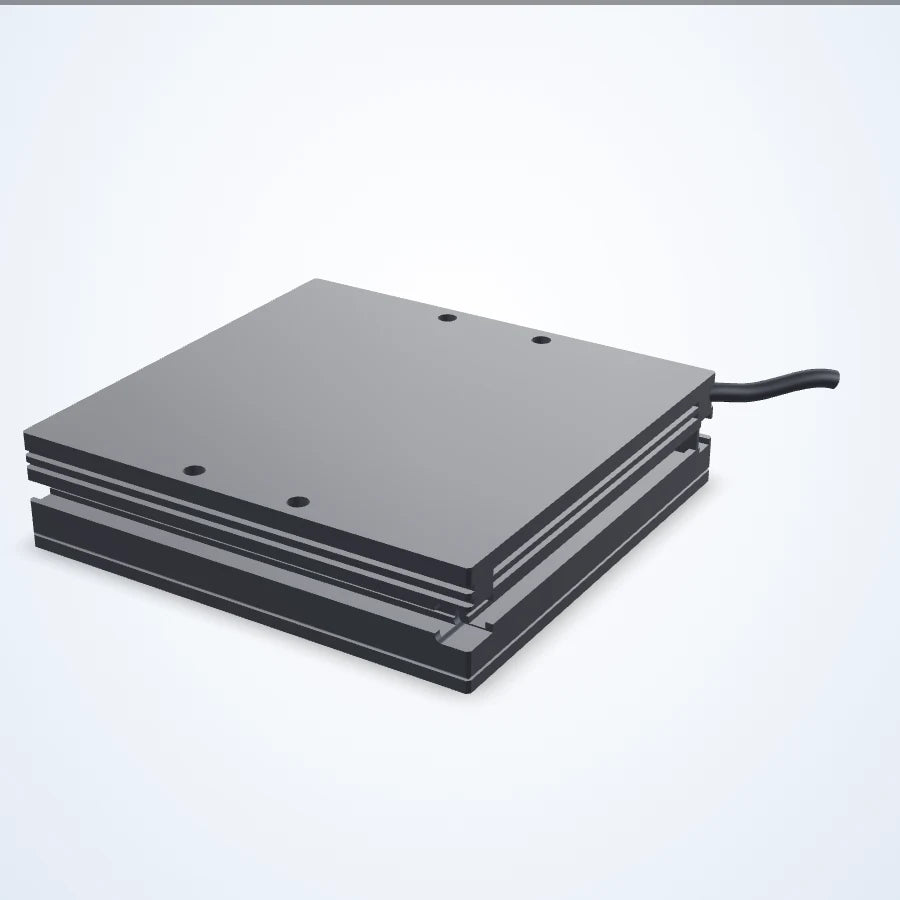

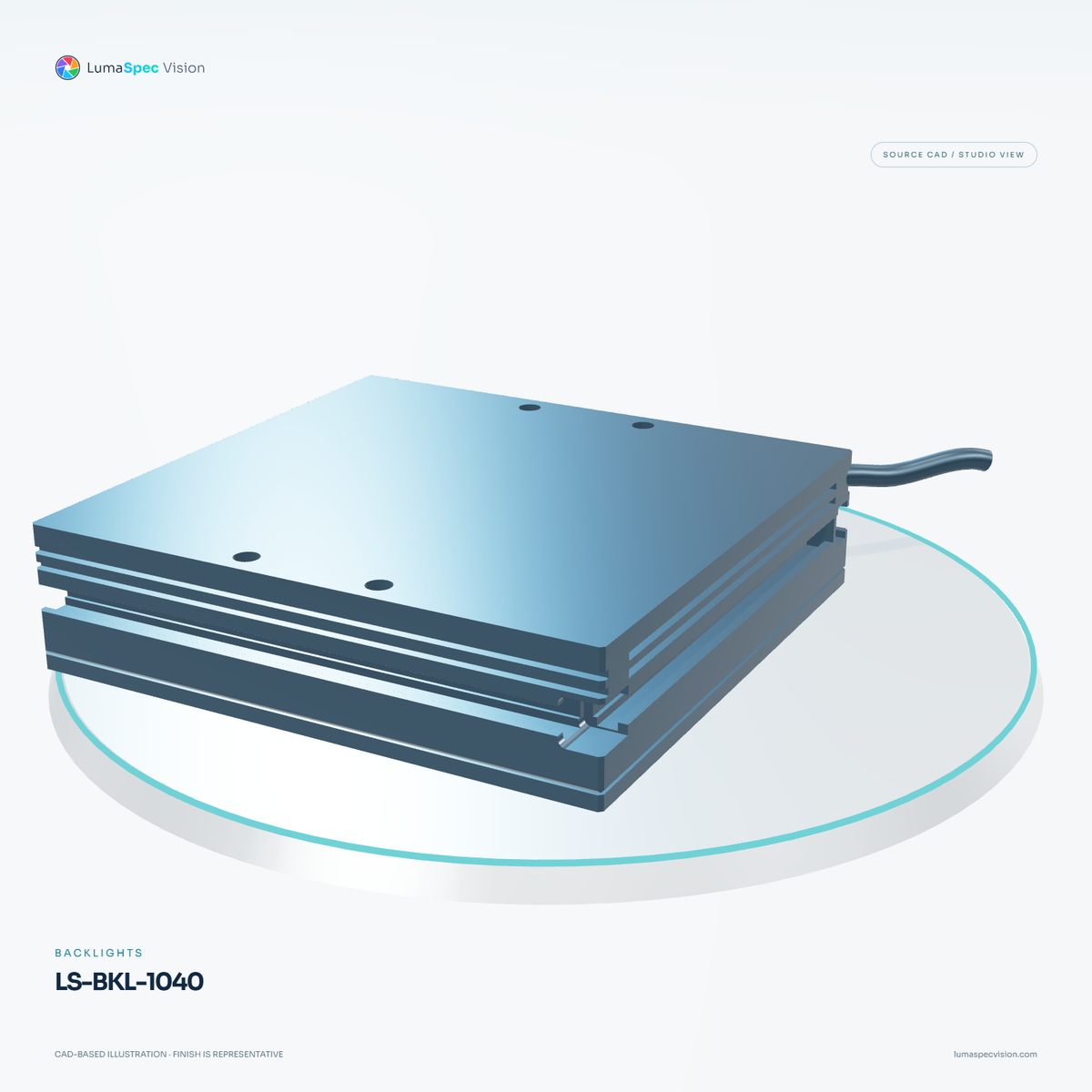

  • LS-BKL-1040 — Backlights, 3D view 1. CAD-based illustration; finish is representative.

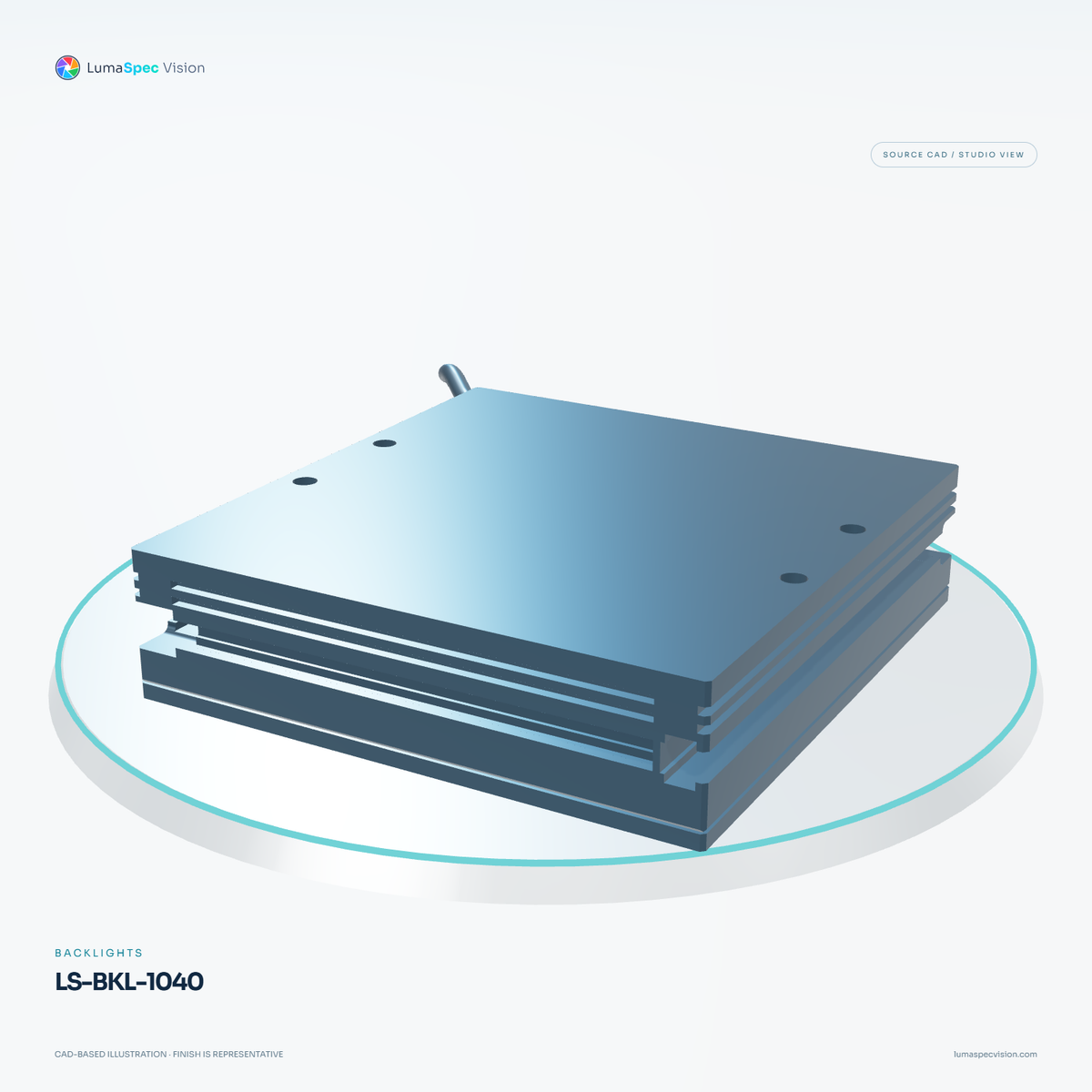

  • LS-BKL-1040 — Backlights, 3D view 2. CAD-based illustration; finish is representative.

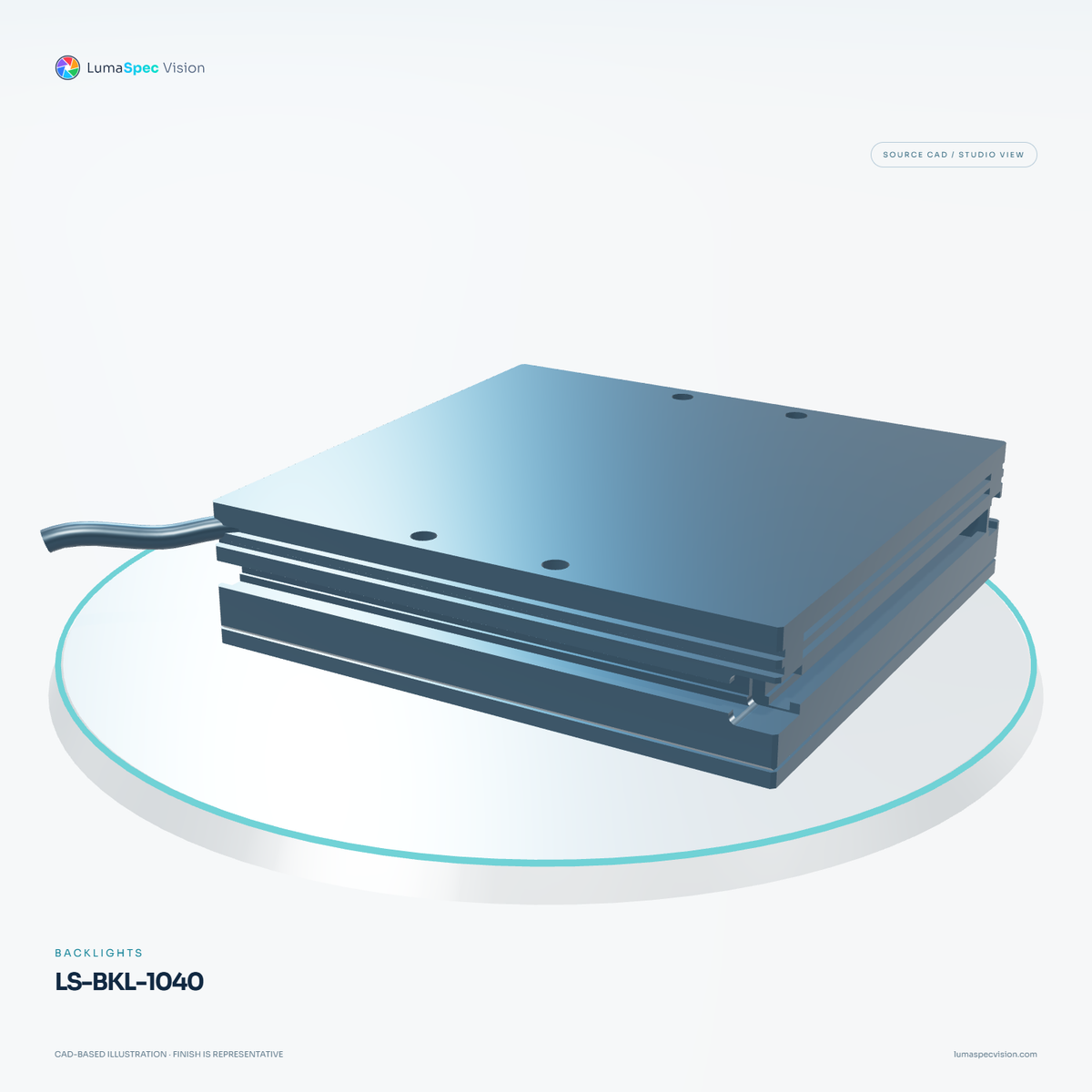

  • LS-BKL-1040 — Backlights, 3D view 3. CAD-based illustration; finish is representative.

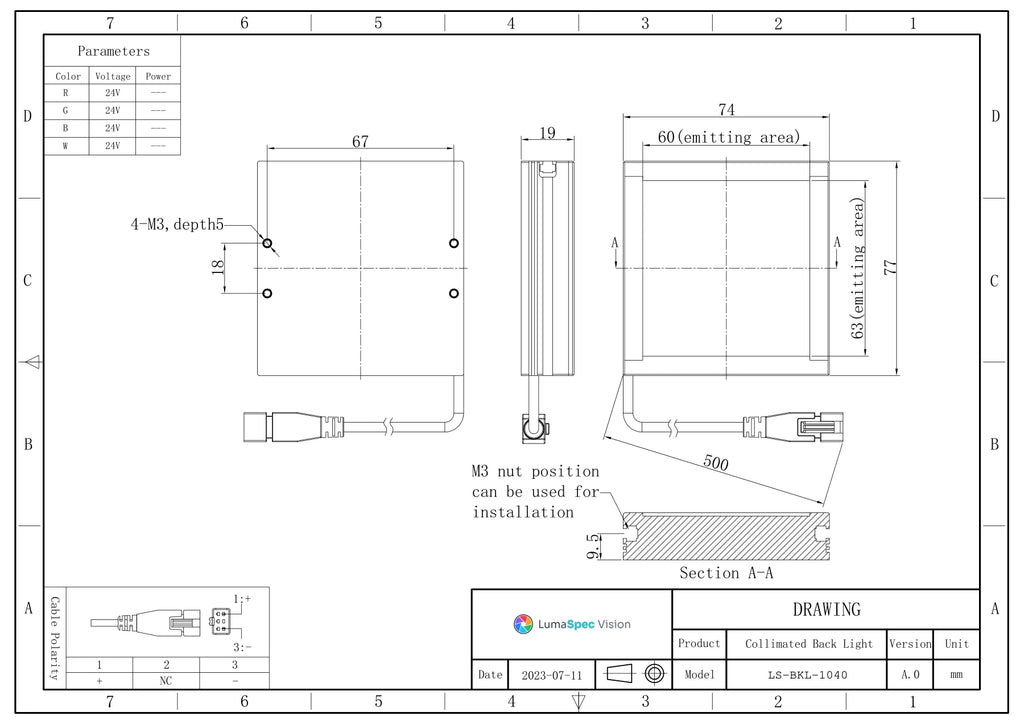

  • LS-BKL-1040 dimensions (mm)

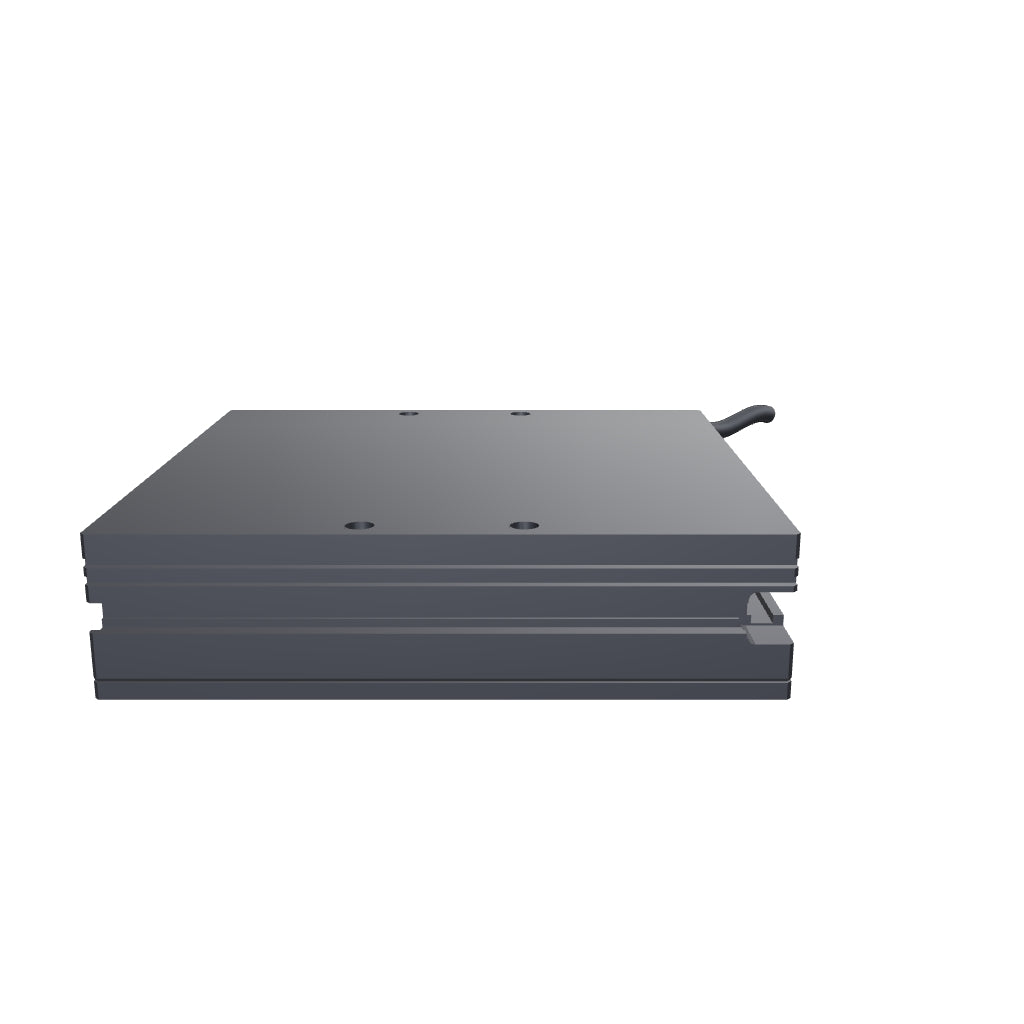

  • LS-BKL-1040 3D model

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Backlights

63 x 60 mm Collimated LED Backlight (LS-BKL-1040)

Model LS-BKL-1040

  • ColourRed, Green, Blue, White
  • Emitting area63x60 mm
  • Size77x74x19 mm
  • Voltage24 V
  • Power8 W
$259.00

Ships in 2-3 weeks

0.3 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

63 x 60 mm Collimated LED Backlight (LS-BKL-1040)LS-BKL-1040

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

63 x 60 mm Collimated LED Backlight. Collimated bottom-lit backlight (LED array + diffuser) that sharpens product edges and raises contrast; same footprints as the LS-BKL-S102 series, 19 mm thick.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1040
Construction (setup diagram)LED / housing / diffuser plate

Interfaces and I/O

Cable length (mm)500

Light

Emitting area (mm)63x60
ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)5.3
Power W/B/G (W)8

Mechanical

Outer size L x W x H (mm)77x74x19
Thickness (mm)19
Mounting4-M3 depth 5 on back; M3 nut slot in side profile
Shipping weight (estimated)0.30 kg

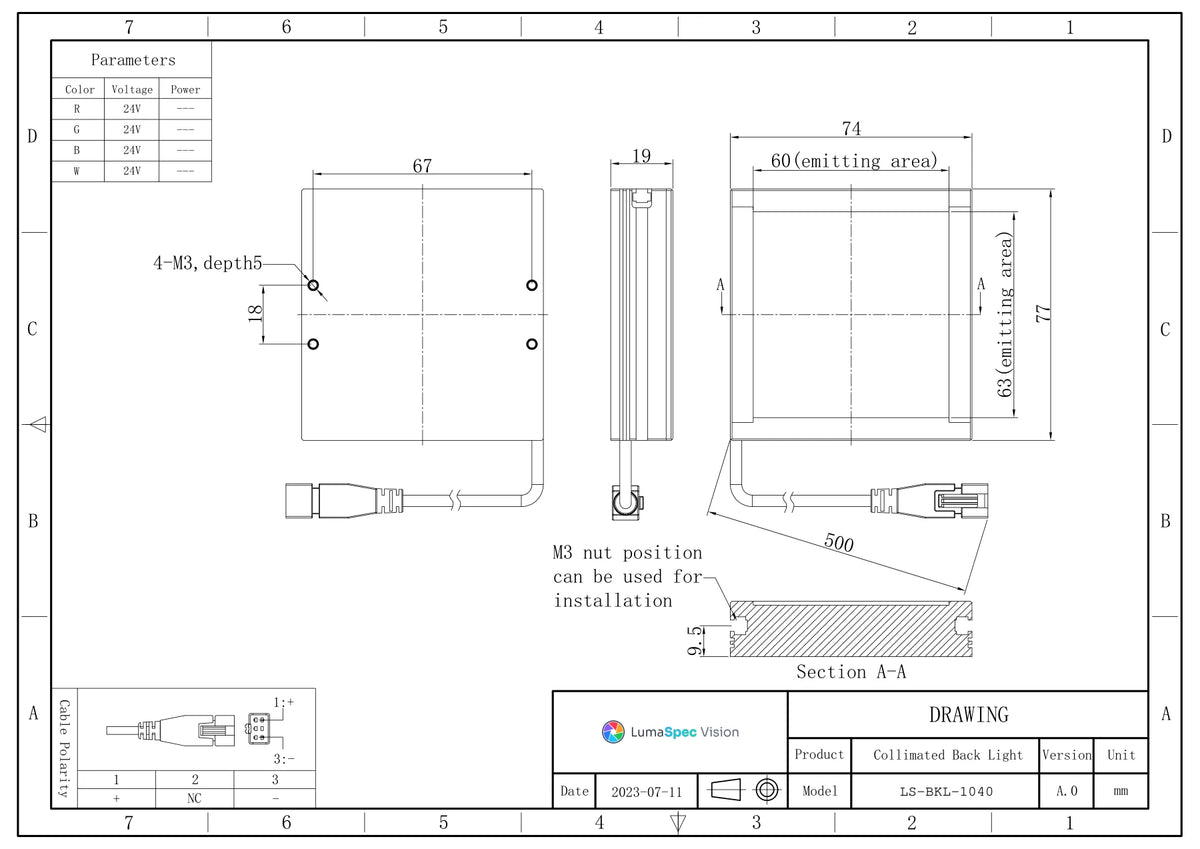

Mounting and drawing data

drawing table: C=67, D=25 (4-M3 depth-5 mounting hole spacing)

LS-BKL-1040

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-BKL-1040 — Backlights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Outer size L x W x H (mm)
77x74x19
Emitting area (mm)
63x60
Voltage (V)
24

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Collimated Bottom Back Light (LS-BKL-S102) series

See all 13 models
ModelSize / key dataPriceAvailabilityLink
LS-BKL-1037 27 x 27 mm $229.00 Ships in 2-3 weeks View
LS-BKL-1038 43 x 35 mm $229.00 Ships in 2-3 weeks View
LS-BKL-1039 50 x 50 mm $249.00 Ships in 2-3 weeks View
LS-BKL-1041 83 x 75 mm $289.00 Ships in 2-3 weeks View
LS-BKL-1042 100 x 100 mm $329.00 Ships in 2-3 weeks View
LS-BKL-1046 200 x 50 mm $329.00 Ships in 2-3 weeks View
