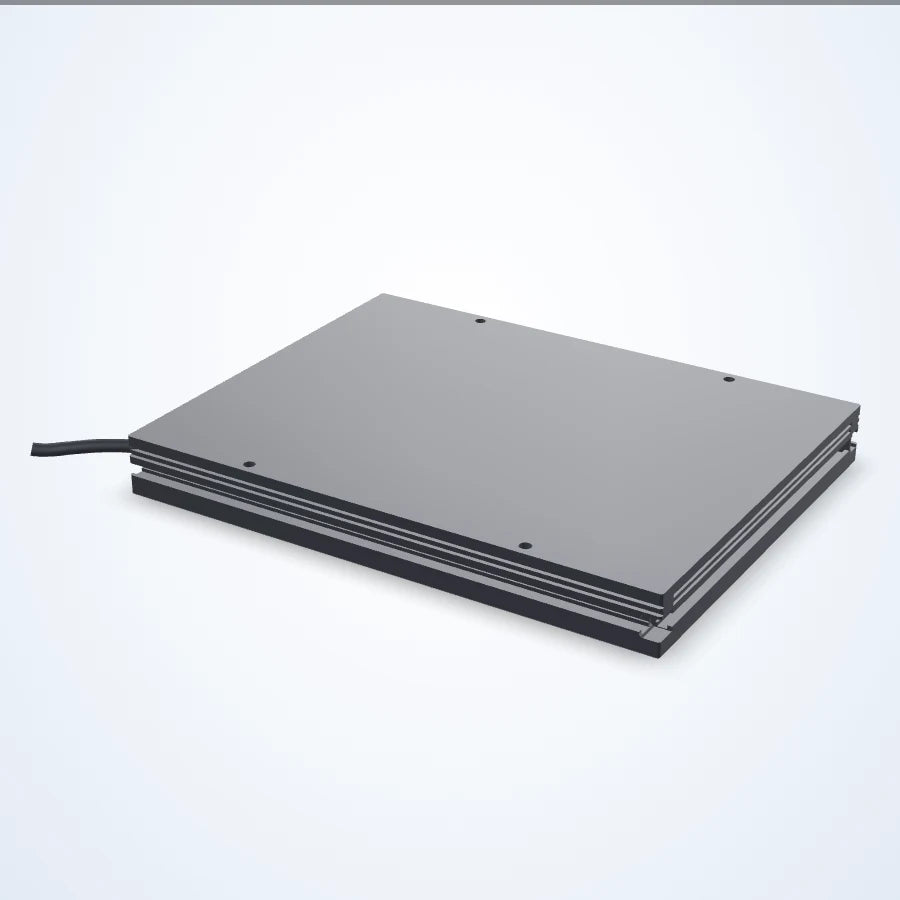

  • LS-BKL-1031 3D render

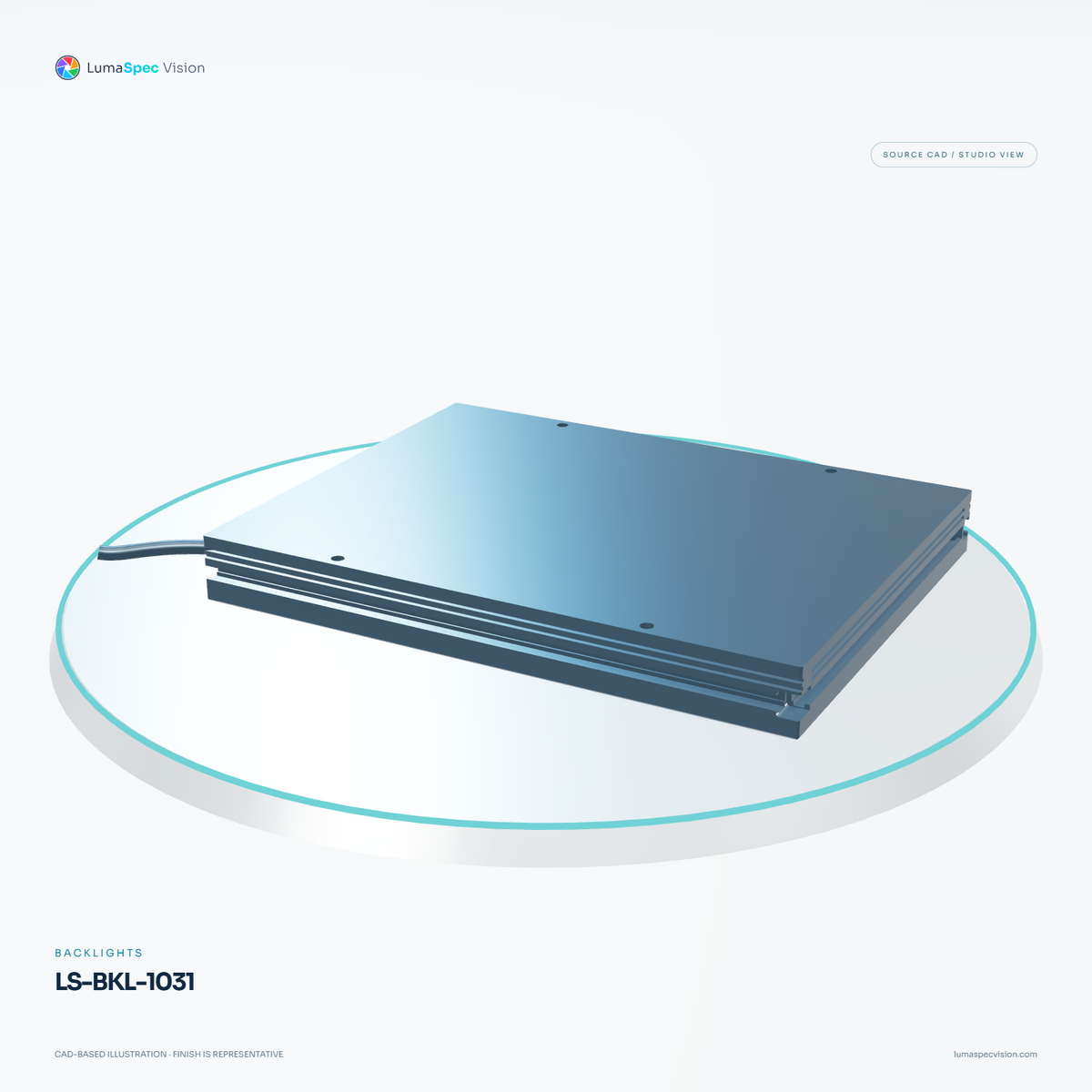

  • LS-BKL-1031 — Backlights, 3D view 1. CAD-based illustration; finish is representative.

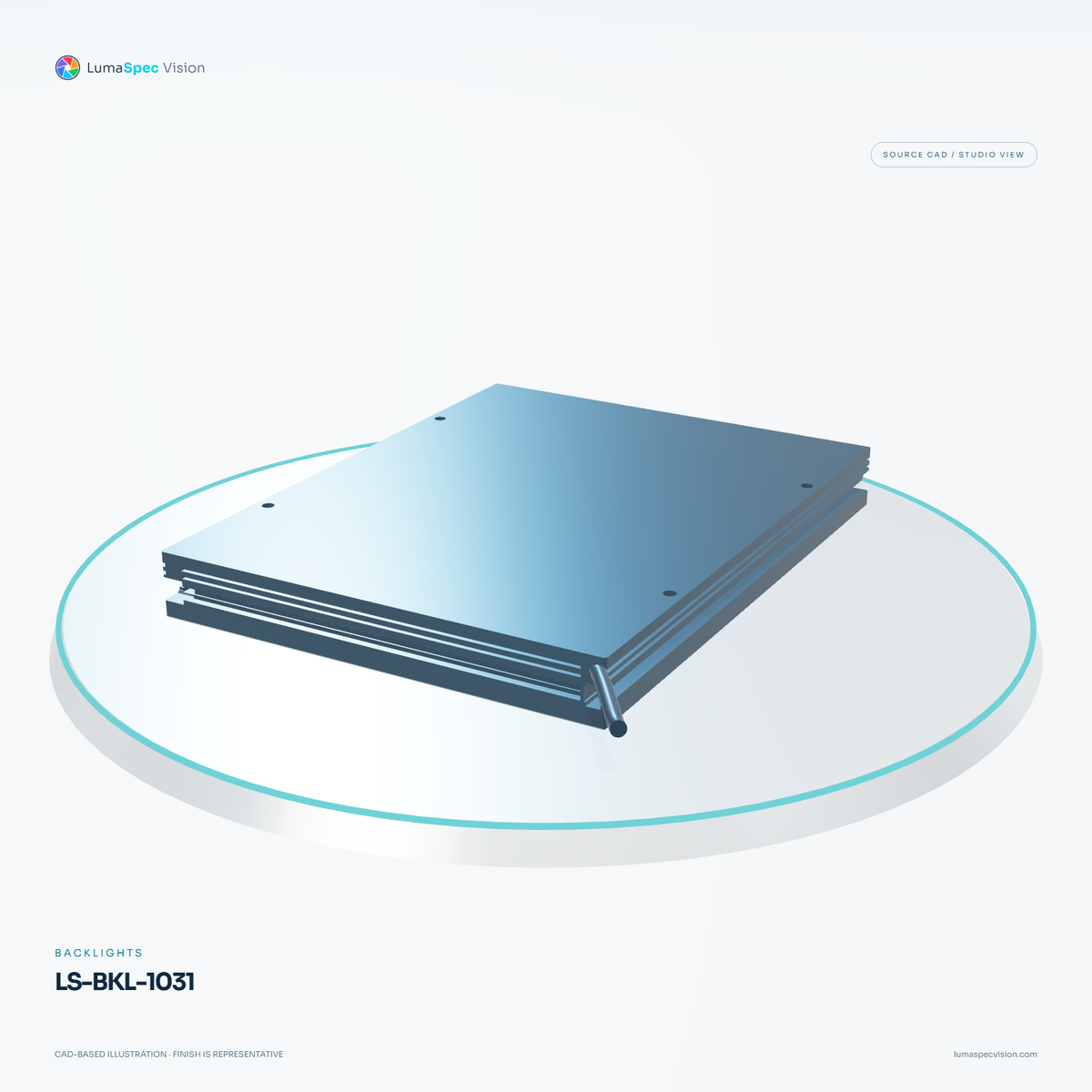

  • LS-BKL-1031 — Backlights, 3D view 2. CAD-based illustration; finish is representative.

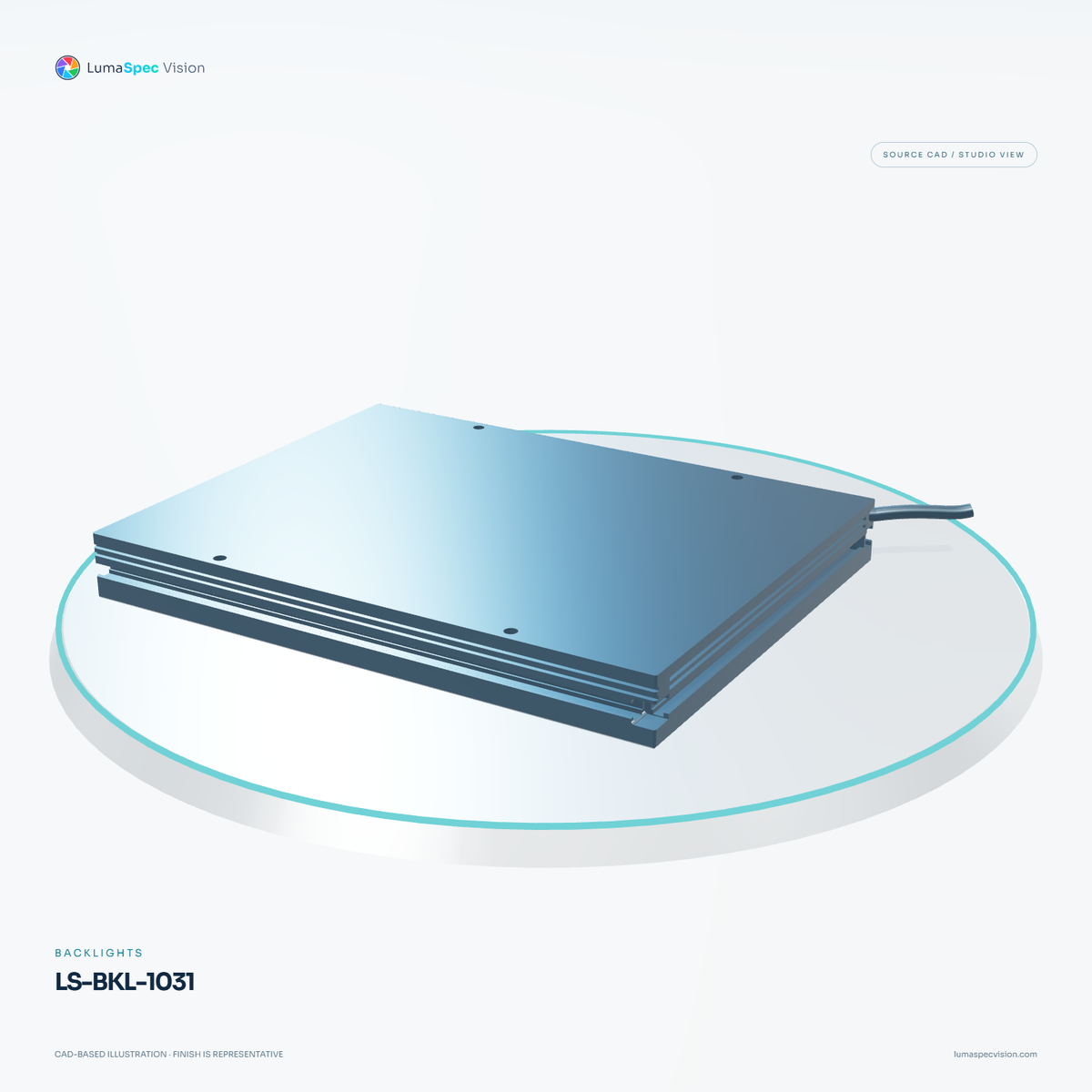

  • LS-BKL-1031 — Backlights, 3D view 3. CAD-based illustration; finish is representative.

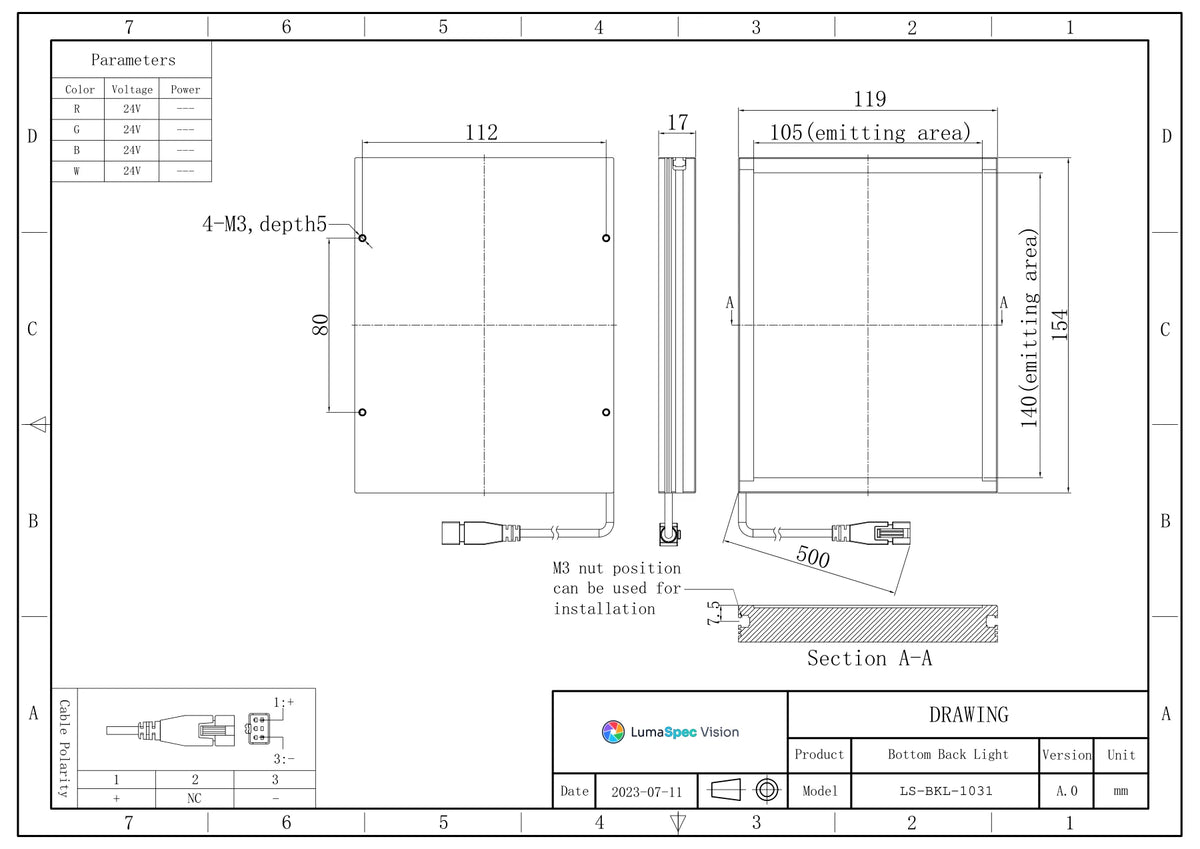

  • LS-BKL-1031 dimensions (mm)

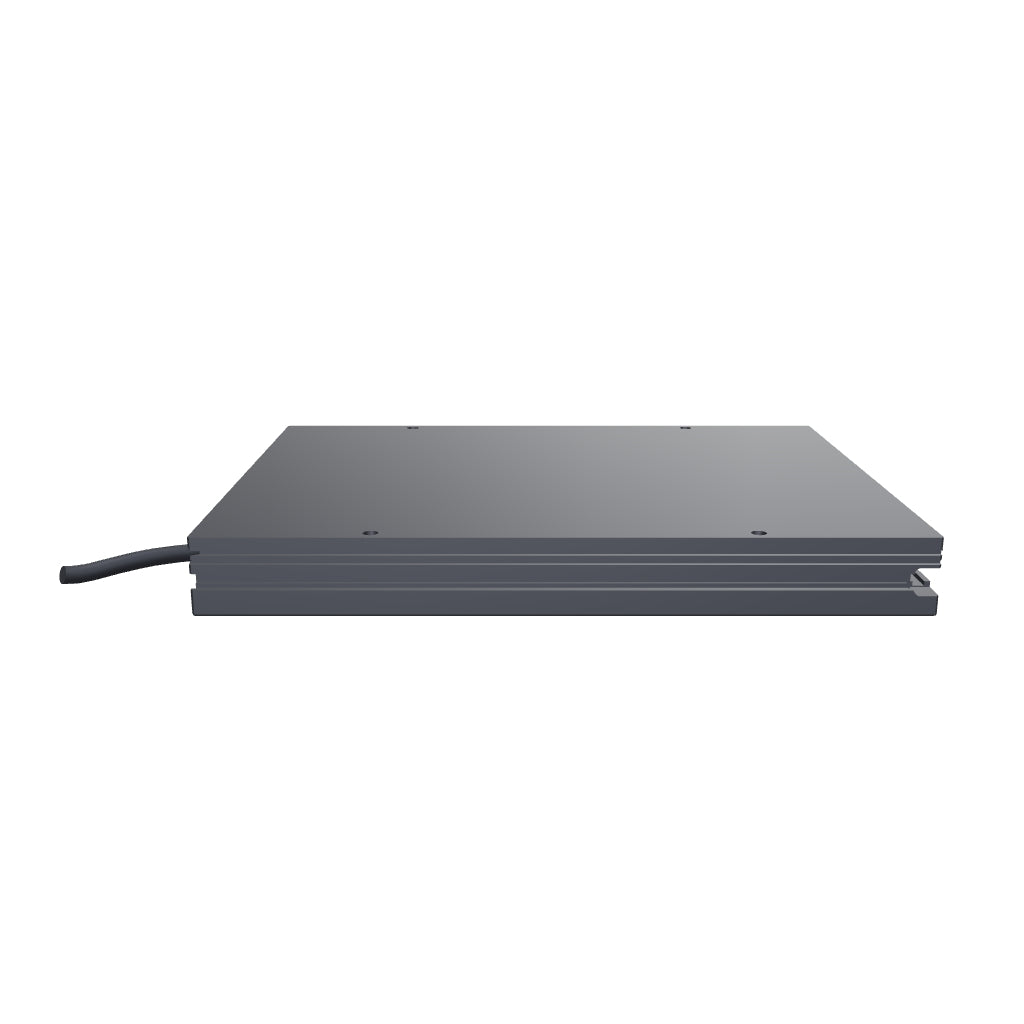

  • LS-BKL-1031 3D model

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Backlights

140 x 105 mm Bottom-Lit LED Backlight (LS-BKL-1031)

Model LS-BKL-1031

  • ColourRed, Green, Blue, White
  • Emitting area140x105 mm
  • Size154x119x17 mm
  • Voltage24 V
  • Power15 W
$319.00

Ships in 2-3 weeks

0.5 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

140 x 105 mm Bottom-Lit LED Backlight (LS-BKL-1031)LS-BKL-1031

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

140 x 105 mm Bottom-Lit LED Backlight. Bottom-lit LED backlight: a high-brightness LED array under a diffuser plate gives uniform planar illumination for transmissive contour imaging.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1031
Construction (setup diagram)LED / housing / diffuser plate

Interfaces and I/O

Cable length (mm)500

Light

Emitting area (mm)140x105
ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)9.9
Power W/B/G (W)15

Mechanical

Outer size L x W x H (mm)154x119x17
Mounting4-M3 depth 5 on back; M3 nut slot in side profile
Thickness (mm)17
Shipping weight (estimated)0.50 kg

Mounting and drawing data

drawing table: C=112, D=80 (4-M3 depth-5 mounting hole spacing)

LS-BKL-1031

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-BKL-1031 — Backlights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Outer size L x W x H (mm)
154x119x17
Emitting area (mm)
140x105
Voltage (V)
24

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Bottom Back Light (LS-BKL-S101) series

See all 12 models
