83 x 75 mm Bottom-Lit LED Backlight (LS-BKL-1029)
Model LS-BKL-1029
- ColourRed, Green, Blue, White
- Emitting area83x75 mm
- Size97x89x17 mm
- Voltage24 V
- Power9.5 W
$249.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
83 x 75 mm Bottom-Lit LED Backlight. Bottom-lit LED backlight: a high-brightness LED array under a diffuser plate gives uniform planar illumination for transmissive contour imaging.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1029 |
|---|---|
| Construction (setup diagram) | LED / housing / diffuser plate |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 83x75 |
|---|---|
| Colours | Red, Green, Blue, White |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 6.3 |
| Power W/B/G (W) | 9.5 |
Mechanical
| Outer size L x W x H (mm) | 97x89x17 |
|---|---|
| Mounting | 4-M3 depth 5 on back; M3 nut slot in side profile |
| Thickness (mm) | 17 |
| Shipping weight (estimated) | 0.35 kg |

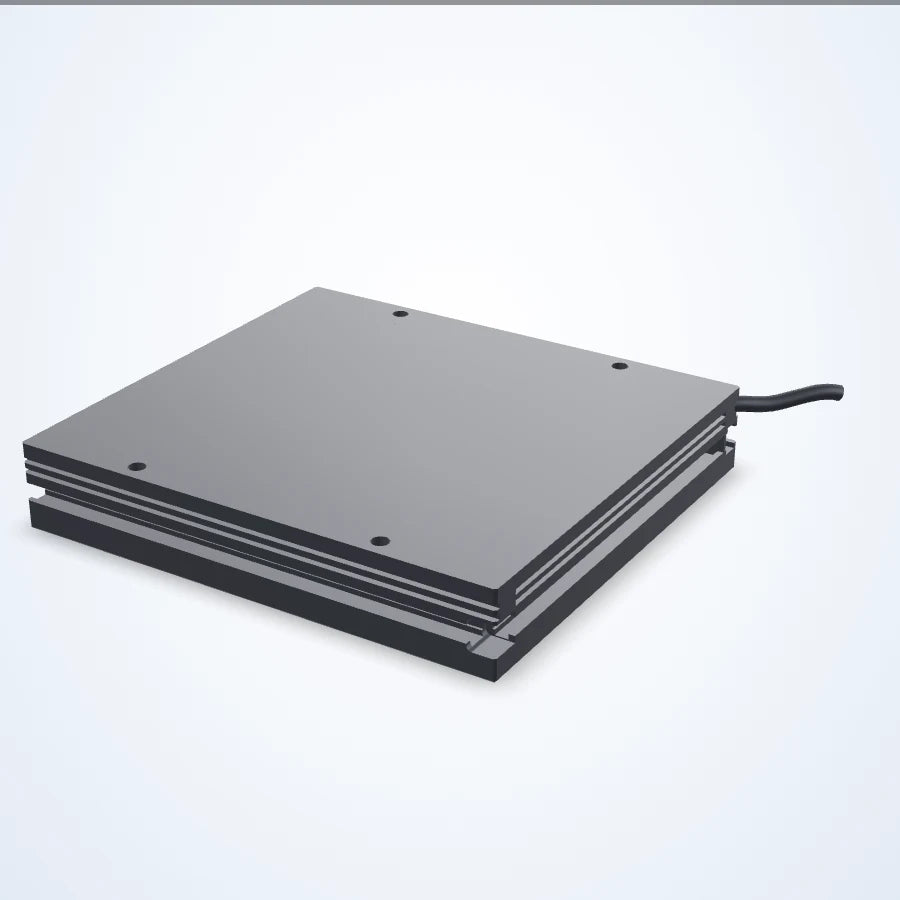

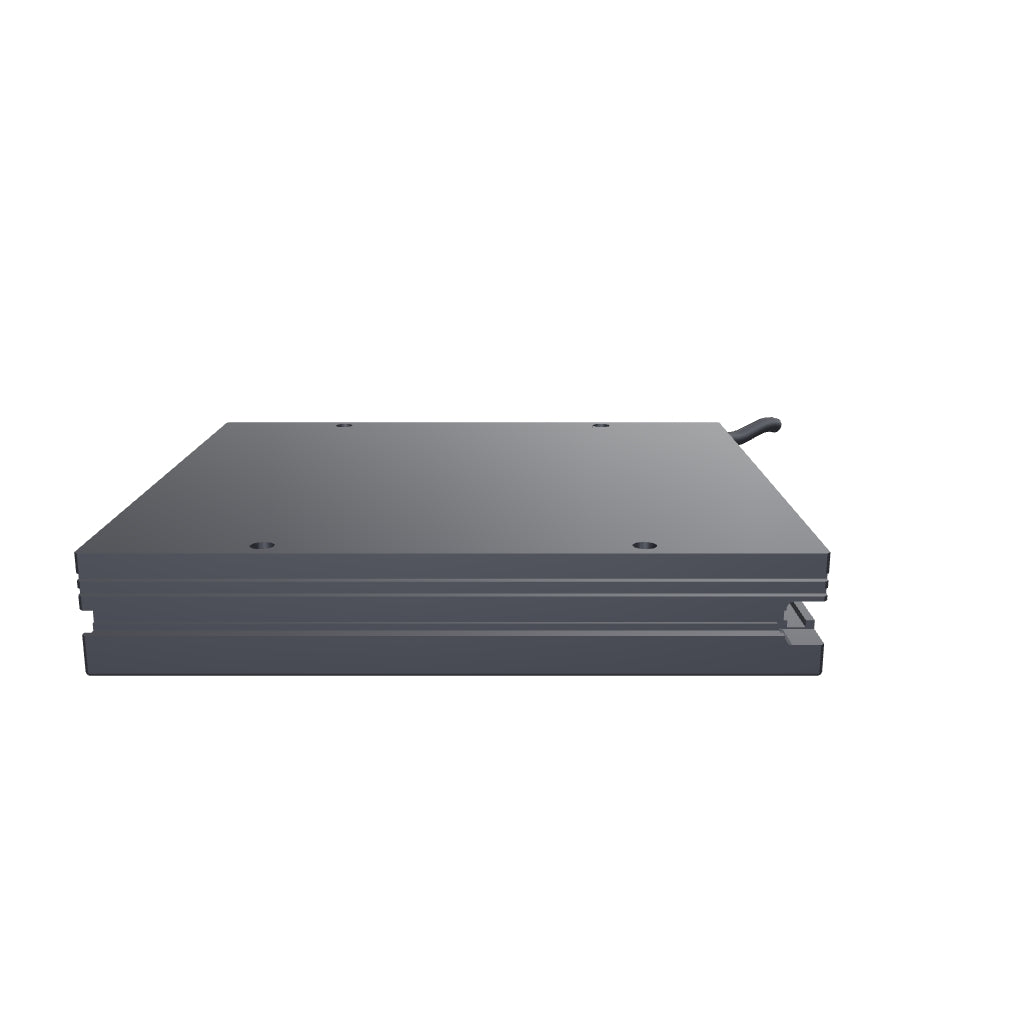

Photo shows a representative model of this series; see the specifications for this model.

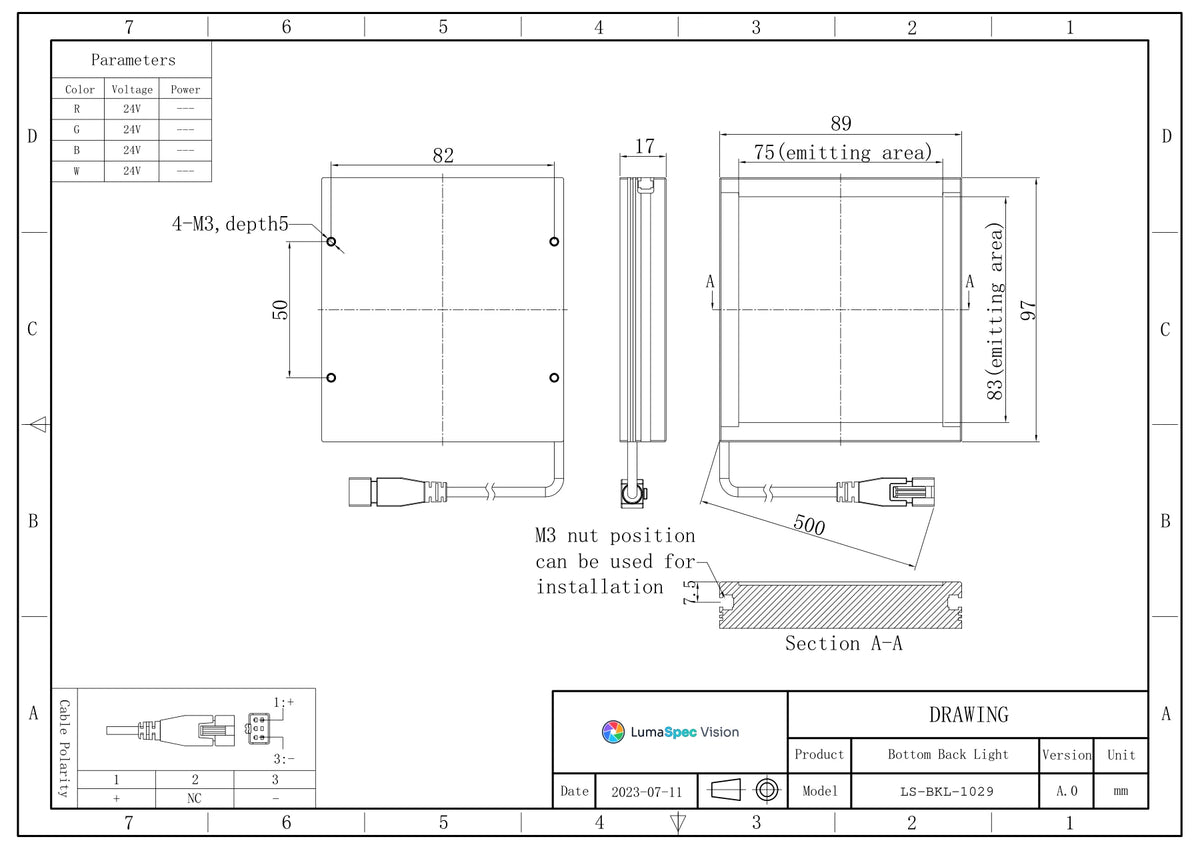

Mounting and drawing data
drawing table: C=82, D=50 (4-M3 depth-5 mounting hole spacing)
