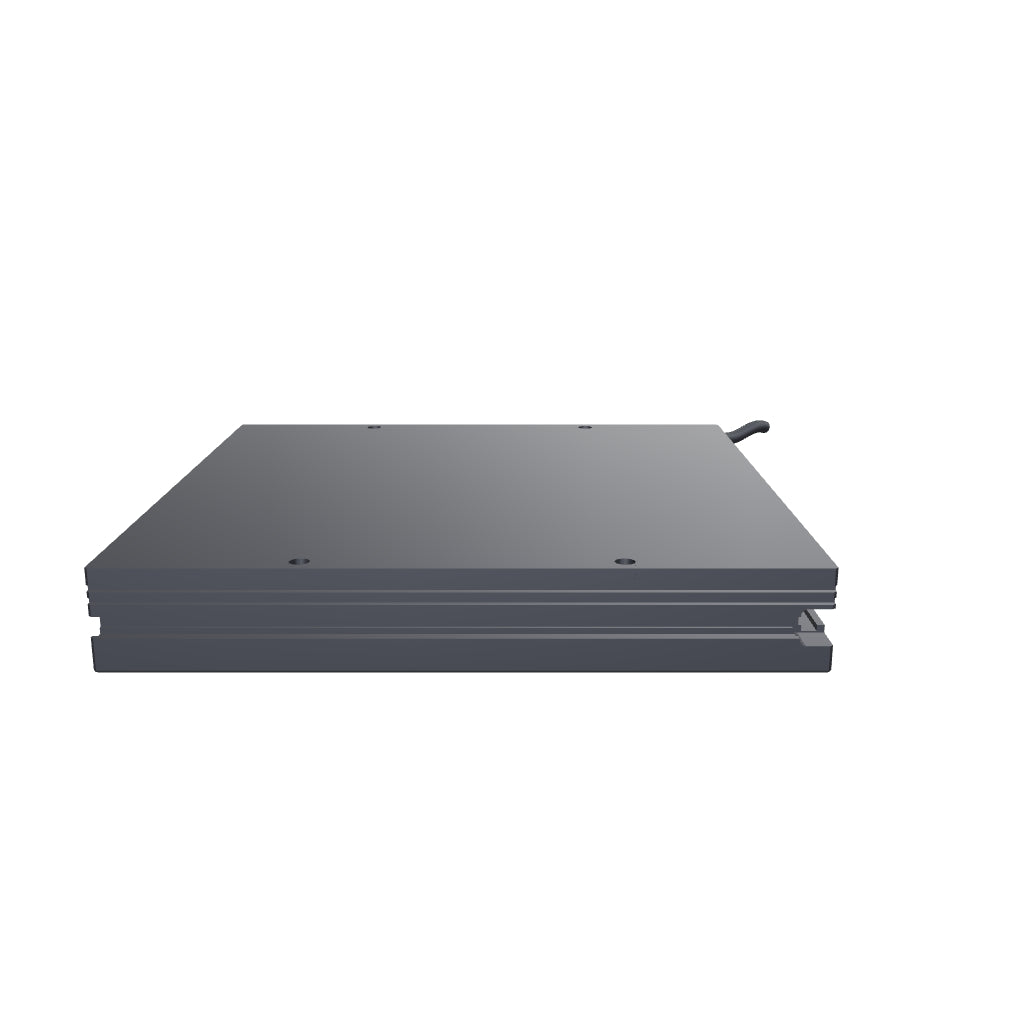

100 x 100 mm Bottom-Lit LED Backlight (LS-BKL-1030)
Model LS-BKL-1030
- ColourRed, Green, Blue, White
- Emitting area100x100 mm
- Size114x114x17 mm
- Voltage24 V
- Power10 W
$279.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.4 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
100 x 100 mm Bottom-Lit LED Backlight. Bottom-lit LED backlight: a high-brightness LED array under a diffuser plate gives uniform planar illumination for transmissive contour imaging.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1030 |
|---|---|
| Construction (setup diagram) | LED / housing / diffuser plate |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 100x100 |
|---|---|
| Colours | Red, Green, Blue, White |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 6.6 |
| Power W/B/G (W) | 10 |
Mechanical
| Outer size L x W x H (mm) | 114x114x17 |
|---|---|
| Mounting | 4-M3 depth 5 on back; M3 nut slot in side profile |
| Thickness (mm) | 17 |
| Shipping weight (estimated) | 0.40 kg |

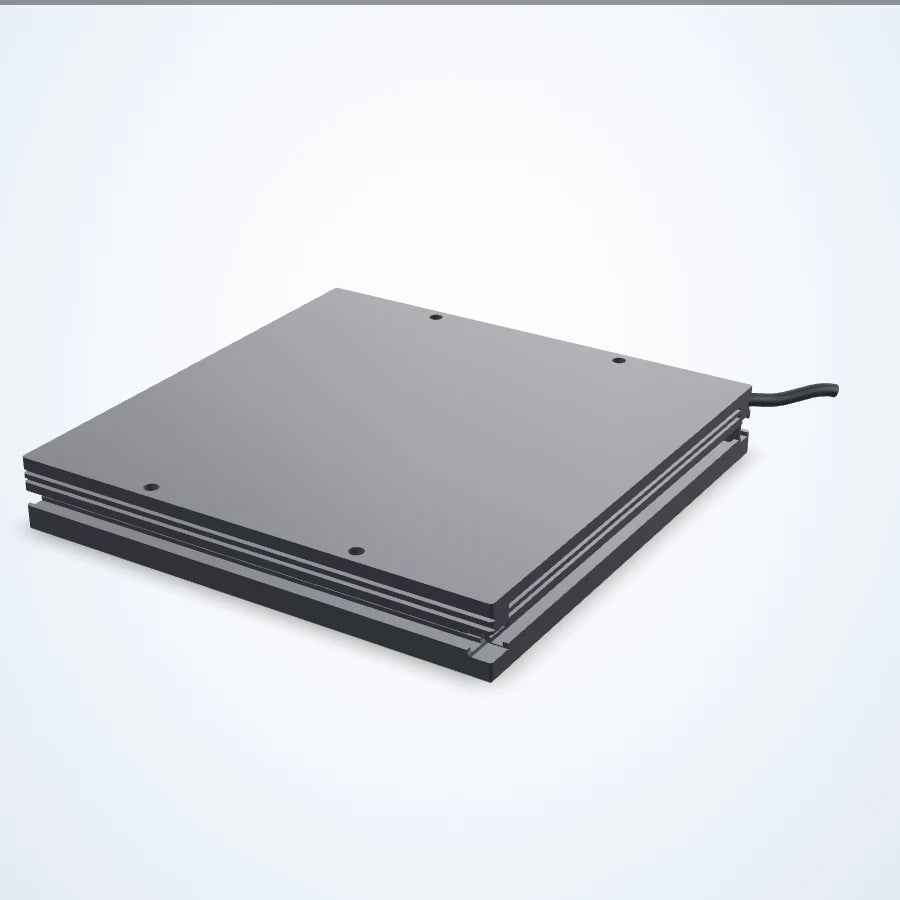

Photo shows a representative model of this series; see the specifications for this model.
Mounting and drawing data

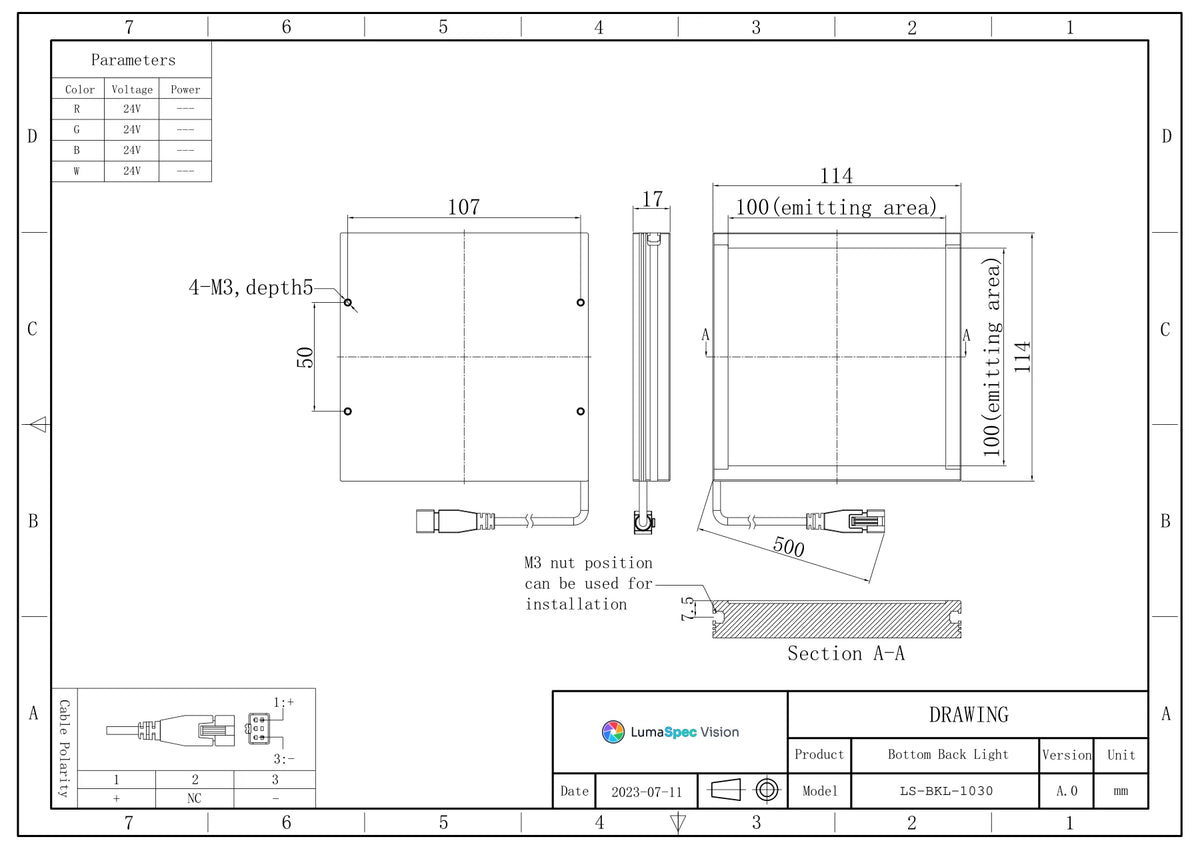

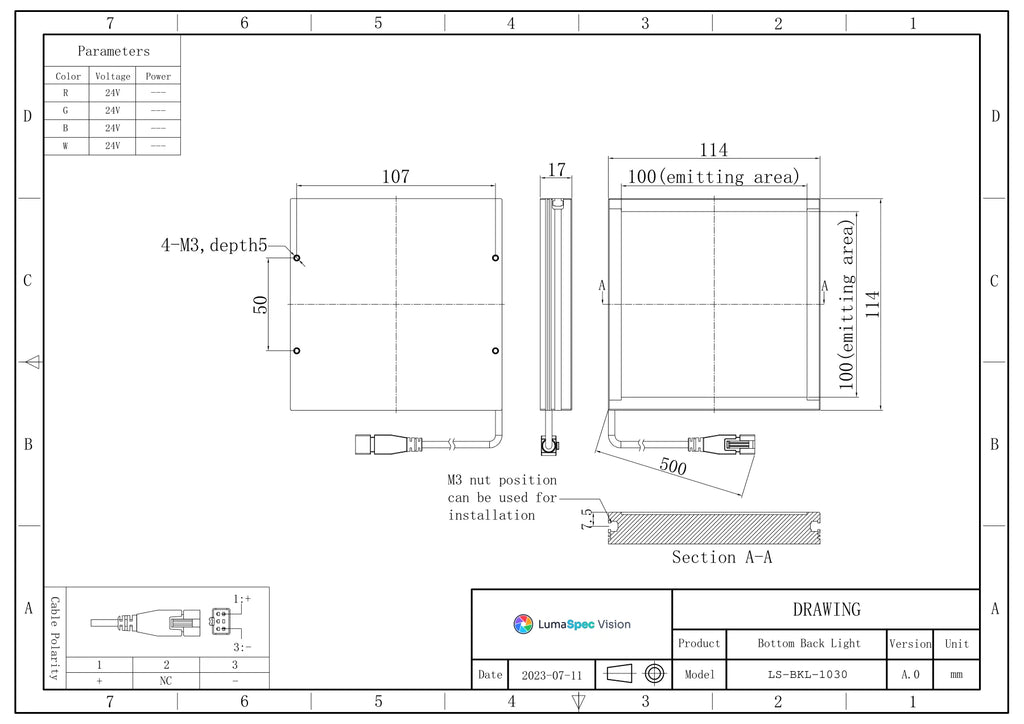

drawing table: C=107, D=50 (4-M3 depth-5 mounting hole spacing)
