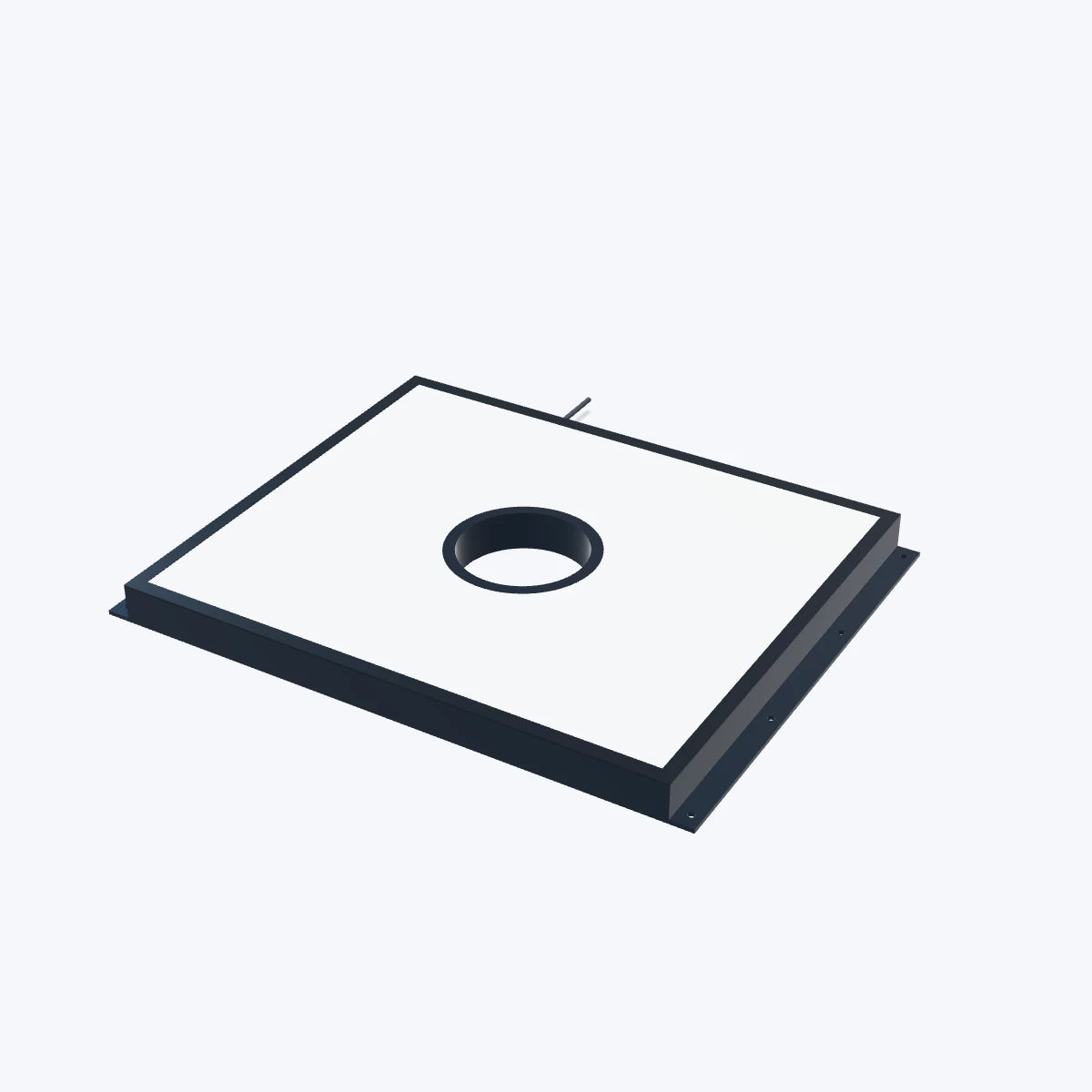

Drawing-based illustration. Housing, emitting area and clear openings follow this model's own dimensioned drawing; rounded corners, small surface details, cable placement, finish and light colour are representative.
Backlights
Ring back light, 286 x 224 x 19 mm (LS-BKL-1008)
Model LS-BKL-1008
- ColourRed, Blue, Green, White
- Emitting area250 x 210 mm
- SizeL286xW224xH19(mm)
- Voltage24V
- Power31.7W/46.0W
$479.00
Ships in 2-3 weeks
1.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High-density LED distribute to the bottom of the light. High uniformity, high luminance. Diverse dimension for reference, used to various applications.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1008 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|---|

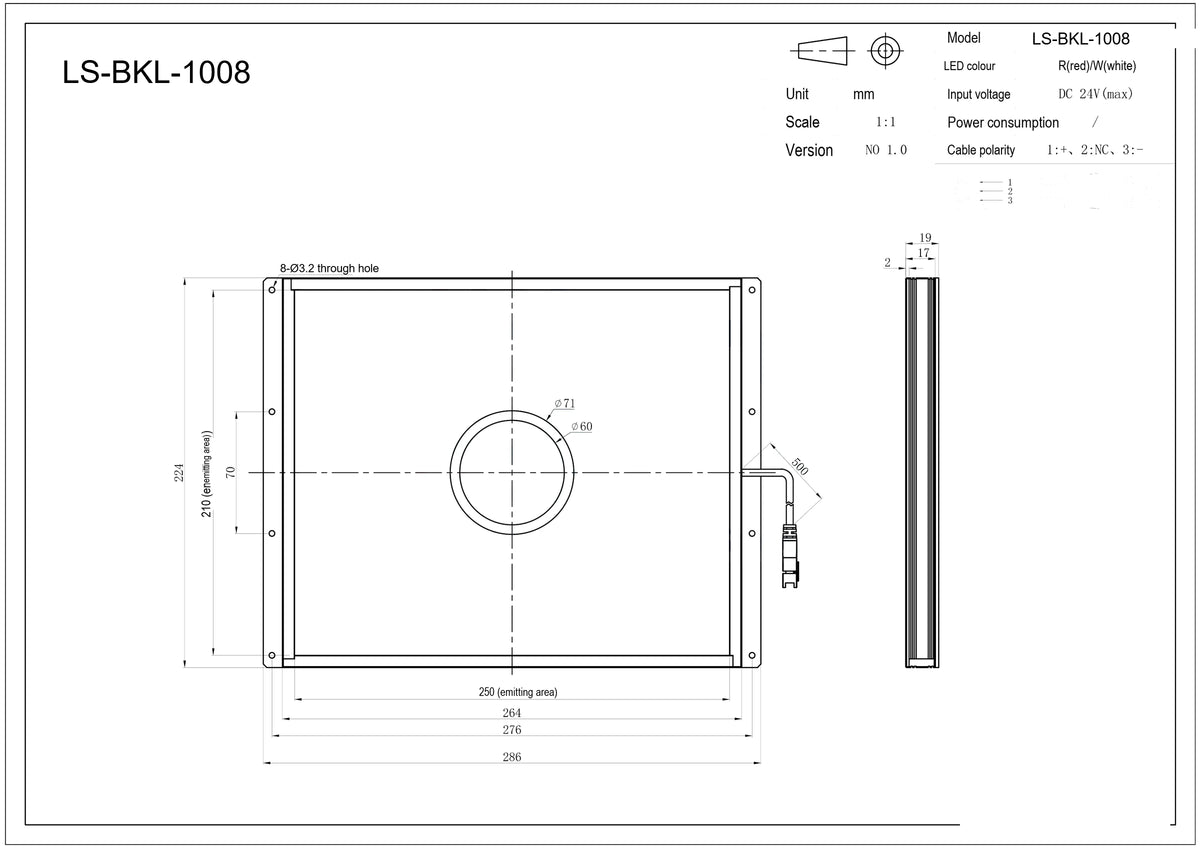

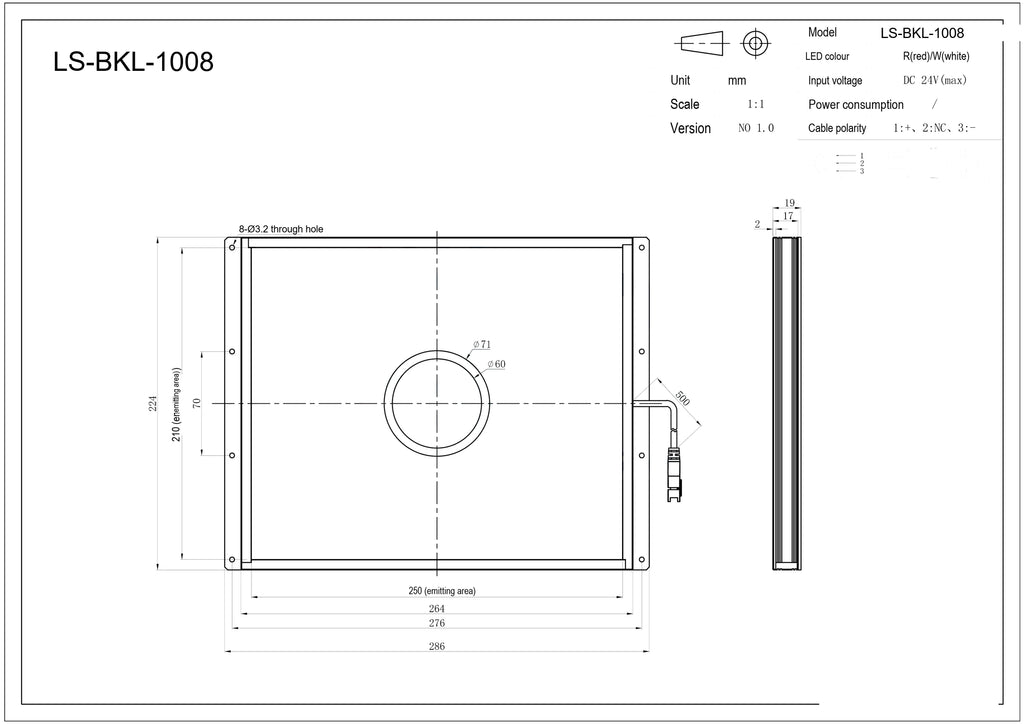

| Cable (mm) | 500 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 250 x 210 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 31.7W/46.0W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L286xW224xH19(mm) |
|---|---|
| Shipping weight | 1.50 kg |
