Ring back light (LS-BKL-S99)
  • Ring back light (LS-BKL-S99)

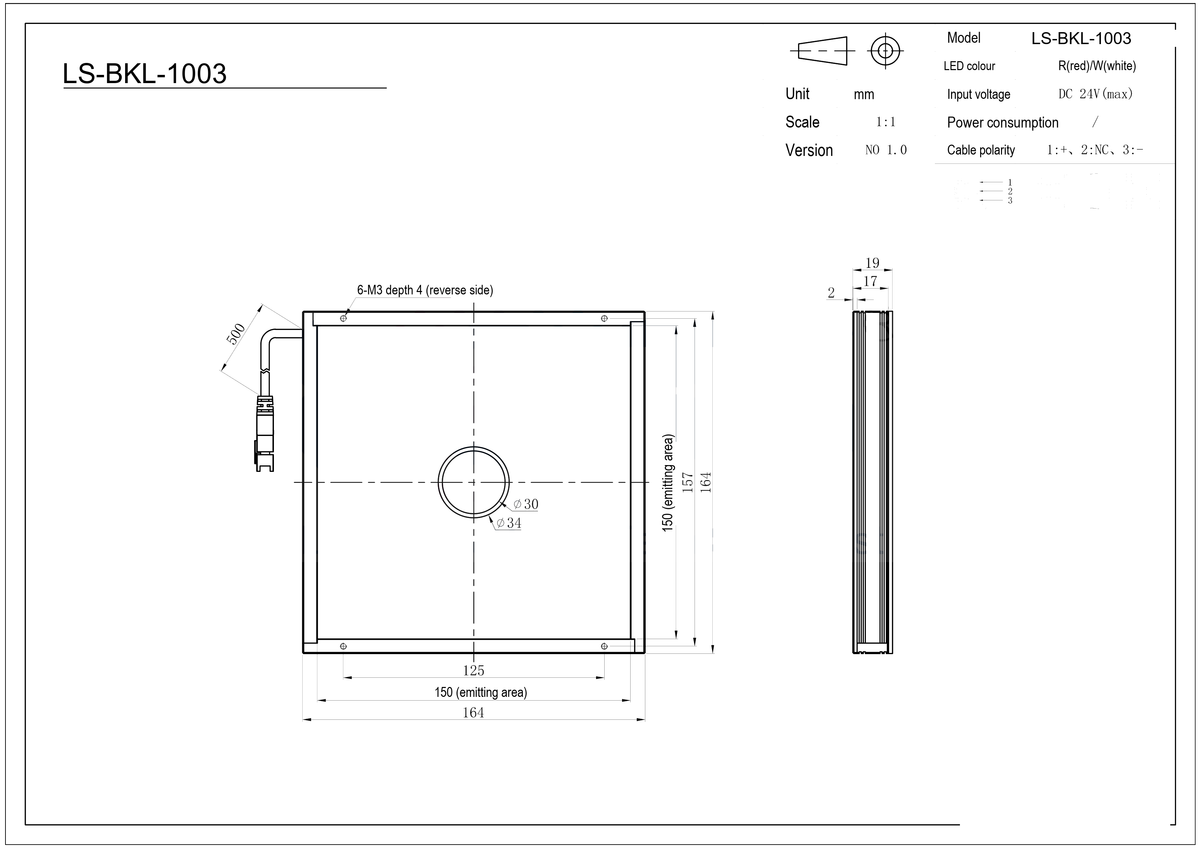

  • LS-BKL-1003 dimensions (mm)

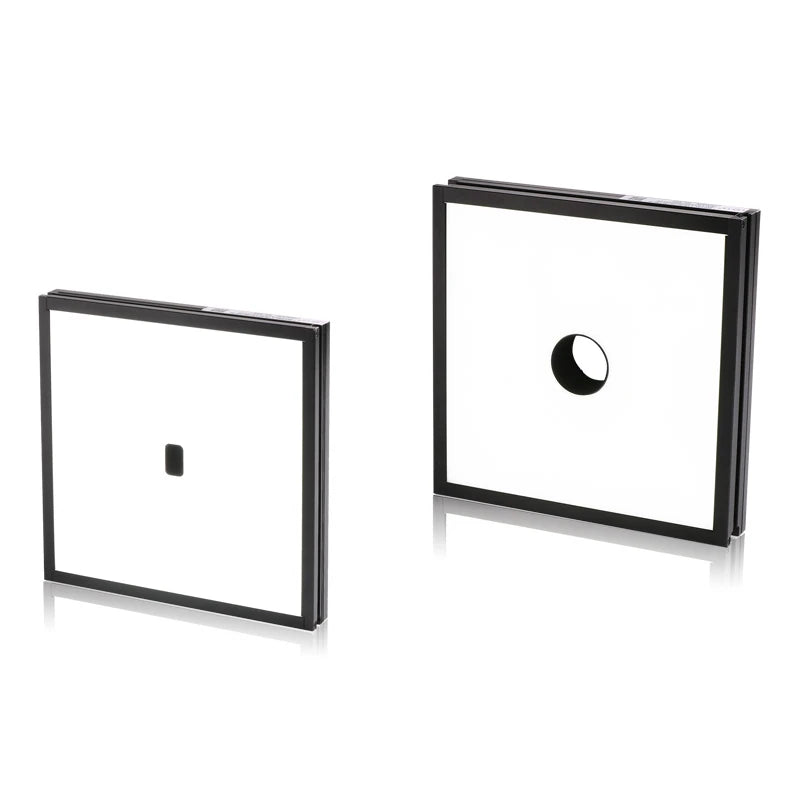

Representative photo of this series

Backlights

Ring back light, 164 x 164 x 19 mm (LS-BKL-1003)

Model LS-BKL-1003

  • ColourRed, Blue, Green, White
  • Emitting area150 x 150 mm
  • SizeL164xW164xH19(mm)
  • Voltage24V
  • Power15.9W/20.6W
$269.00

Ships in 2-3 weeks

0.75 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Ring back light, 164 x 164 x 19 mm (LS-BKL-1003)LS-BKL-1003

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

High-density LED distribute to the bottom of the light. High uniformity, high luminance. Diverse dimension for reference, used to various applications.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1003
NoteUV & IR light can be customized as required.

Interfaces and I/O

Cable polarity1: +, 2: NC, 3: -

Light

LED colourR(red)/W(white)
Emitting surface (mm)150 x 150

Electrical

Voltage24V
Power15.9W/20.6W
Input voltageDC 24V (max)

Mechanical

DimensionL164xW164xH19(mm)
Mounting holes6-M3 depth 4 (reverse side)
Shipping weight0.75 kg

Other models in the Ring back light (LS-BKL-S99) series

See all 10 models
ModelSize / key dataPriceAvailabilityLink
LS-BKL-1001 Red, Blue, Green, White · 120 x 120 mm $219.00 Ships in 2-3 weeks View
LS-BKL-1002 Red, Blue, Green, White · 141 x 141 mm $249.00 Ships in 2-3 weeks View
LS-BKL-1006 Red, Blue, Green, White · 200 x 100 mm $249.00 Ships in 2-3 weeks View
LS-BKL-1004 Red, Blue, Green, White · 170 x 170 mm $309.00 Ships in 2-3 weeks View
LS-BKL-1005 Red, Blue, Green, White · 180 x 180 mm $329.00 Ships in 2-3 weeks View
LS-BKL-1007 Red, Blue, Green, White · 200 x 200 mm $379.00 Ships in 2-3 weeks View
LS-BKL-1008 Red, Blue, Green, White · 250 x 210 mm $479.00 Ships in 2-3 weeks View
LS-BKL-1009 Red, Blue, Green, White · 300 mm $499.00 Ships in 2-3 weeks View
LS-BKL-1010 Red, Blue, Green, White · 400 x 300 mm $829.00 Ships in 2-3 weeks View
