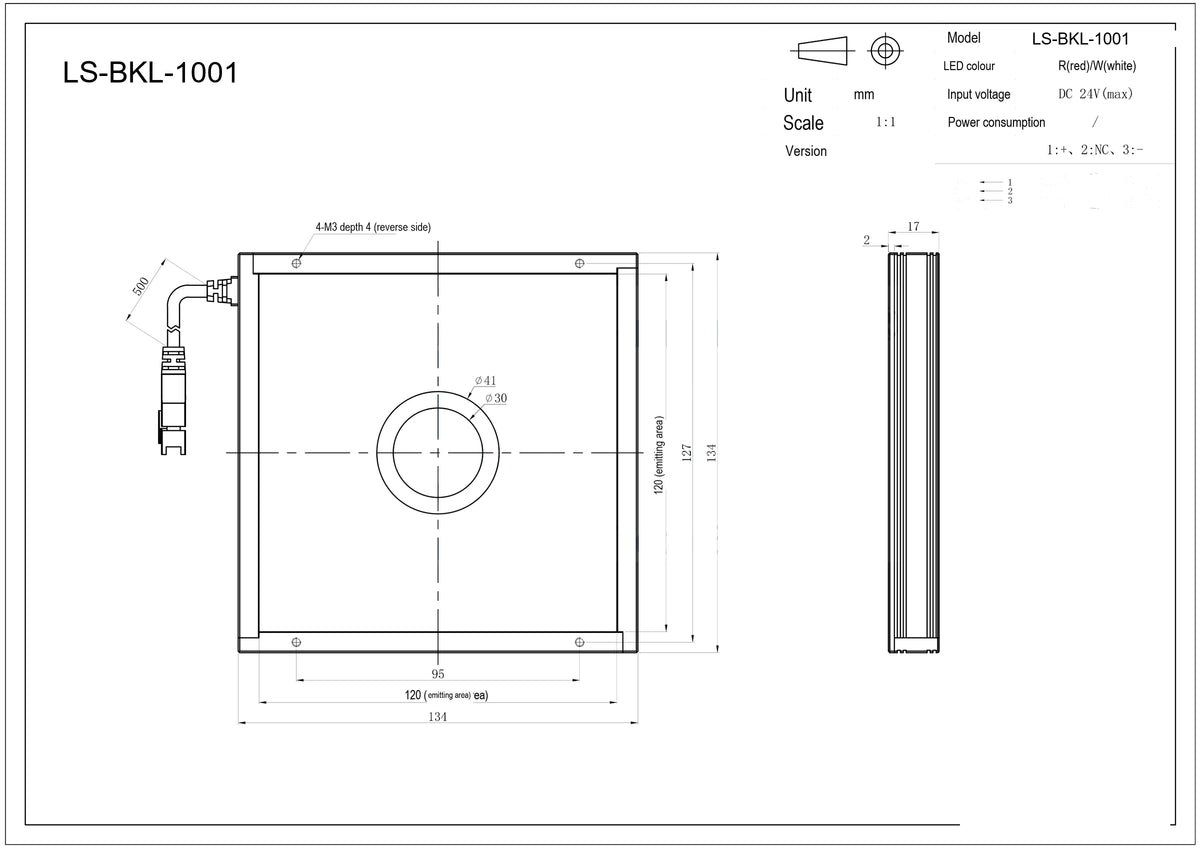

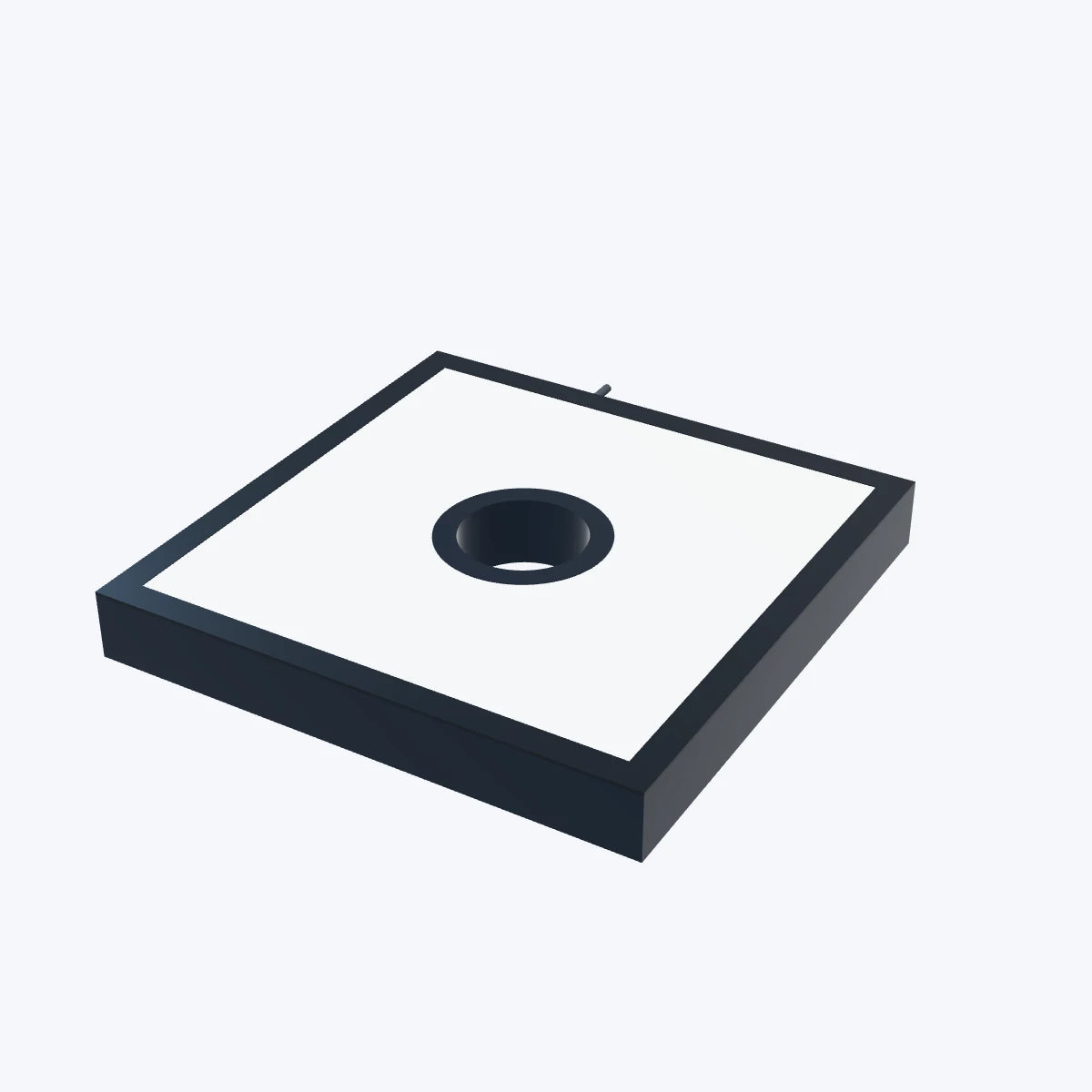

Drawing-based illustration. Housing, emitting area and clear openings follow this model's own dimensioned drawing; rounded corners, small surface details, cable placement, finish and light colour are representative.
Backlights
Ring back light, 134 x 134 x 17 mm (LS-BKL-1001)
Model LS-BKL-1001
- ColourRed, Blue, Green, White
- Emitting area120 x 120 mm
- SizeL134xW134xH17(mm)
- Voltage24V
- Power9.6W/12.2W
$219.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High-density LED distribute to the bottom of the light. High uniformity, high luminance. Diverse dimension for reference, used to various applications.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1001 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 120 x 120 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 9.6W/12.2W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L134xW134xH17(mm) |
|---|---|
| Mounting holes | 4-M3 depth 4 (reverse side) |
| Shipping weight | 0.50 kg |
Other models in the Ring back light (LS-BKL-S99) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-1002 | Red, Blue, Green, White · 141 x 141 mm | $249.00 | Ships in 2-3 weeks | View |
| LS-BKL-1006 | Red, Blue, Green, White · 200 x 100 mm | $249.00 | Ships in 2-3 weeks | View |
| LS-BKL-1003 | Red, Blue, Green, White · 150 x 150 mm | $269.00 | Ships in 2-3 weeks | View |
| LS-BKL-1004 | Red, Blue, Green, White · 170 x 170 mm | $309.00 | Ships in 2-3 weeks | View |
| LS-BKL-1005 | Red, Blue, Green, White · 180 x 180 mm | $329.00 | Ships in 2-3 weeks | View |
| LS-BKL-1007 | Red, Blue, Green, White · 200 x 200 mm | $379.00 | Ships in 2-3 weeks | View |
| LS-BKL-1008 | Red, Blue, Green, White · 250 x 210 mm | $479.00 | Ships in 2-3 weeks | View |
| LS-BKL-1009 | Red, Blue, Green, White · 300 x 200 mm | $499.00 | Ships in 2-3 weeks | View |
| LS-BKL-1010 | Red, Blue, Green, White · 400 x 300 mm | $829.00 | Ships in 2-3 weeks | View |
