300 x 60 mm High luminance back light (LS-BKL-0756)
  • 300 x 60 mm High luminance back light (LS-BKL-0756)

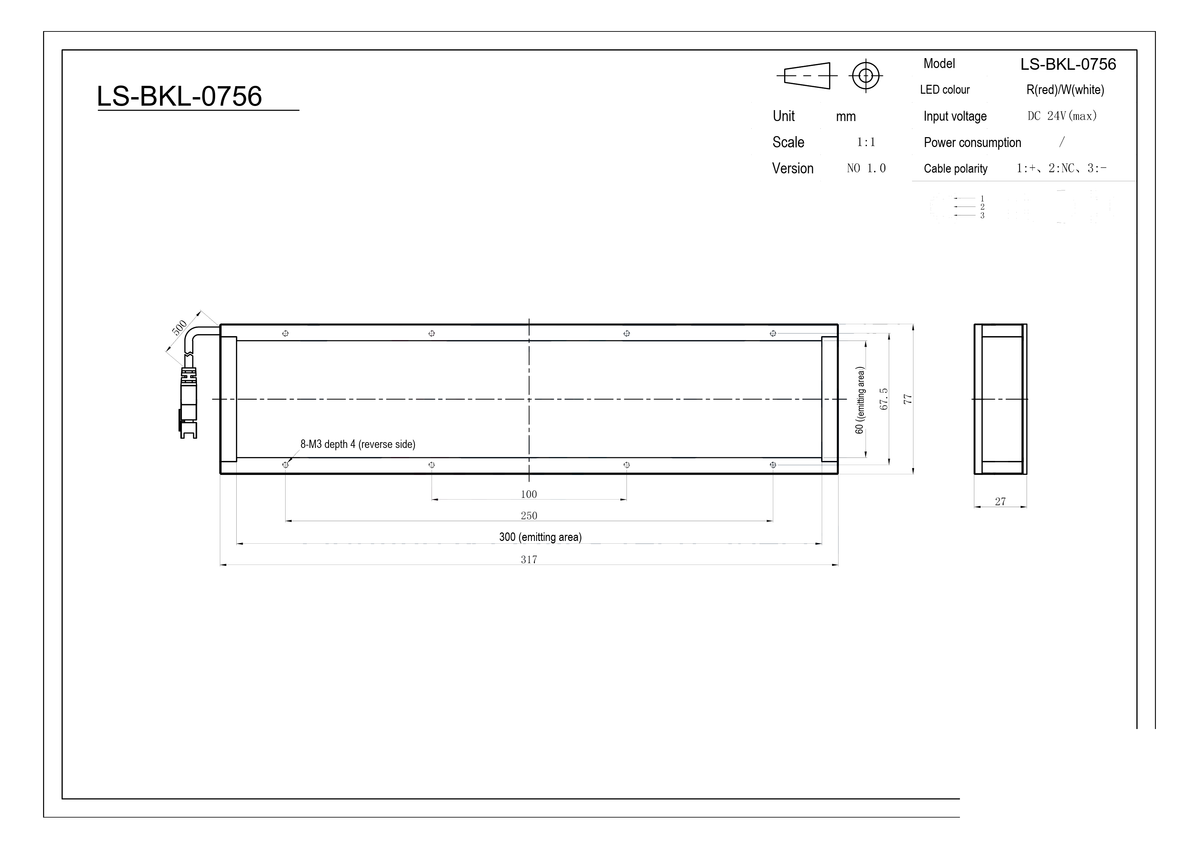

  • LS-BKL-0756 dimensions (mm)

Representative photo of this series

Backlights

300 x 60 mm High luminance back light (LS-BKL-0756)

Model LS-BKL-0756-R

  • ColourRed, Green, Blue, White
  • Emitting area30 mm x 30 mm
  • Voltage24 V
  • TypeStandard
$349.00

Ships in 2-3 weeks

0.7 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

300 x 60 mm High luminance back light (LS-BKL-0756)LS-BKL-0756-R

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-BKL-0756: min. emitting area 30 mm x 30 mm, power R 11.5 W, recommended working distance 1-100 mm.

Compact back light using imported ultrathin surface-mount LEDs for high luminance and uniformity, in a precision-moulded shell that keeps batches consistent, with multiple installation methods. Luminous surfaces range from 30x30 to 500x500 mm; square and rectangular sizes can be customized.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-0756
Customizableviewport, length and width, multi-area control, colour and colour temperature, cable length, installation method
OptionPolarizing film
FOV1~600 mm

Optics

Recommended working distance1~100 mm

Interfaces and I/O

Cable (mm)500 (drawings)
Extension cable optionsPVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines)

Light

Min. emitting area30 mm x 30 mm
Max. emitting area620 mm x 427 mm
Colours (overview)red / green / blue / white
Colour temperature of white6600K
Custom wavelengthsUV & IR light can be customized as required
Emitting surface (mm)300 x 60

Environment and compliance

Operating temperature0 to 50 °C
Operating humidity20-85% (non-condensing)
Lifespan50000 h (to 50% of factory-default luminance)

Electrical

Voltage24 V
Adapted controllerAnalog controller, digital controller, high power controller
Power, R (W)11.5
Power, G/B/W (W)17.3

Mechanical

Weight (g)450

Engineering data

Drive and fit the LS-BKL-0756

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Current at 24 V721 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 17.3 W
Emitting area30 × 30 mmKeep the camera's field of view inside it for an even background.
Operating temperature0 to 50 °C
Cable length500 mmdrawings

Mounting and installation

Cable0.5 m

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Controllers for this light

20 W per channel at 24 V for this 17.3 W light

24 W per channel at 24 V for this 17.3 W light

30 W per channel at 24 V for this 17.3 W light

24 W per channel at 24 V for this 17.3 W light

24 W per channel at 24 V for this 17.3 W light

21.9 W per channel at 24 V for this 17.3 W light

Other models in the High luminance back light (LS-BKL-S83) series

See all 40 models
ModelSizePriceAvailabilityLink
LS-BKL-0756This model300 x 60 mm$349.00 Ships in 2-3 weeks
LS-BKL-0739110 x 75 mm$259.00 Ships in 2-3 weeks View
LS-BKL-0741150 x 50 mm$259.00 Ships in 2-3 weeks View
LS-BKL-0754206 x 41 mm$259.00 Ships in 2-3 weeks View
LS-BKL-0743100 x 100 mm$279.00 Ships in 2-3 weeks View
LS-BKL-0753200 x 60 mm$289.00 Ships in 2-3 weeks View
LS-BKL-0744120 x 120 mm$309.00 Ships in 2-3 weeks View
LS-BKL-0747150 x 100 mm$319.00 Ships in 2-3 weeks View
LS-BKL-0742170 x 90 mm$319.00 Ships in 2-3 weeks View
LS-BKL-0757306 x 41 mm$319.00 Ships in 2-3 weeks View
LS-BKL-0745130 x 130 mm$339.00 Ships in 2-3 weeks View
LS-BKL-0755240 x 70 mm$339.00 Ships in 2-3 weeks View
LS-BKL-0750180 x 100 mm$349.00 Ships in 2-3 weeks View
LS-BKL-0746140 x 140 mm$359.00 Ships in 2-3 weeks View
LS-BKL-0748150 x 150 mm$389.00 Ships in 2-3 weeks View
LS-BKL-0749160 x 160 mm$419.00 Ships in 2-3 weeks View
LS-BKL-0751180 x 140 mm$419.00 Ships in 2-3 weeks View
LS-BKL-0759200 x 150 mm$459.00 Ships in 2-3 weeks View
LS-BKL-0752180 x 180 mm$479.00 Ships in 2-3 weeks View
LS-BKL-0760200 x 200 mm$539.00 Ships in 2-3 weeks View
LS-BKL-0758600 x 60 mm$549.00 Ships in 2-3 weeks View
LS-BKL-0768500 x 100 mm$639.00 Ships in 2-3 weeks View
LS-BKL-0764300 x 200 mm$729.00 Ships in 2-3 weeks View
LS-BKL-0761250 x 250 mm$739.00 Ships in 2-3 weeks View
LS-BKL-0762260 x 260 mm$789.00 Ships in 2-3 weeks View
