Backlight
  • Backlight

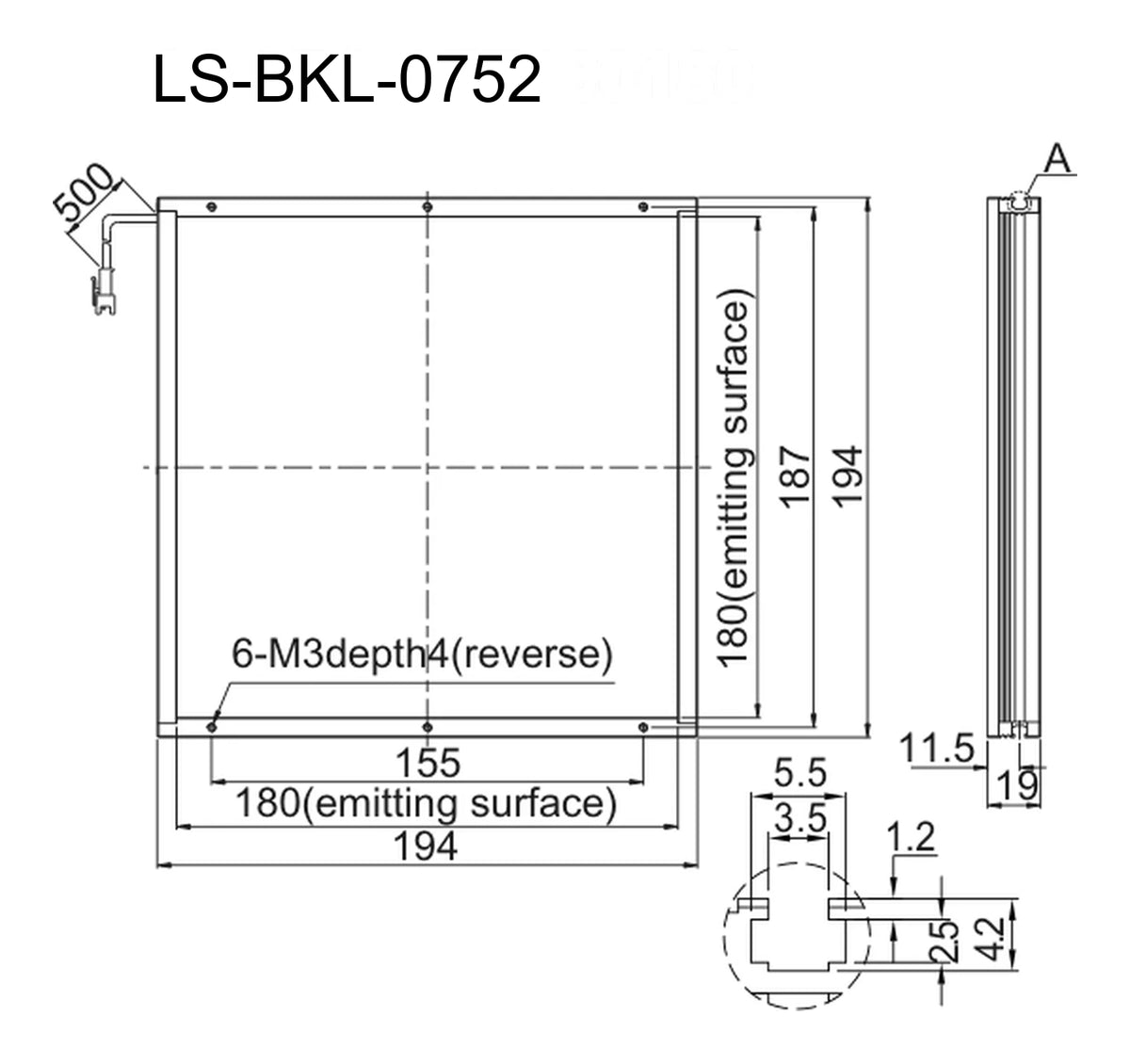

  • LS-BKL-0752 dimensions (mm)

Representative photo of this series

Backlights

180 x 180 mm High luminance back light (LS-BKL-0752)

Model LS-BKL-0752

  • ColourRed, Green, Blue, White
  • Emitting area30mm x 30mm
  • Voltage24 V
  • TypeStandard
$479.00

Ships in 2-3 weeks

1.15 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

180 x 180 mm High luminance back light (LS-BKL-0752)LS-BKL-0752

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Compact back light using imported ultrathin surface-mount LEDs for high luminance and uniformity, in a precision-moulded shell that keeps batches consistent, with multiple installation methods. 2FT luminous surfaces range from 30x30 to 180x180 mm, 3FT from 190x190 to 500x500 mm; square and rectangular sizes can be customized.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-0752
Customizableviewport, length and width, multi-area control, colour and colour temperature, cable length, installation method
OptionPolarizing film
FOV1~600mm

Optics

Recommended working distance1~100mm

Interfaces and I/O

Cable (mm)500 (drawings)
Extension cable optionsPVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines)

Light

Min. emitting area30mm x 30mm
Max. emitting area620mm x 427mm
Colours (overview)red / green / blue / white
Colour temperature of white6600K
Custom wavelengthsUV & IR light can be customized as required
Emitting surface (mm)180 x 180

Environment and compliance

Operating temperature0-50 °C
Operating humidity20-85% (non-condensing)
Lifespan50000 h (to 50% of factory-default luminance)

Electrical

Voltage24 V
Adapted controllerAnalog controller, digital controller, high power controller
Power, R (W)18.7
Power, G/B/W (W)28.1

Mechanical

Weight (g)833
