Backlights
300 x 150 mm Back light, updated version (LS-BKL-0676)
Model LS-BKL-0676
- ColourWhite, Green, Blue, Red
- Emitting area300 x 150 mm
- Voltage24V
- Power51.8 W
$599.00
Ships in 2-3 weeks
1.4 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Back light is distributed LED uniformly at the bottom of the light, and forms a uniform irradiated light on the surface through diffuser. Mainly used for detection of contour size and so on.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0676 |
|---|---|

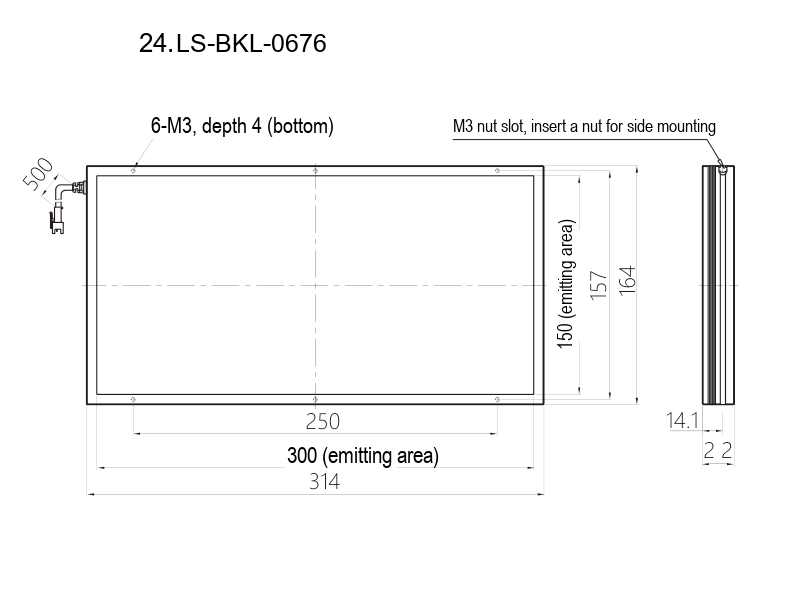

| Outline L x W x H (mm) | 314 x 164 x 22 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|---|
| Connector | anti-pull cable connector |
Light
| Emitting area (mm) | 300 x 150 |
|---|
Electrical
| Voltage | 24V |
|---|---|
| Power W/G/B (W) | 51.8 |
| Power R (W) | 31.1 |
| Matched controller model | LS-CTL-S22 series, LS-CTL-0354-0357 |
Mechanical
| Mounting | M3 threaded holes, depth 4 on the bottom; M3 nut slot in the side frame for side mounting |
|---|---|
| Shipping weight | 1.40 kg |
Other models in the Back light, updated version (LS-BKL-S76) series
See all 18 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0662 | 30 x 30 mm | $199.00 | Ships in 2-3 weeks | View |
| LS-BKL-0663 | 50 x 50 mm | $209.00 | Ships in 2-3 weeks | View |
| LS-BKL-0664 | 70 x 70 mm | $229.00 | Ships in 2-3 weeks | View |
| LS-BKL-0665 | 80 x 80 mm | $249.00 | Ships in 2-3 weeks | View |
| LS-BKL-0666 | 110 x 60 mm | $249.00 | Ships in 2-3 weeks | View |
| LS-BKL-0667 | 100 x 100 mm | $279.00 | Ships in 2-3 weeks | View |
| LS-BKL-0668 | 120 x 120 mm | $309.00 | Ships in 2-3 weeks | View |
| LS-BKL-0669 | 150 x 150 mm | $389.00 | Ships in 2-3 weeks | View |
| LS-BKL-0670 | 200 x 120 mm | $399.00 | Ships in 2-3 weeks | View |
| LS-BKL-0671 | 200 x 150 mm | $459.00 | Ships in 2-3 weeks | View |
| LS-BKL-0674 | 250 x 150 mm | $529.00 | Ships in 2-3 weeks | View |
| LS-BKL-0672 | 200 x 200 mm | $549.00 | Ships in 2-3 weeks | View |
| LS-BKL-0673 | 220 x 220 mm | $619.00 | Ships in 2-3 weeks | View |
| LS-BKL-0675 | 280 x 280 mm | $869.00 | Ships in 2-3 weeks | View |
| LS-BKL-0677 | 300 x 300 mm | $959.00 | Ships in 2-3 weeks | View |
| LS-BKL-0679 | 400 x 400 mm | $1,049.00 | Ships in 2-3 weeks | View |
| LS-BKL-0678 | 400 x 300 mm | $1,189.00 | Ships in 2-3 weeks | View |
