Representative photo of this series. Colour shown for illustration; the actual product may differ
Backlights
220 x 220 mm Back light, updated version (LS-BKL-0673)
Model LS-BKL-0673
- ColourWhite, Green, Blue, Red
- Emitting area220 x 220 mm
- Voltage24V
- Power50.7 W
$619.00
In stock - ships the same business day (3 available, order by 2 PM ET)
1.45 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Back light is distributed LED uniformly at the bottom of the light, and forms a uniform irradiated light on the surface through diffuser. Mainly used for detection of contour size and so on.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0673 |
|---|---|

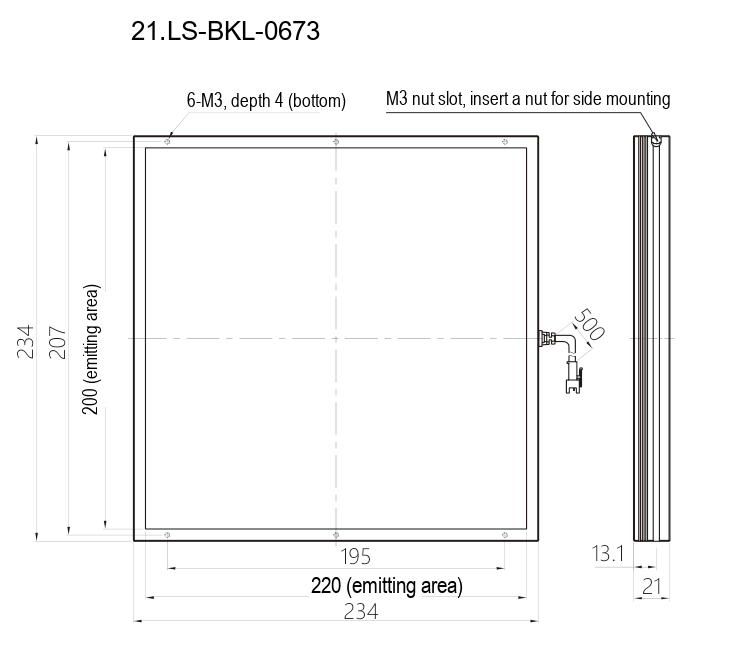

| Outline L x W x H (mm) | 234 x 234 x 21 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|---|
| Connector | anti-pull cable connector |
Light
| Emitting area (mm) | 220 x 220 |
|---|
Electrical
| Voltage | 24V |
|---|---|
| Power W/G/B (W) | 50.7 |
| Power R (W) | 27.6 |
| Matched controller model | LS-CTL-S22 series, LS-CTL-0350-0353, LS-CTL-0327, LS-CTL-0328, LS-CTL-0364, LS-CTL-0365 |
Mechanical
| Mounting | M3 threaded holes, depth 4 on the bottom; M3 nut slot in the side frame for side mounting |
|---|---|
| Shipping weight | 1.45 kg |
