Representative photo of this series. Colour shown for illustration; the actual product may differ
Backlights
70 x 70 mm Back light, updated version (LS-BKL-0664)
Model LS-BKL-0664
- ColourWhite, Green, Blue, Red
- Emitting area70 x 70 mm
- Voltage24V
- Power6.3 W
$229.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Back light is distributed LED uniformly at the bottom of the light, and forms a uniform irradiated light on the surface through diffuser. Mainly used for detection of contour size and so on.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0664 |
|---|---|

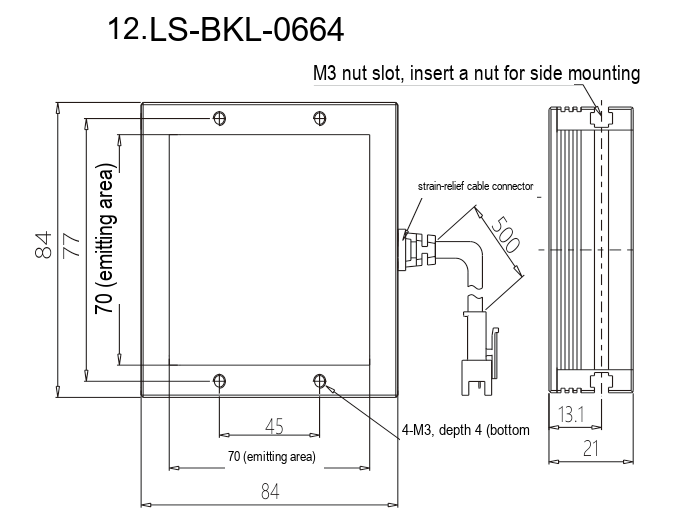

| Outline L x W x H (mm) | 84 x 84 x 21 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|---|
| Connector | anti-pull cable connector |
Light
| Emitting area (mm) | 70 x 70 |
|---|
Electrical
| Voltage | 24V |
|---|---|
| Power W/G/B (W) | 6.3 |
| Power R (W) | 4.0 |
Mechanical
| Mounting | M3 threaded holes, depth 4 on the bottom; M3 nut slot in the side frame for side mounting |
|---|---|
| Shipping weight | 0.35 kg |
Other models in the Back light, updated version (LS-BKL-S76) series
See all 18 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0662 | 30 x 30 mm | $199.00 | 15 in stock | View |
| LS-BKL-0663 | 50 x 50 mm | $209.00 | 15 in stock | View |
| LS-BKL-0665 | 80 x 80 mm | $249.00 | 14 in stock | View |
| LS-BKL-0666 | 110 x 60 mm | $249.00 | 12 in stock | View |
| LS-BKL-0667 | 100 x 100 mm | $279.00 | 19 in stock | View |
| LS-BKL-0668 | 120 x 120 mm | $309.00 | 12 in stock | View |
| LS-BKL-0669 | 150 x 150 mm | $389.00 | 15 in stock | View |
| LS-BKL-0670 | 200 x 120 mm | $399.00 | 16 in stock | View |
| LS-BKL-0671 | 200 x 150 mm | $459.00 | 12 in stock | View |
| LS-BKL-0674 | 250 x 150 mm | $529.00 | 12 in stock | View |
| LS-BKL-0672 | 200 x 200 mm | $549.00 | 15 in stock | View |
| LS-BKL-0676 | 300 x 150 mm | $599.00 | 17 in stock | View |
| LS-BKL-0673 | 220 x 220 mm | $619.00 | 17 in stock | View |
| LS-BKL-0675 | 280 x 280 mm | $869.00 | 16 in stock | View |
| LS-BKL-0677 | 300 x 300 mm | $959.00 | 13 in stock | View |
| LS-BKL-0679 | 400 x 400 mm | $1,049.00 | 13 in stock | View |
| LS-BKL-0678 | 400 x 300 mm | $1,189.00 | 16 in stock | View |
