1568 x 668 mm Edge-Lit Through-Hole LED Backlight (LS-BKL-0643)

Model LS-BKL-0643

ColourRed, Green, Blue, White
Emitting area1568x668 mm
Size1600x700x11.5 mm
Voltage24 V
Power151 W

$6,479.00

Ships in 2-3 weeks

14.25 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

1568 x 668 mm Edge-Lit Through-Hole LED Backlight. Edge-lit backlight with a round central through-hole (ΦE), 10-11.5 mm thick, in sizes up to a 1568x668 mm emitting area.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-0643

Interfaces and I/O

Cable length (mm)	500

Light

Emitting area (mm)	1568x668
Colours	Red, Green, Blue, White

Electrical

Voltage (V)	24
Power R (W)	120
Power W/B/G (W)	151

Mechanical

Hole size (mm)	Φ50
Outer size L x W x H (mm)	1600x700x11.5
Thickness (mm)	10.5 on drawing; 10 to 11.5 in parameter table
Mounting	X-M4 through holes, counterbore Φ6 depth 3.2
Shipping weight (estimated)	14.25 kg

Photo shows a representative model of this series; see the specifications for this model.

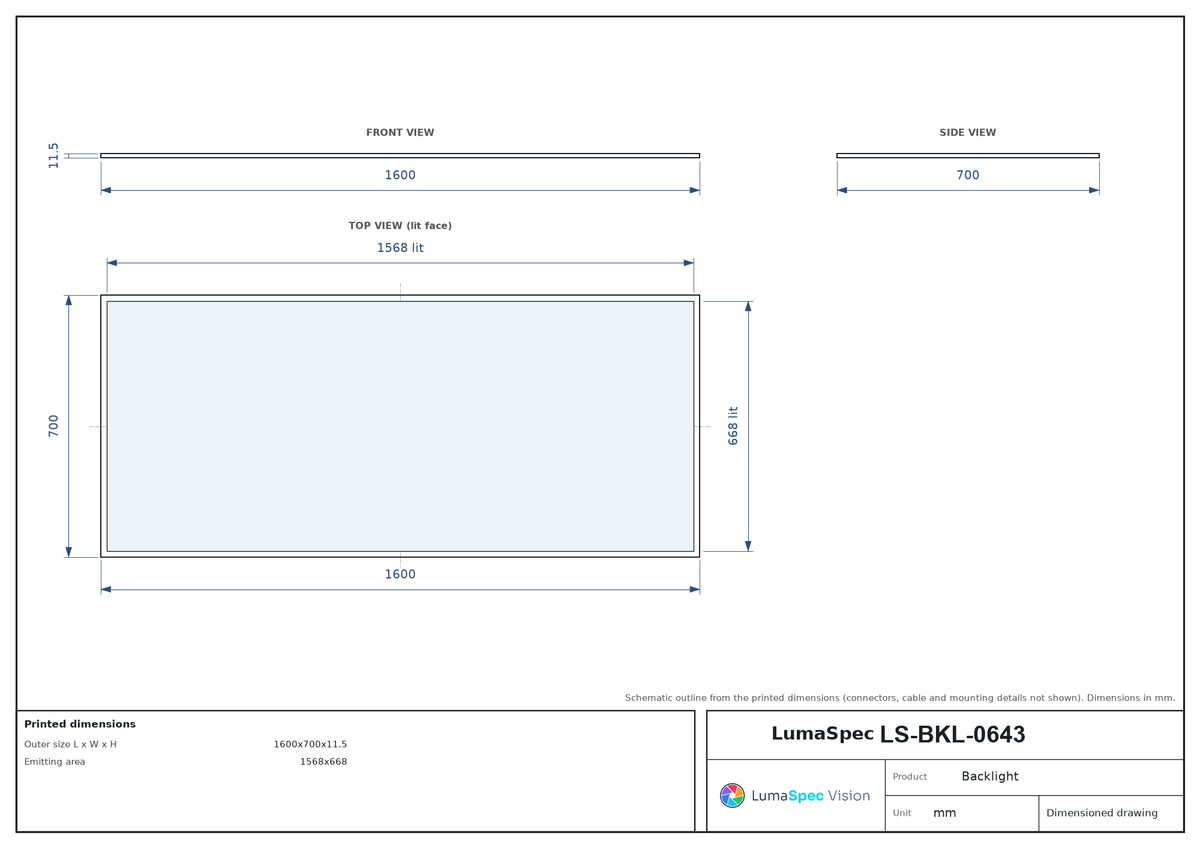

Mounting and drawing data

not listed in drawing table

Downloads

Datasheet (PDF)LS-BKL-0643 · 1022 KB

Features

Ultra-thin design, with customizable hole size, shape, dimension and position.
Achieves uniform illumination over a large area.
High-precision, large-area product size measurement using parallel backlighting.

Applications

Large size product positioning, high uniformity recognition scenarios, various size measurements, transmission-based detection of presence/absence.
PCB board fiducial mark positioning
Keyboard character inspection
Electronic product QR code detection
Chip quantity inspection

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the Flank Back Light with Hole (LS-BKL-S74) series

See all 14 models
