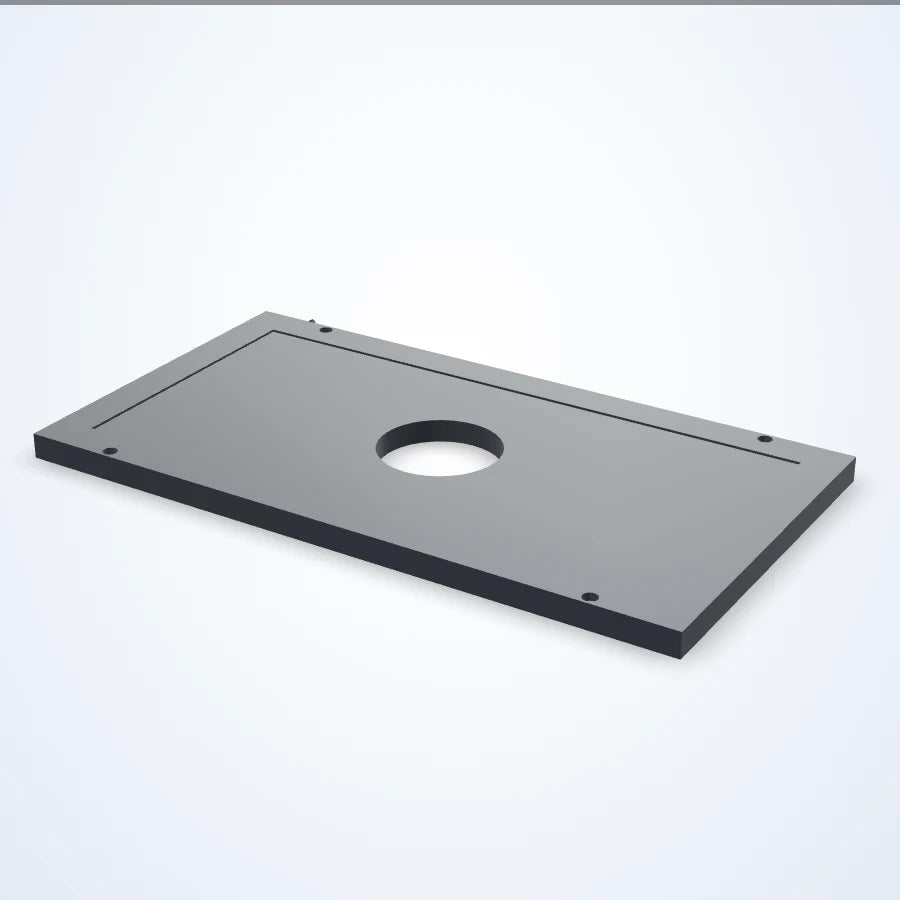

  • LS-BKL-0632 3D render

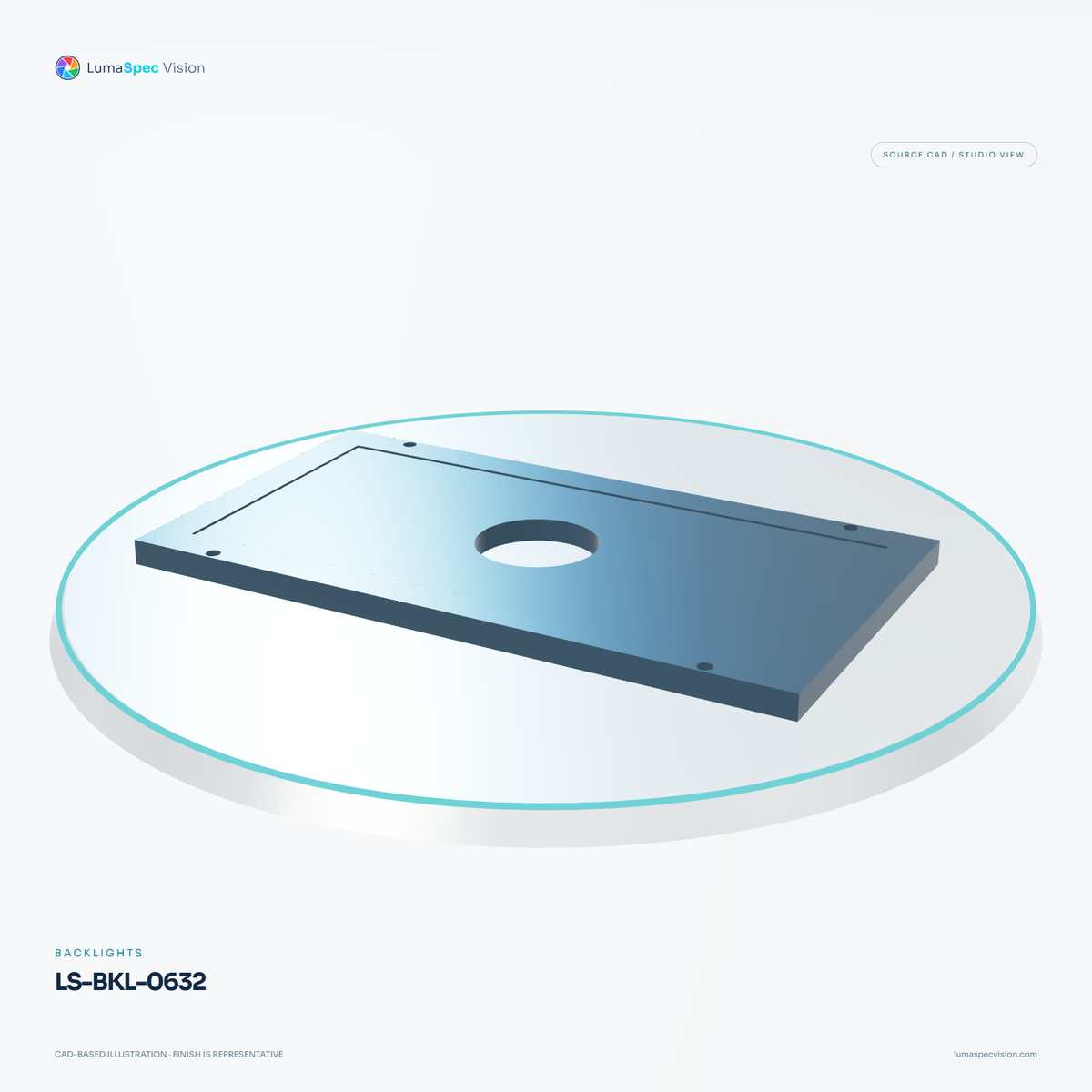

  • LS-BKL-0632 — Backlights, 3D view 1. CAD-based illustration; finish is representative.

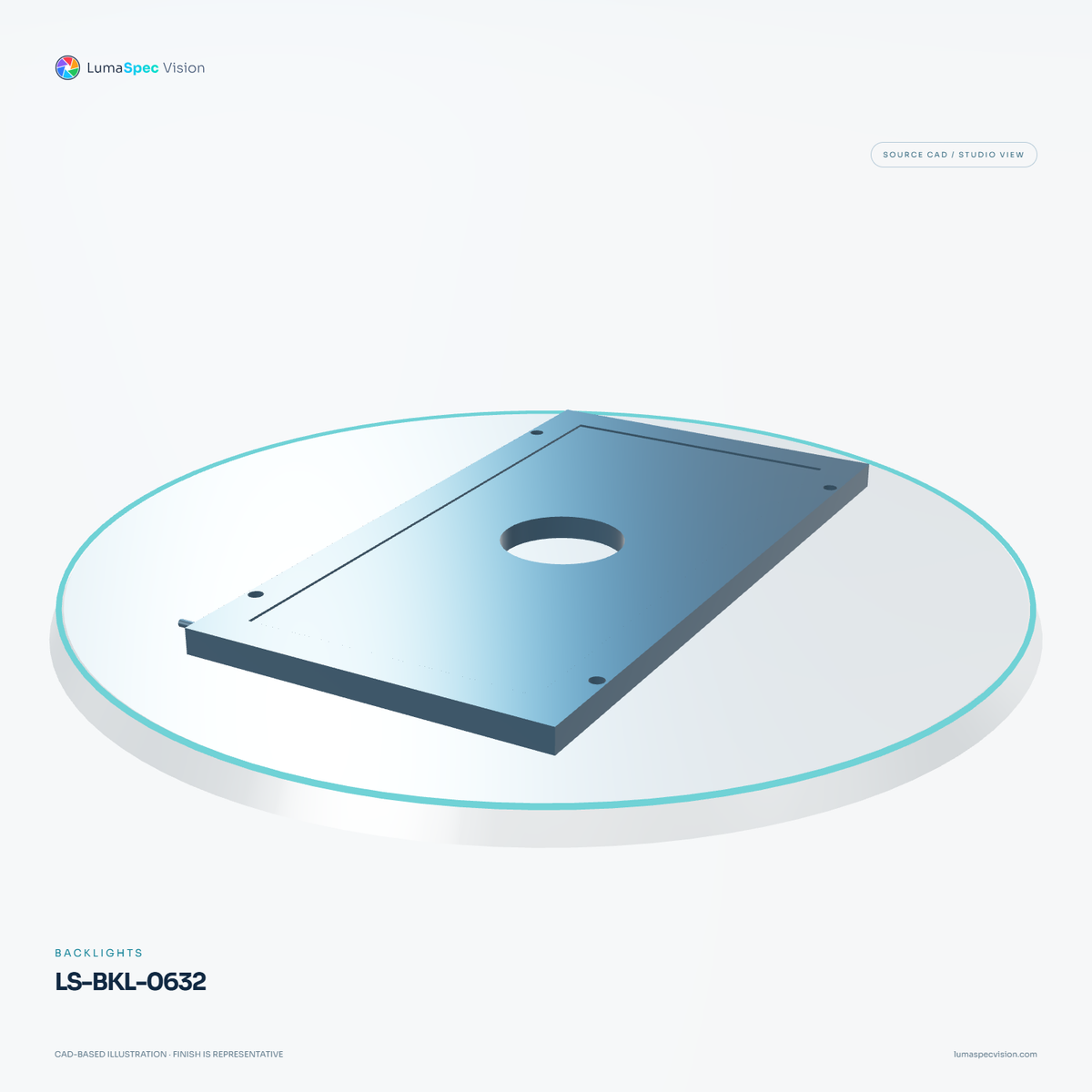

  • LS-BKL-0632 — Backlights, 3D view 2. CAD-based illustration; finish is representative.

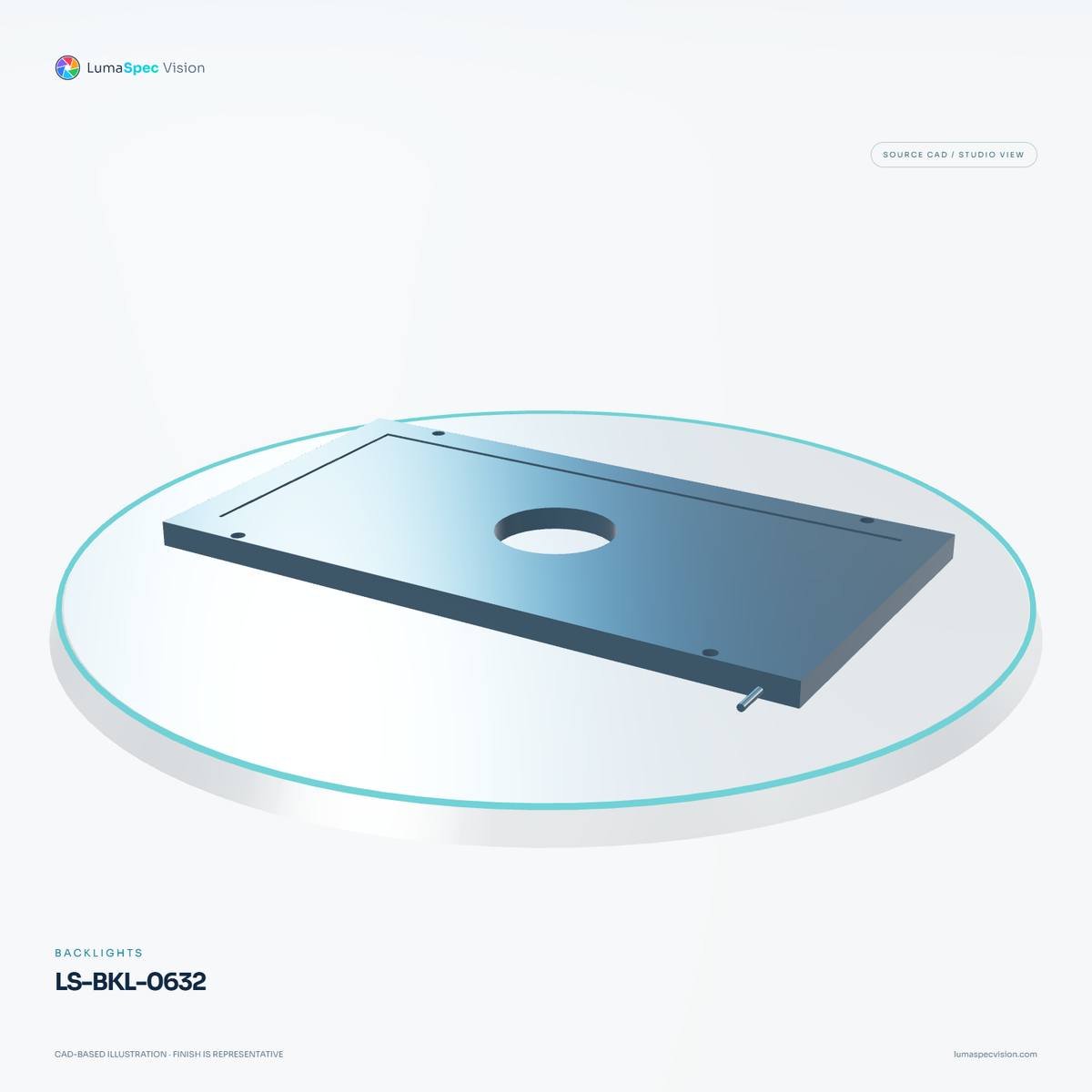

  • LS-BKL-0632 — Backlights, 3D view 3. CAD-based illustration; finish is representative.

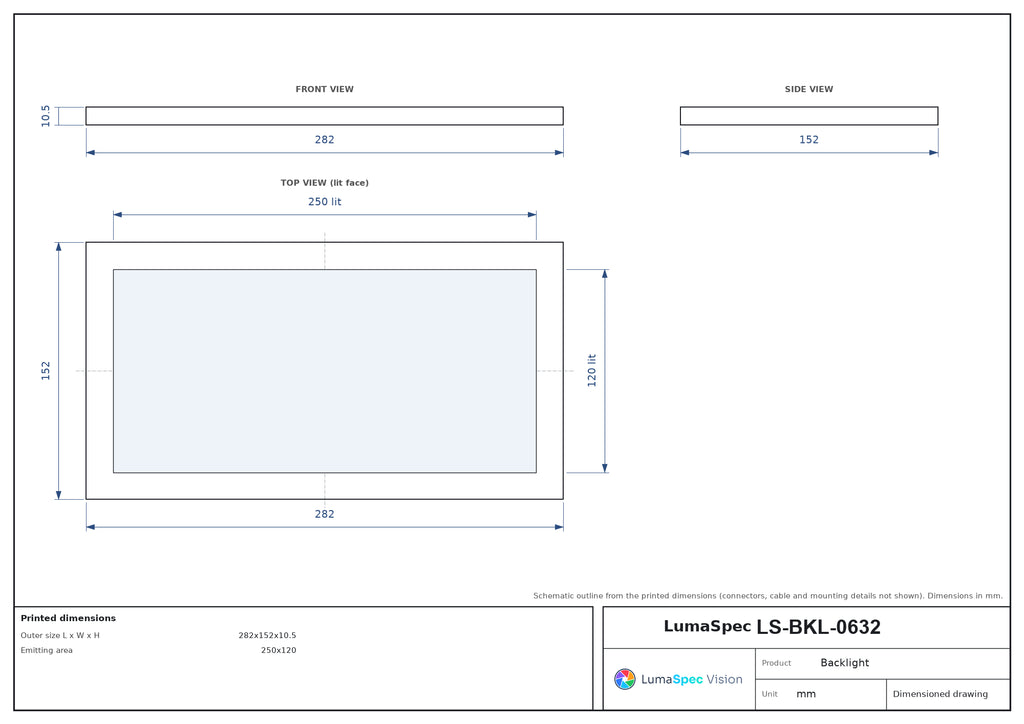

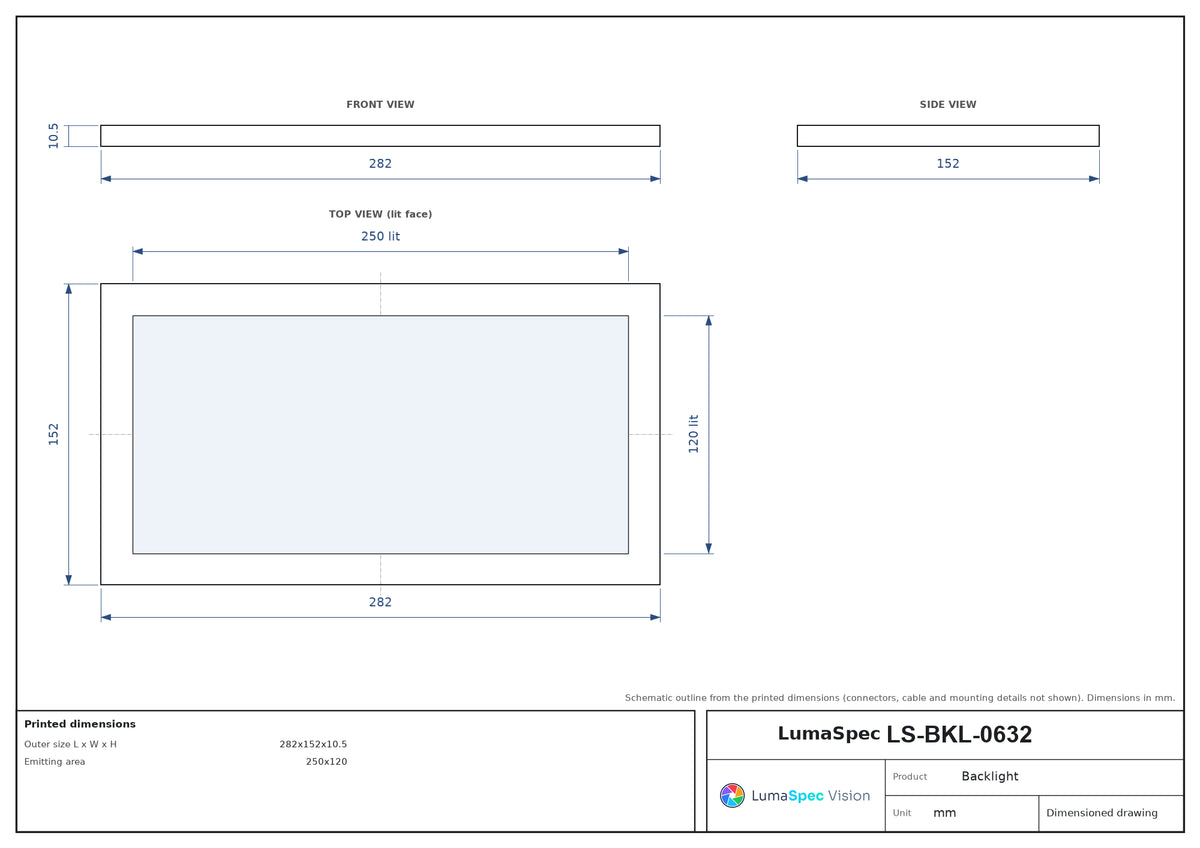

  • LS-BKL-0632 dimensions (mm)

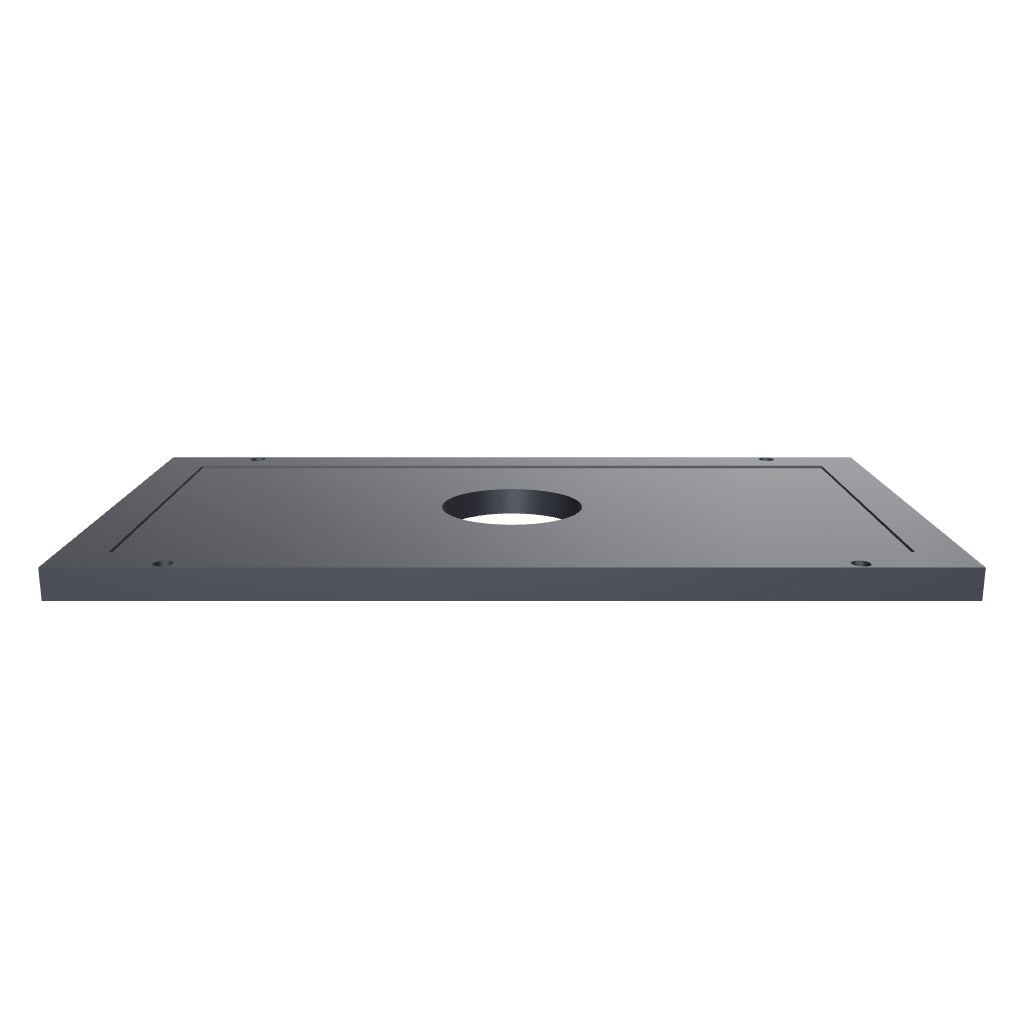

  • LS-BKL-0632 3D model

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Backlights

250 x 120 mm Edge-Lit Through-Hole LED Backlight (LS-BKL-0632)

Model LS-BKL-0632

  • ColourRed, Green, Blue, White
  • Emitting area250x120 mm
  • Size282x152x10.5 mm
  • Voltage24 V
  • Power26 W
$519.00

Ships in 2-3 weeks

0.65 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

250 x 120 mm Edge-Lit Through-Hole LED Backlight (LS-BKL-0632)LS-BKL-0632

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

250 x 120 mm Edge-Lit Through-Hole LED Backlight. Edge-lit backlight with a round central through-hole (ΦE), 10-11.5 mm thick, in sizes up to a 1568x668 mm emitting area.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-0632

Interfaces and I/O

Cable length (mm)500

Light

Emitting area (mm)250x120
ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)22
Power W/B/G (W)26

Mechanical

Hole size (mm)Φ50
Outer size L x W x H (mm)282x152x10.5
Thickness (mm)10.5 on drawing; 10 to 11.5 in parameter table
MountingX-M4 through holes, counterbore Φ6 depth 3.2
Shipping weight (estimated)0.65 kg

Mounting and drawing data

drawing table (X = qty of M4 through holes, counterbore Φ6 depth 3.2; E = hole diameter): X=4, C=210, D=144, E=50

LS-BKL-0632

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-BKL-0632 — Backlights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Outer size L x W x H (mm)
282x152x10.5
Emitting area (mm)
250x120
Voltage (V)
24

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Flank Back Light with Hole (LS-BKL-S74) series

See all 14 models
