Backlights
400 x 200 mm Edge-Lit Through-Hole LED Backlight (LS-BKL-0637)
Model LS-BKL-0637
- ColourRed, Green, Blue, White
- Emitting area400x200 mm
- Size432x232x10.5 mm
- Voltage24 V
- Power43.5 W
$969.00
In stock - ships the same business day (2 available, order by 2 PM ET)
1.3 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
400 x 200 mm Edge-Lit Through-Hole LED Backlight. Edge-lit backlight with a round central through-hole (ΦE), 10-11.5 mm thick, in sizes up to a 1568x668 mm emitting area.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0637 |
|---|
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 400x200 |
|---|---|
| Colours | Red, Green, Blue, White |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 35 |
| Power W/B/G (W) | 43.5 |
Mechanical
| Hole size (mm) | Φ40 |
|---|---|
| Outer size L x W x H (mm) | 432x232x10.5 |
| Thickness (mm) | 10.5 on drawing; 10 to 11.5 in parameter table |
| Mounting | X-M4 through holes, counterbore Φ6 depth 3.2 |
| Shipping weight (estimated) | 1.30 kg |

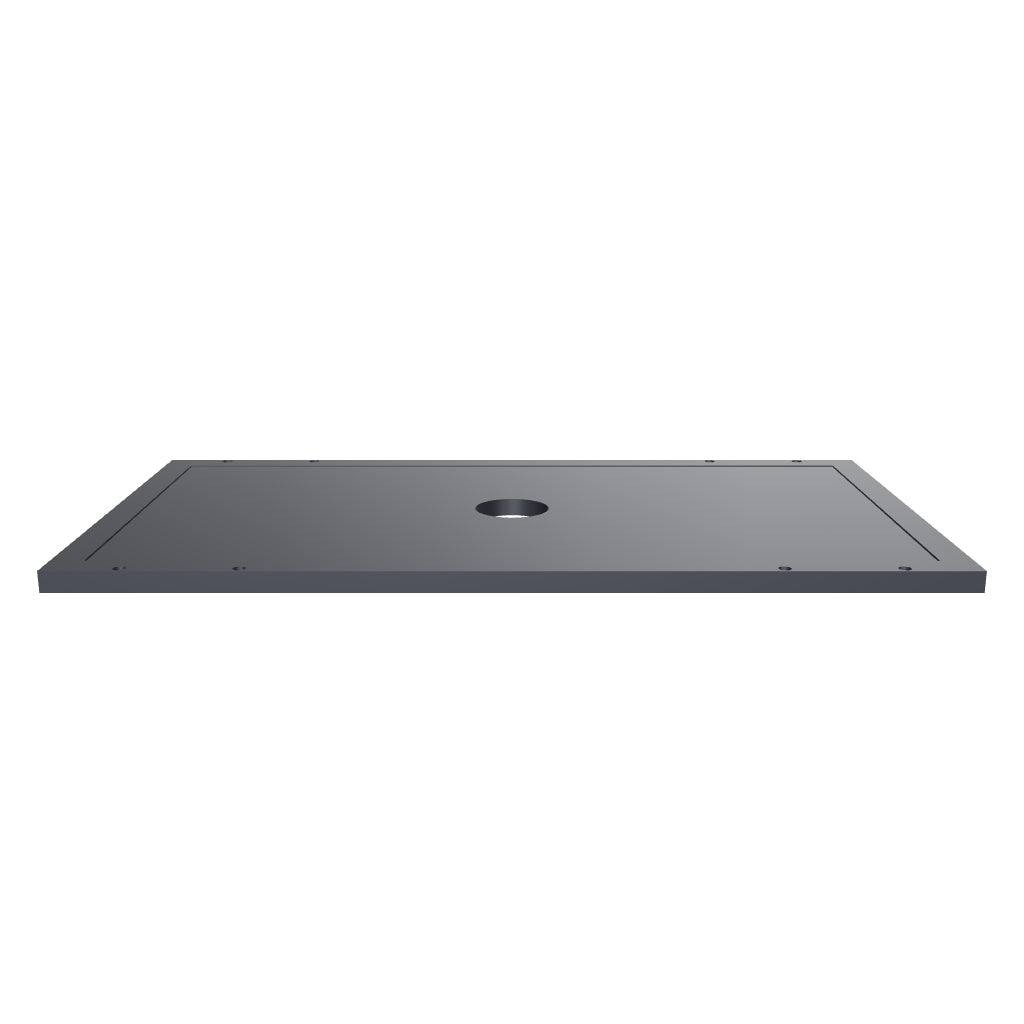

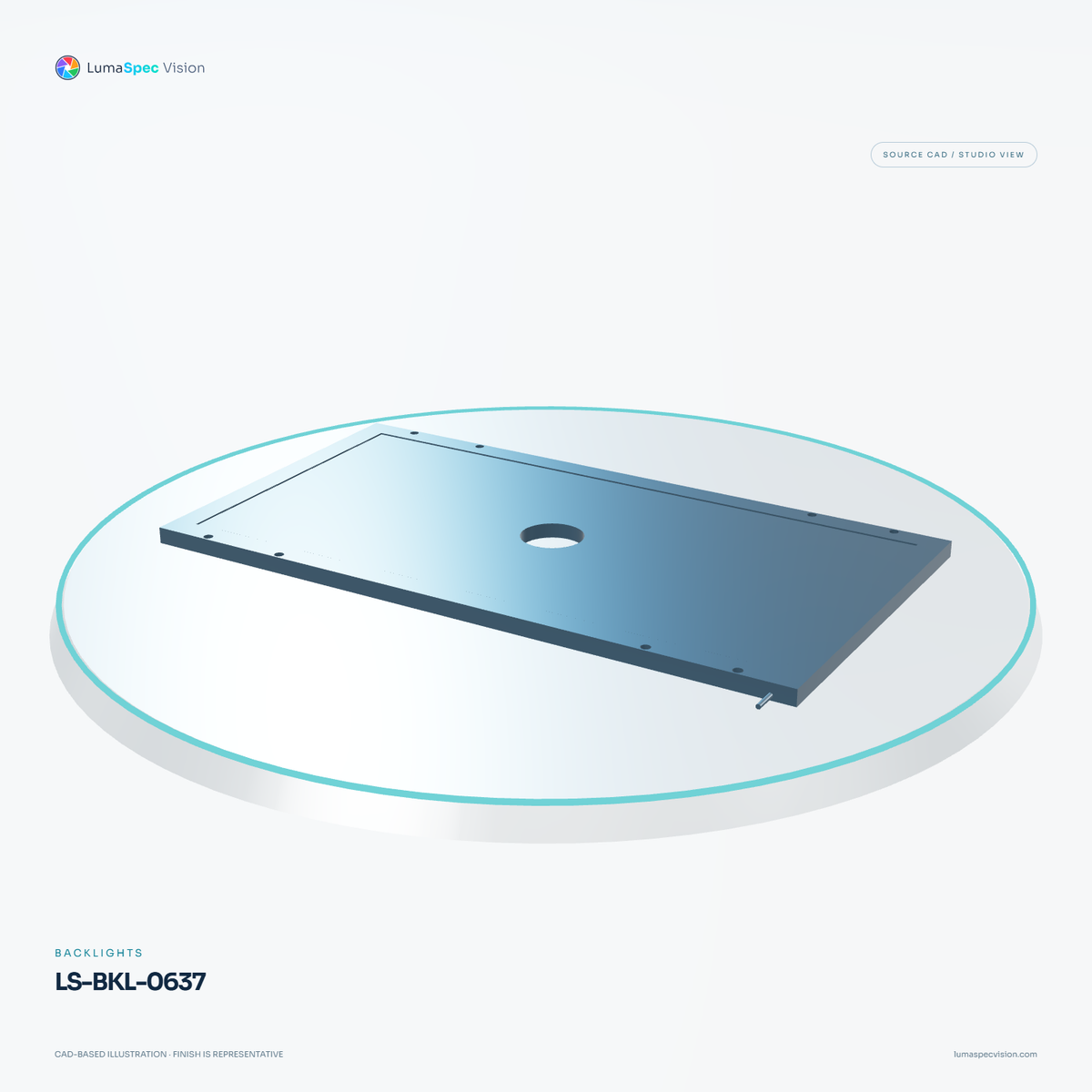

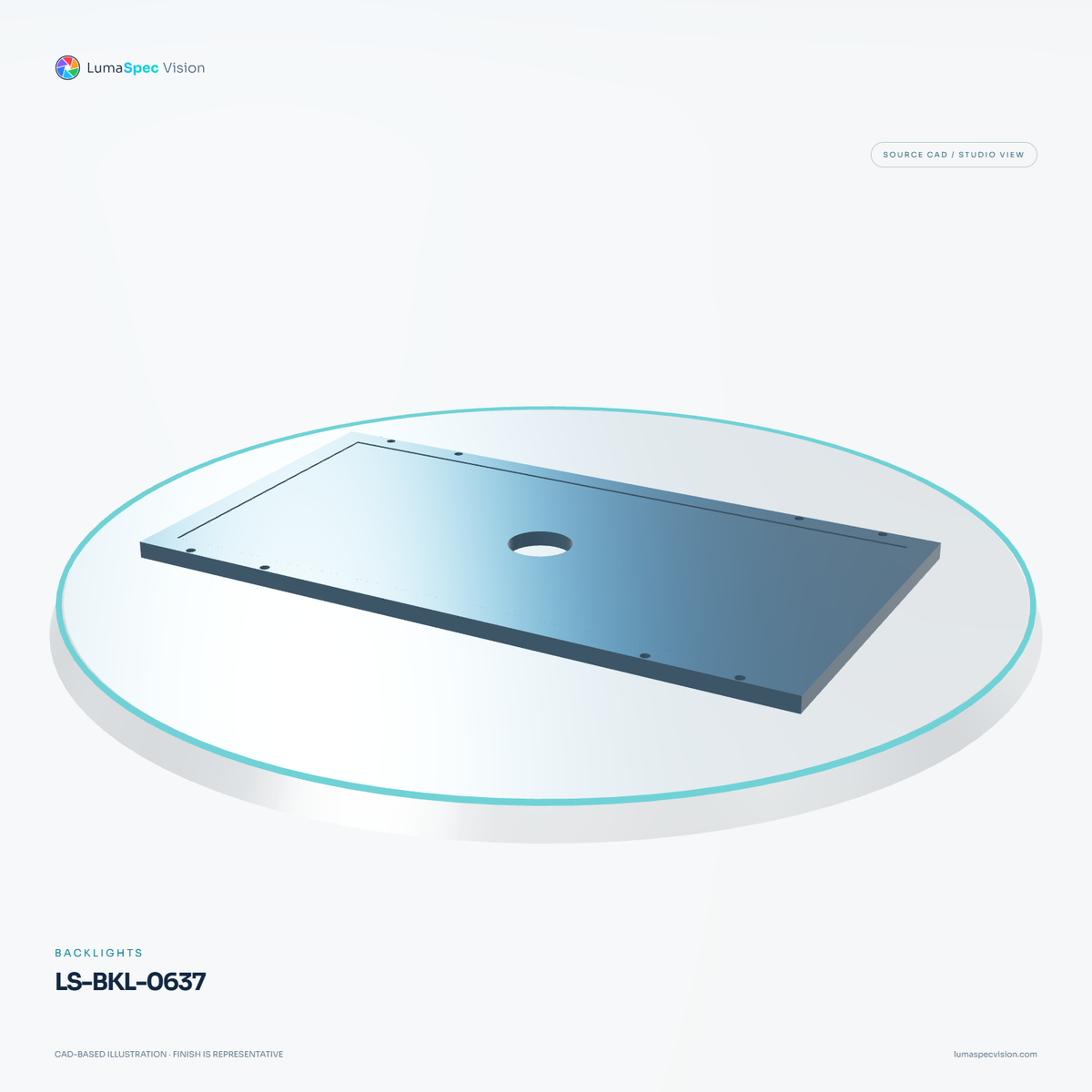

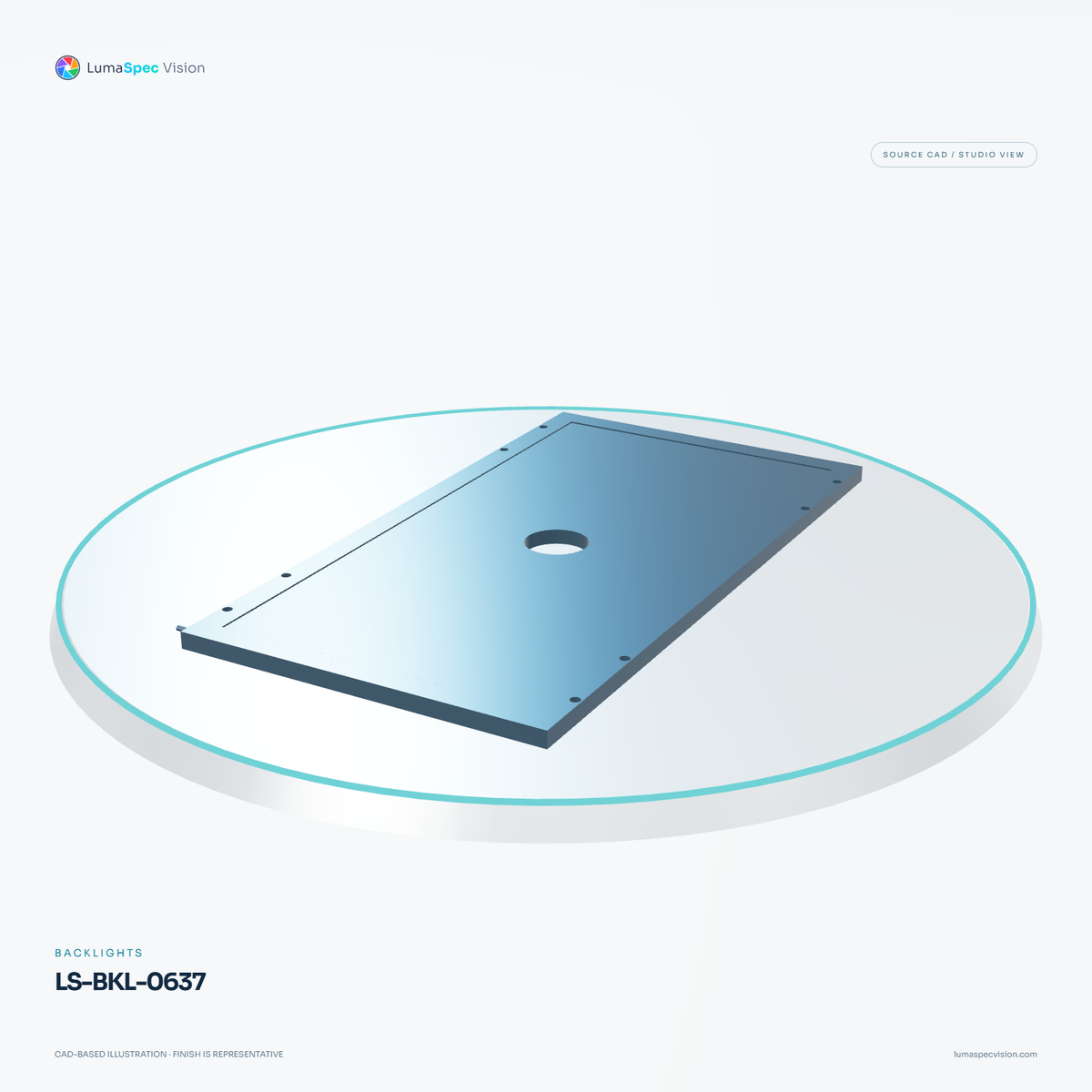

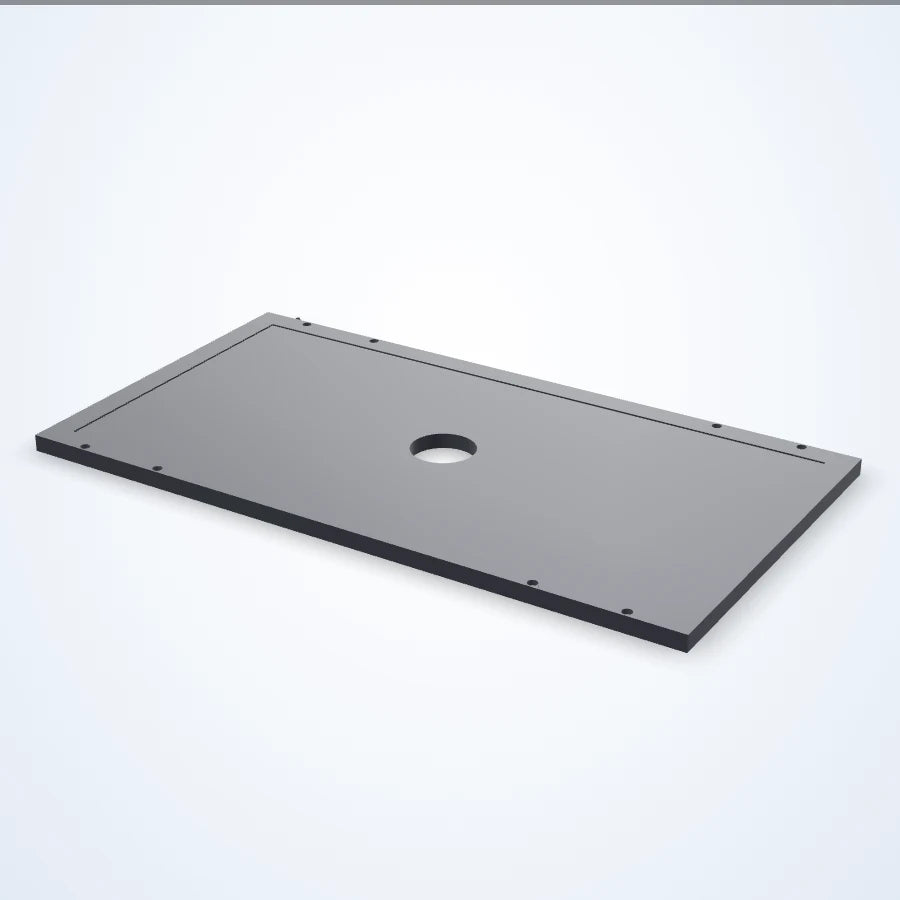

Photo shows a representative model of this series; see the specifications for this model.

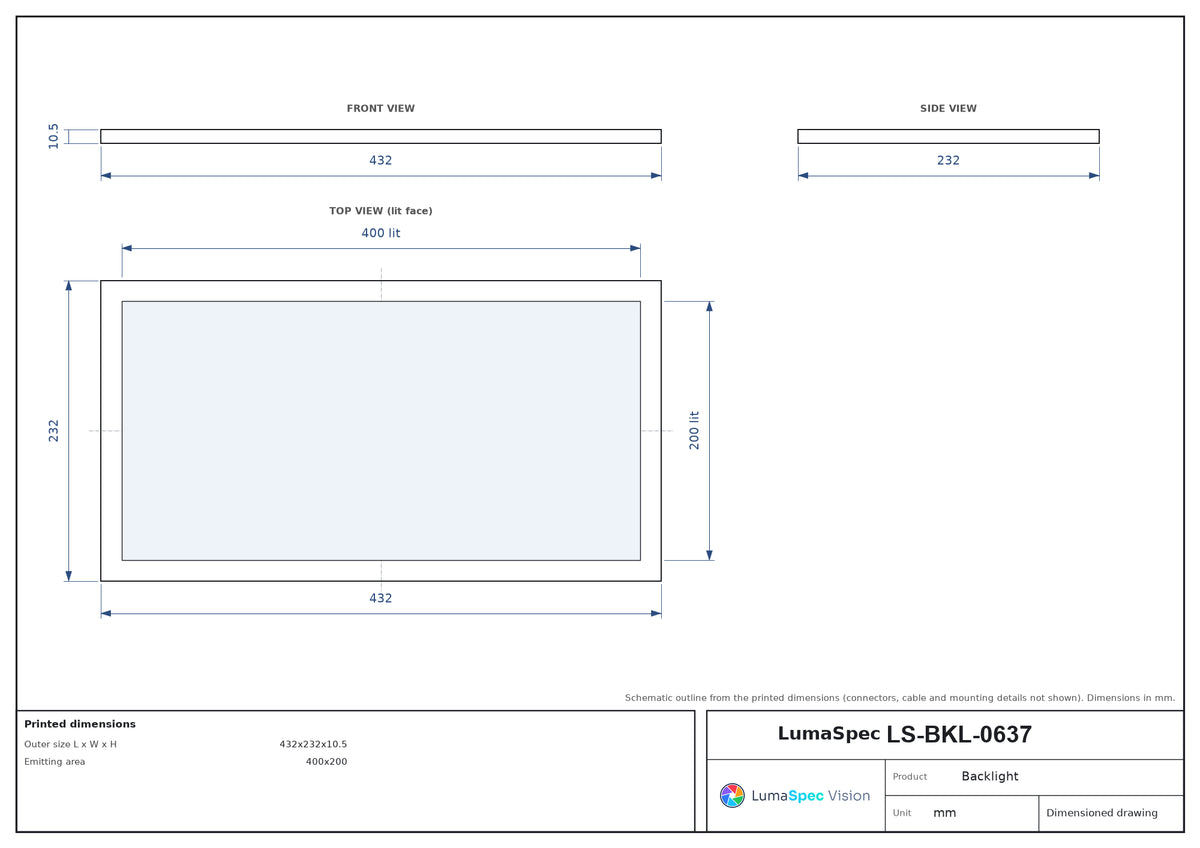

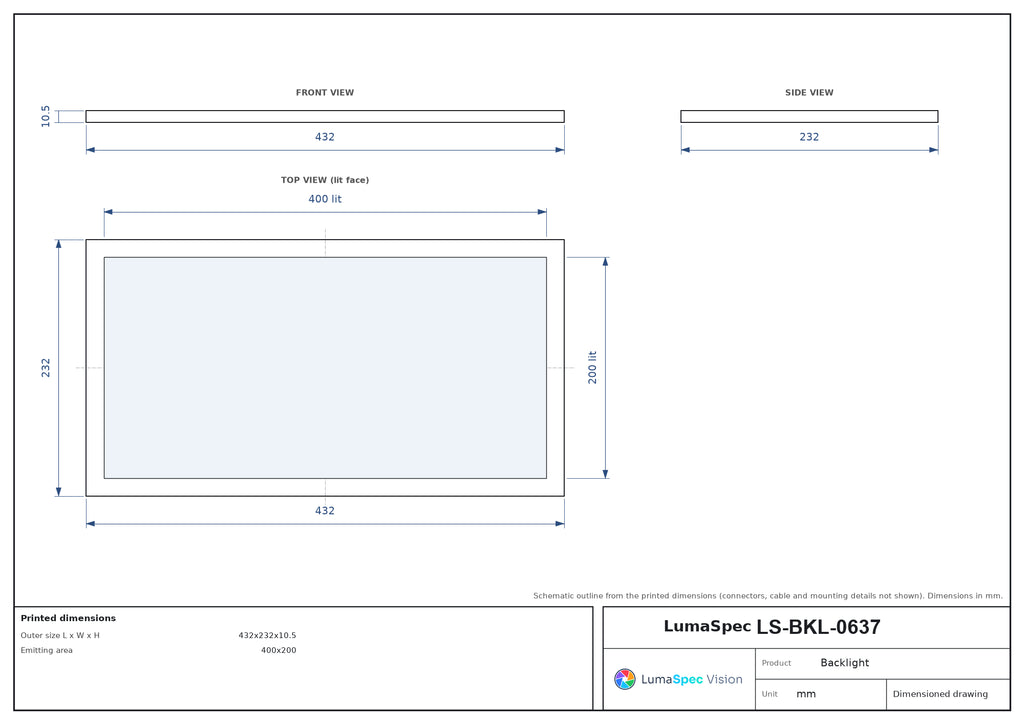

Mounting and drawing data
drawing table (X = qty of M4 through holes, counterbore Φ6 depth 3.2; E = hole diameter): X=8, C=360, D=224, E=40
