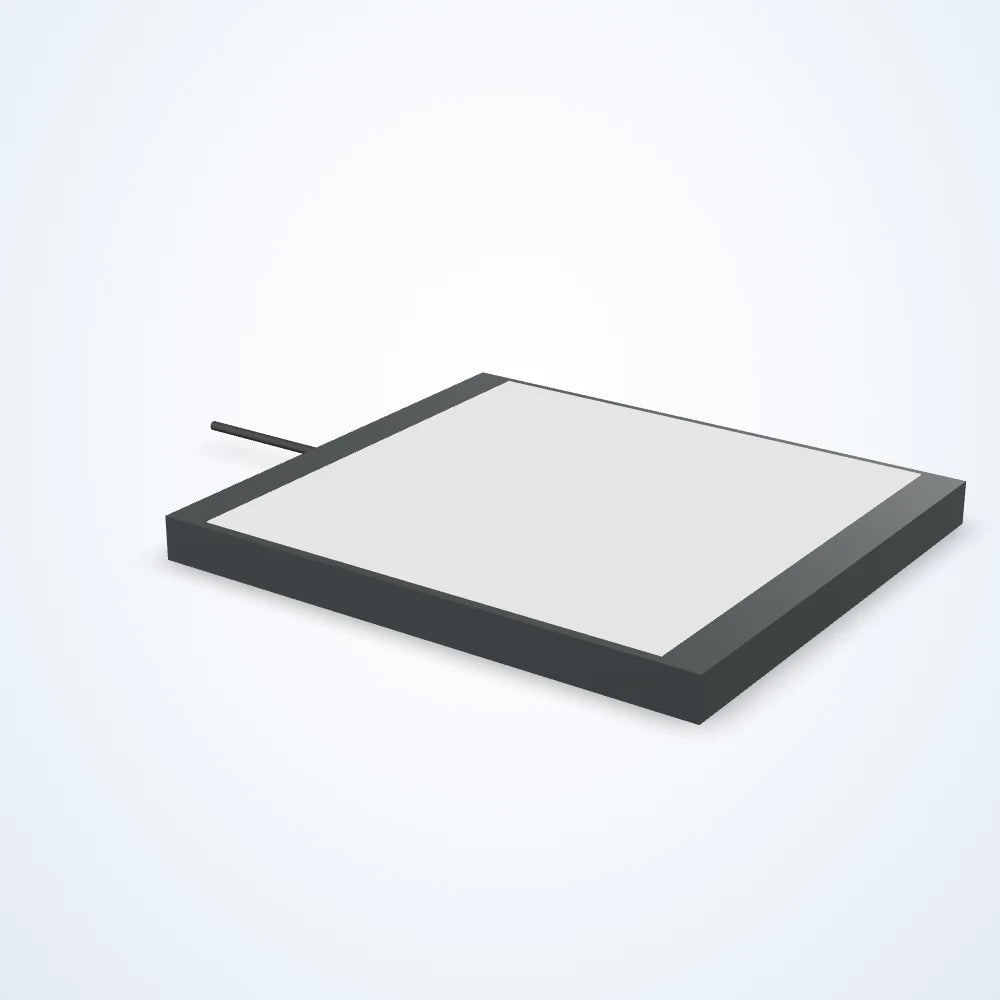

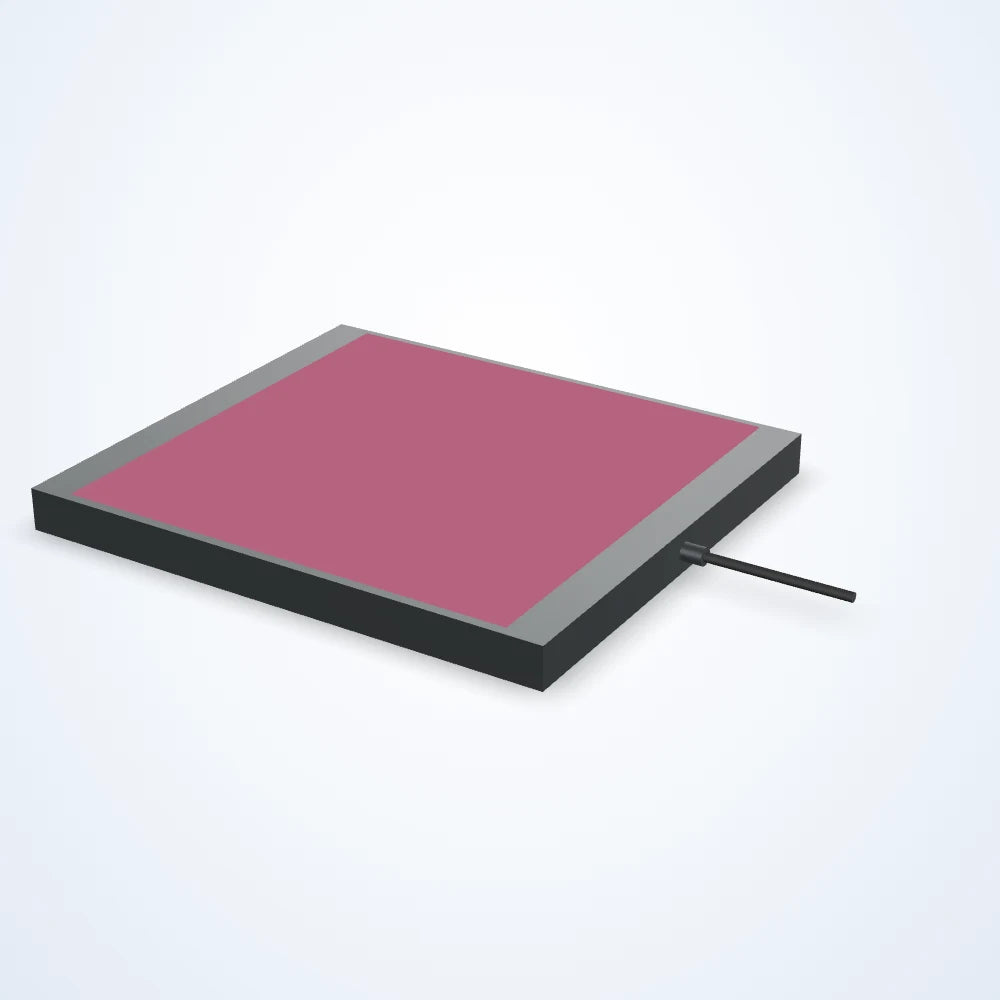

Backlight, 263.4 x 263.4 mm lit area, 850nm Infrared, driver included (LS-BKL-0487)
Model LS-BKL-0487
- ColourInfrared
- Voltage24 VDC
- Wavelength850nm Infrared
- TypeStandard
$4,199.00
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 263.4 x 263.4 mm; 24 VDC supply; connection: flying leads.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0487 |
|---|---|
| Connection at light | Hardwired |
| Driver included | Included |
| Driver location | In Line |
| Intensity control | Analog Voltage |
| Operating modes | Constant On |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Colour | 850nm Infrared |
|---|---|
| Diffused | Not Diffused |
| Wavelength | 850nm Infrared |
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP50 |
| Compliance | CE |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | PNP Trigger |
| Max overcurrent strobe current | 8000 mA |
| Max overcurrent strobe input power | 150 W |
| Maximum constant on current (mA) | 3949 |
| Maximum current (overcurrent strobe) (mA) | 8000 |
| Maximum input power constant on (W) | 94.8 |
| Maximum input power overcurrent strobe (W) | 150 |
| Maximum overcurrent strobe frequency (Hz) | 2000 |
| Maximum overcurrent strobe latency (µs) | 20 |
| NPN trigger voltage (V) | < 1 VDC |
| PNP trigger current (mA) | 5 |
| PNP trigger voltage (V) | 2.5-30 VDC |
Mechanical

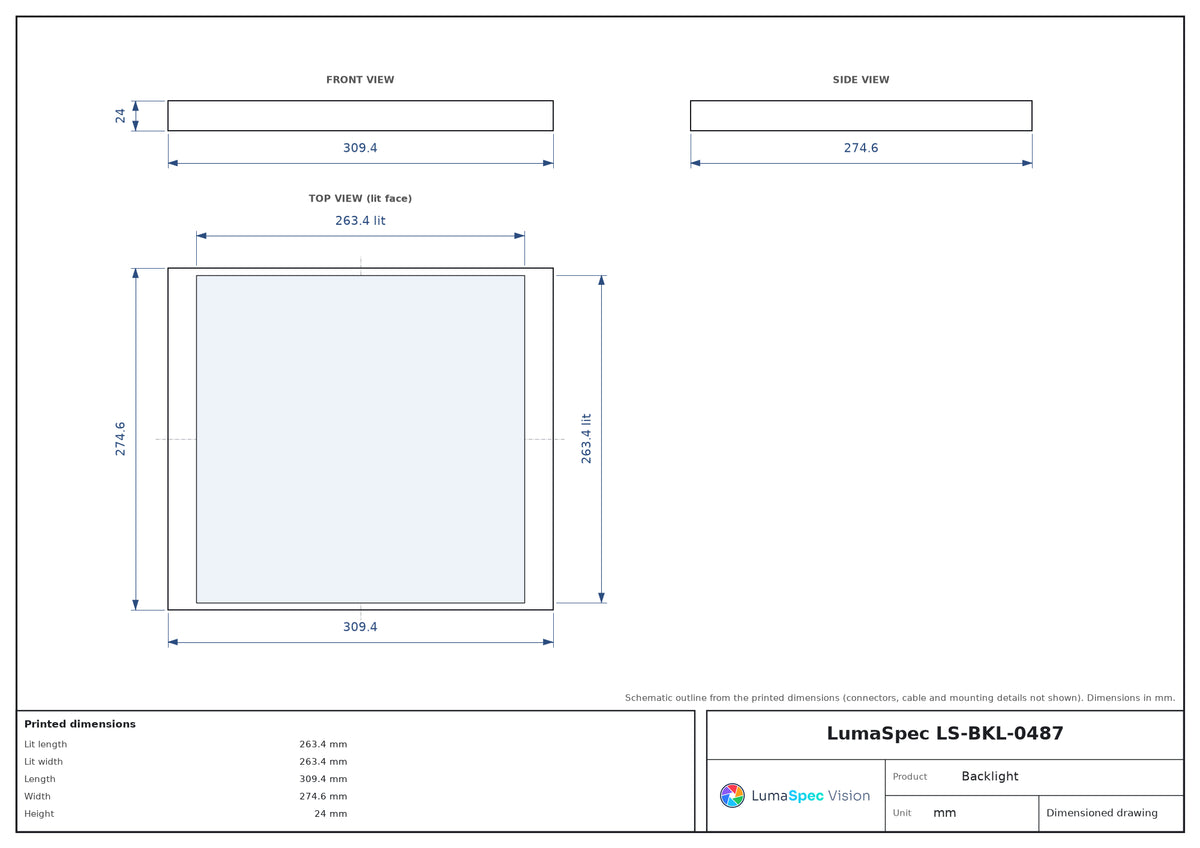

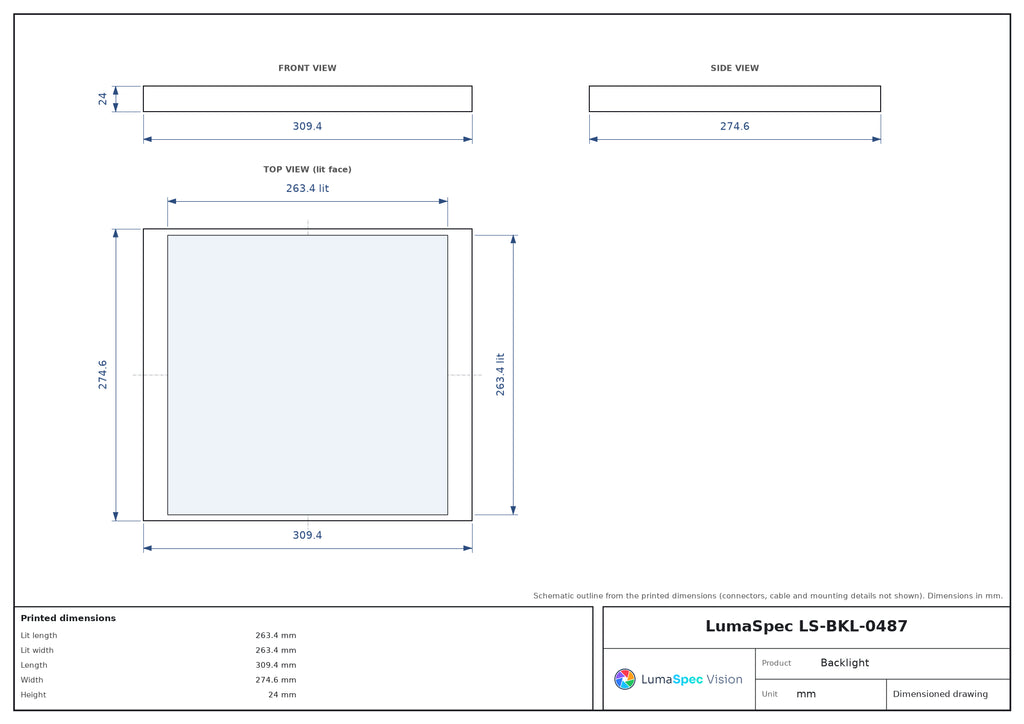

| Lit length (mm) | 263.4 |
|---|---|
| Lit width (mm) | 263.4 |
| Length (mm) | 309.4 |
| Width (mm) | 274.6 |
| Height (mm) | 24 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
Other models in the Backlight series, 24 mm high, Flying Leads series
See all 159 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0500 | 314.2 x 314.2 mm | $3,859.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0501 | 314.2 x 314.2 mm | $3,859.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0502 | 314.2 x 314.2 mm | $3,859.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0503 | 314.2 x 314.2 mm | $3,859.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0504 | 314.2 x 314.2 mm | $3,859.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0480 | 263.4 x 263.4 mm | $3,979.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0482 | 263.4 x 263.4 mm | $3,979.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0484 | 263.4 x 263.4 mm | $3,979.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0486 | 263.4 x 263.4 mm | $3,979.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0488 | 263.4 x 263.4 mm | $3,979.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0481 | 263.4 x 263.4 mm | $4,199.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0483 | 263.4 x 263.4 mm | $4,199.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0485 | 263.4 x 263.4 mm | $4,199.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0489 | 263.4 x 263.4 mm | $4,199.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0490 | 288.8 x 288.8 mm | $4,469.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0492 | 288.8 x 288.8 mm | $4,469.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0494 | 288.8 x 288.8 mm | $4,469.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0496 | 288.8 x 288.8 mm | $4,469.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0498 | 288.8 x 288.8 mm | $4,469.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0491 | 288.8 x 288.8 mm | $4,689.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0493 | 288.8 x 288.8 mm | $4,689.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0495 | 288.8 x 288.8 mm | $4,689.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0497 | 288.8 x 288.8 mm | $4,689.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0499 | 288.8 x 288.8 mm | $4,689.00 Quote | Built to order: ships in about 4-5 weeks | View |
