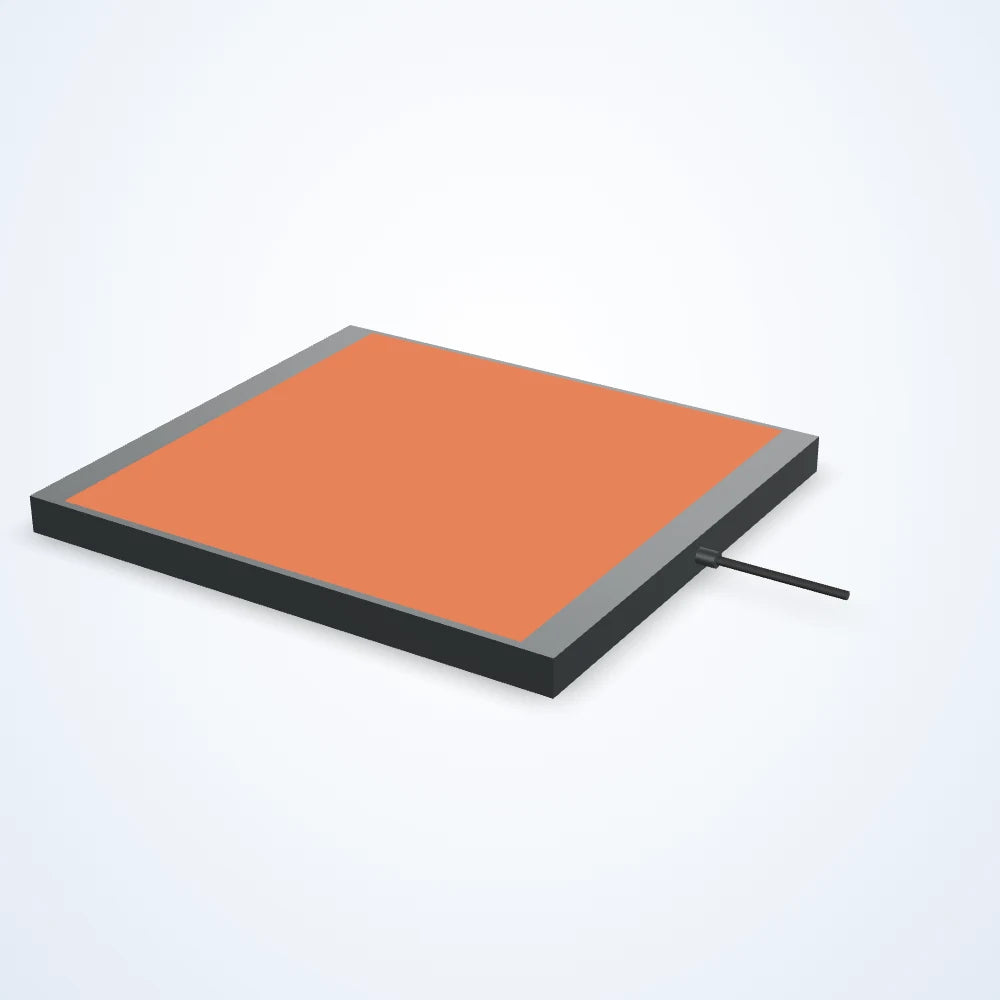

Backlight, 314.2 x 314.2 mm lit area, 625nm Red (LS-BKL-0502)
Model LS-BKL-0502
- ColourRed
- Voltage24 VDC
- Wavelength625nm Red
- TypeStandard
$3,859.00
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 314.2 x 314.2 mm; 24 VDC supply; connection: flying leads.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0502 |
|---|---|
| Connection at light | Hardwired |
| Driver included | No Driver Required |
| Driver location | No Driver |
| Operating modes | Constant On |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Colour | 625nm Red |
|---|---|
| Diffused | Not Diffused |
| Wavelength | 625nm Red |
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP50 |
| Compliance | CE |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | Constant On Only |
| Maximum constant on current (mA) | 2724 |
| Maximum input power constant on (W) | 65.4 |
Mechanical

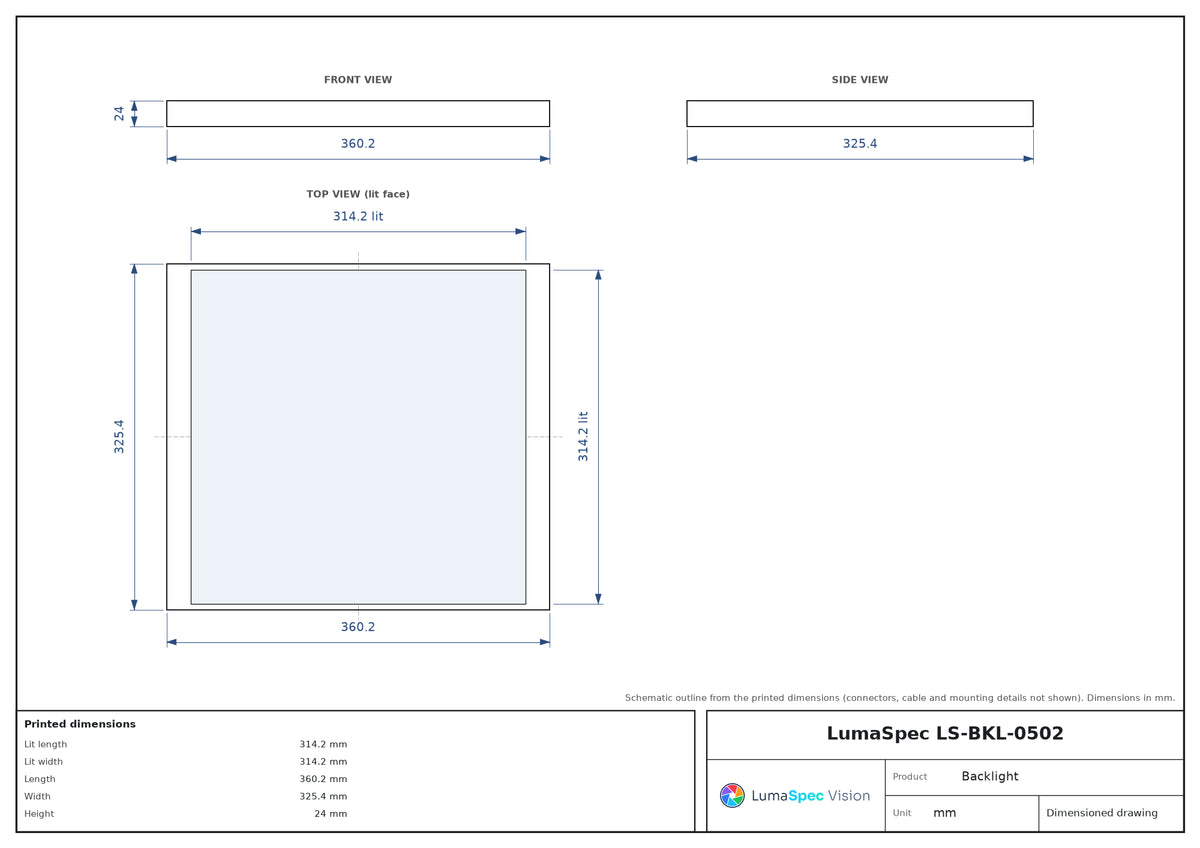

| Lit length (mm) | 314.2 |
|---|---|
| Lit width (mm) | 314.2 |
| Length (mm) | 360.2 |
| Width (mm) | 325.4 |
| Height (mm) | 24 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
