Backlight, 1688 x 25.4 mm lit area, constant on (LS-BKL-0327) - view 5
  • Backlight, 1688 x 25.4 mm lit area, constant on (LS-BKL-0327) - view 5
  • Backlight, 1688 x 25.4 mm lit area, constant on (LS-BKL-0327) - view 2

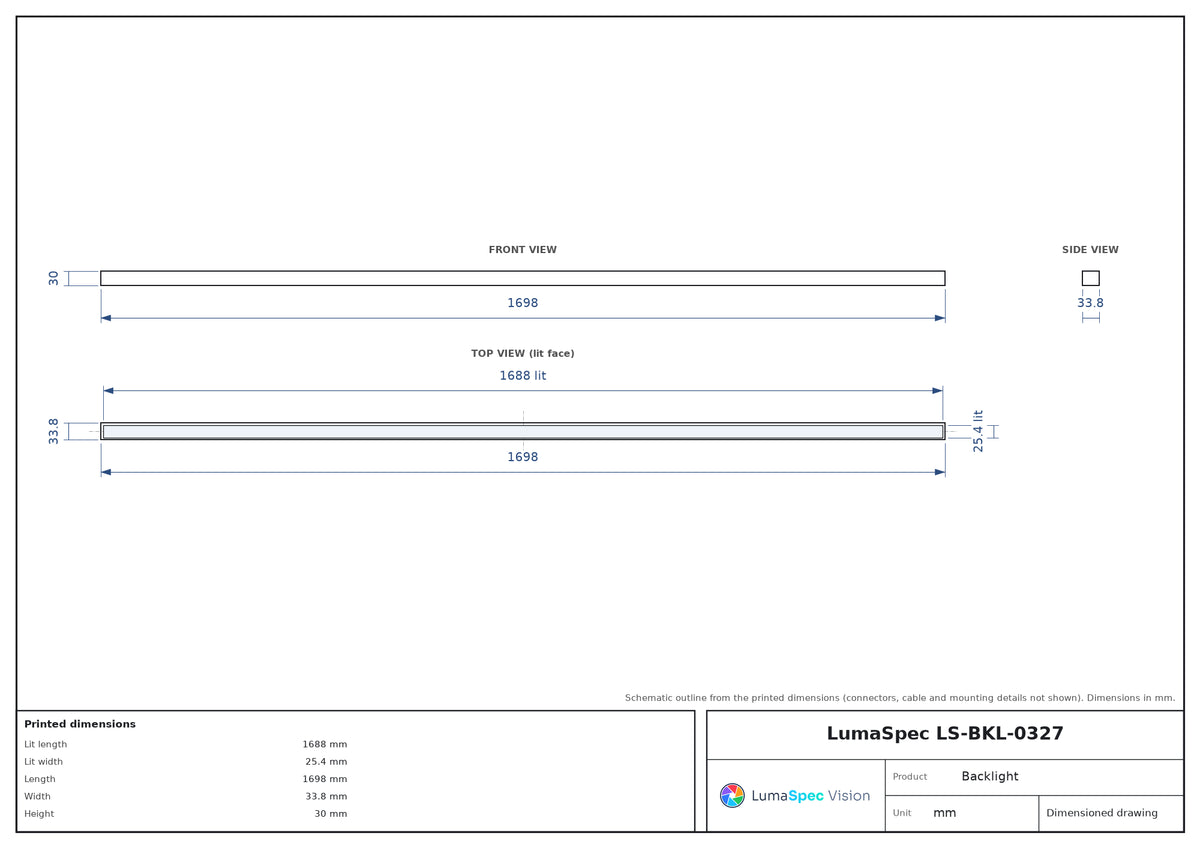

  • LS-BKL-0327 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Backlights

Backlight, 1688 x 25.4 mm lit area, constant on (LS-BKL-0327)

Model LS-BKL-0327

  • ColourWhite
  • Voltage24 VDC
  • TypeStandard
  • Lit length1688 mm
$2,429.00
List price

Sold by quote: request a quote and we confirm the price, lead time and volume pricing.

Built to order: ships in about 4-5 weeks

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Backlight, 1688 x 25.4 mm lit area, constant on (LS-BKL-0327)LS-BKL-0327

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 1688 x 25.4 mm; 24 VDC supply; connection: flying leads.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CE

Specifications

General

ModelLS-BKL-0327
Connection at lightHardwired
Driver includedNo Driver Required
Driver locationNo Driver
Operating modesConstant On
Maximum duty cycle (%)100
CollimatedNot Collimated
Daisy chainNo
Direct connectNo
PolarizedNot Polarized

Interfaces and I/O

ConnectorFlying Leads
Cable length (mm)2000

Light

ColourWhite
DiffusedNot Diffused

Environment and compliance

Operating temperature0 to 60 °C
IP ratingIP50
ComplianceCE
As declared by the manufacturer

Electrical

Voltage24 VDC
Strobe trigger inputConstant On Only
Maximum constant on current (mA)1337
Maximum input power constant on (W)32.1

Mechanical

Lit length (mm)1688
Lit width (mm)25.4
Length (mm)1698
Width (mm)33.8
Height (mm)30
HousingAluminum
MountingT-Slot Channel

Engineering data

Drive and fit the LS-BKL-0327

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Emitting area1688 × 25.4 mmKeep the camera's field of view inside it for an even background.
Current1337 mAmax., constant on
Power32.1 Wmax., constant on
Ingress protectionIP50
Operating temperature0 to 60 °C
Cable length2000 mm

Mounting and installation

MountingT-slot / nut channel
Cable2 mFlying leads
ProtectionIP50
HousingAluminum

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Controllers for this light

Same 24 V supply

Same 24 V supply

Same 24 V supply

Same 24 V supply

Same 24 V supply

Same 24 V supply

Other models in the Backlight, 30 mm high, flying leads (LS-BKL-S04) series

See all 282 models
ModelSizeLit lengthPriceAvailabilityLink
LS-BKL-0327This model1688 x 25.4 mm1688 mm$2,429.00 Quote Built to order: ships in about 4-5 weeks
LS-BKL-03121383 x 25.4 mm1383 mm$2,069.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03131409 x 25.4 mm1409 mm$2,129.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03141434 x 25.4 mm1434 mm$2,129.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03151459 x 25.4 mm1459 mm$2,189.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03161485 x 25.4 mm1485 mm$2,189.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03171510 x 25.4 mm1510 mm$2,249.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03181536 x 25.4 mm1536 mm$2,249.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03191561 x 25.4 mm1561 mm$2,309.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03201586 x 25.4 mm1586 mm$2,309.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03211612 x 25.4 mm1612 mm$2,369.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03231637 x 25.4 mm1637 mm$2,369.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03251663 x 25.4 mm1663 mm$2,429.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03291713 x 25.4 mm1713 mm$2,489.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03311739 x 25.4 mm1739 mm$2,489.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03331764 x 25.4 mm1764 mm$2,549.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03351790 x 25.4 mm1790 mm$2,549.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03221612 x 25.4 mm1612 mm$2,589.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03241637 x 25.4 mm1637 mm$2,589.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03371815 x 25.4 mm1815 mm$2,609.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03381840 x 25.4 mm1840 mm$2,609.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03261663 x 25.4 mm1663 mm$2,649.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03281688 x 25.4 mm1688 mm$2,649.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03391866 x 25.4 mm1866 mm$2,669.00 Quote Built to order: ships in about 4-5 weeks View
LS-BKL-03401891 x 25.4 mm1891 mm$2,669.00 Quote Built to order: ships in about 4-5 weeks View
