120 x 120 mm Collimated LED Backlight (LS-BCP-120X120)
Model LS-BCP-120X120
- ColourRed, Green, Blue, White
- Emitting area120x120 mm
- Size134x134x19 mm
- Voltage24 V
$379.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.55 kg shipping weight
Volume pricing, Net 30 or a formal quote?
120 x 120 mm Collimated LED Backlight. Collimated bottom-lit backlight (LED array + diffuser) that sharpens product edges and raises contrast, 19 mm thick.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BCP-120X120 |
|---|
Interfaces and I/O
| Cable length (mm) | 500 |
|---|---|
| Connector | 3-pin: 1 +, 2 not connected, 3 - |
Light
| Emitting area (mm) | 120x120 |
|---|---|
| Colours | Red, Green, Blue, White |
Electrical
| Voltage (V) | 24 |
|---|

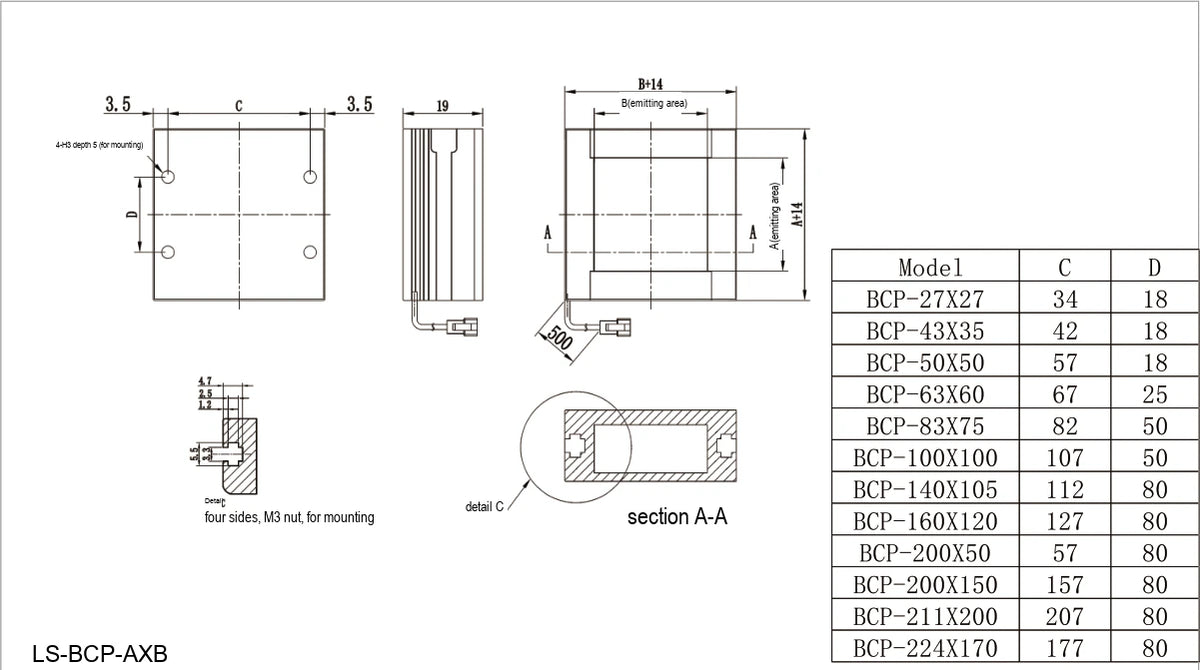

Mechanical
| Outer size L x W x H (mm) | 134x134x19 |
|---|---|
| Thickness (mm) | 19 |
| Mounting | 4 x M3, 5 mm deep, on 127 x 80 mm (back) |
| Shipping weight | 0.55 kg |
Other models in the Collimated Bottom Back Light (BCP series) series
See all 13 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BCP-27X27 | 27 x 27 mm | $229.00 | 15 in stock | View |
| LS-BCP-43X35 | 43 x 35 mm | $229.00 | 18 in stock | View |
| LS-BCP-50X50 | 50 x 50 mm | $249.00 | 16 in stock | View |
| LS-BCP-63X60 | 63 x 60 mm | $259.00 | 16 in stock | View |
| LS-BCP-83X75 | 83 x 75 mm | $289.00 | 10 in stock | View |
| LS-BCP-100X100 | 100 x 100 mm | $329.00 | 14 in stock | View |
| LS-BCP-200X50 | 200 x 50 mm | $329.00 | 12 in stock | View |
| LS-BCP-140X105 | 140 x 105 mm | $389.00 | 13 in stock | View |
| LS-BCP-160X120 | 160 x 120 mm | $439.00 | 15 in stock | View |
| LS-BCP-200X150 | 200 x 150 mm | $569.00 | 13 in stock | View |
| LS-BCP-224X170 | 224 x 170 mm | $669.00 | 16 in stock | View |
| LS-BCP-211X200 | 211 x 200 mm | $709.00 | 16 in stock | View |
