Representative photo of this series
Bar lights
266 x 31 mm UV light, LS-RNG-S44 series (LS-BAR-1354)
Model LS-BAR-1354
- Power19 W
- TypeStandard
- Voltage24 V
- Optional accessoriesExtension cable
$299.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.65 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Uses imported high-output UV LEDs; uses differences in scattering and spectral reflectance for a variety of measurements.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-1354 |
|---|---|
| Service life | At 25 °C ambient: red works continuously for 60000 hours at 50% illumination, white 30000 hours at 50% illumination (decrement at 50%) |
| Optional accessories | Extension cable |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Luminous dimension (mm) | 266 x 31 |
|---|---|
| Wavelength UV | 365 nm |
Environment and compliance
| Storage temperature | -20-60 °C |
|---|---|
| Operating temperature | 0-40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-CTL-S69, LS-CTL-S28, LS-CTL-S125, LS-CTL-S32 series (match the power of the light source) |
|---|---|
| Power (W) | 19 |
| Recommended controller | LS-CTL-S69, LS-CTL-S28, LS-CTL-S125 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28 |
Mechanical

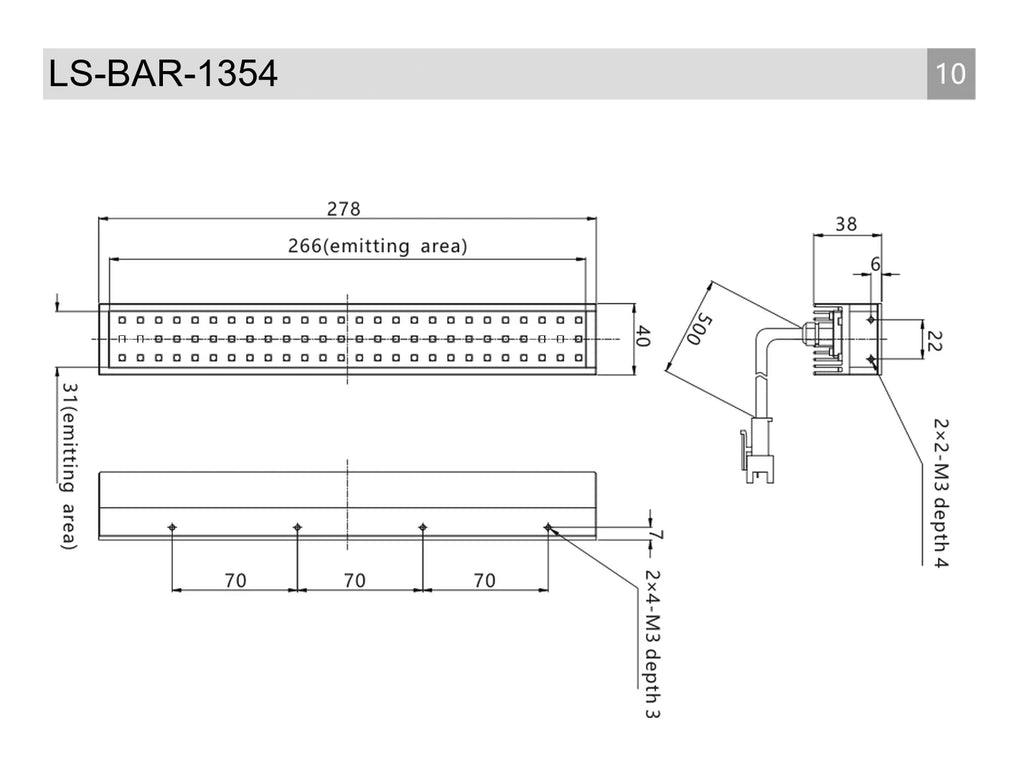

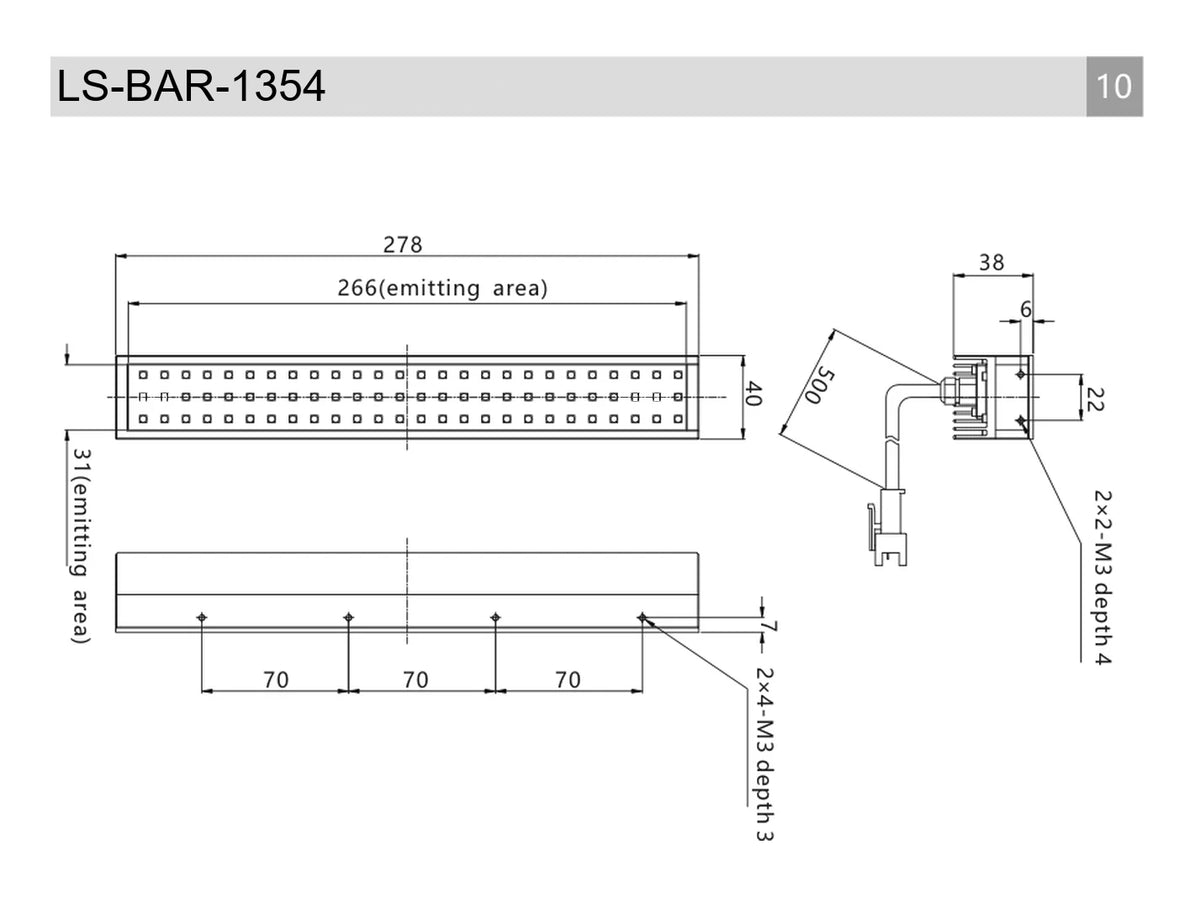

| Overall size (mm) | L278 x W40 x H36 |
|---|---|
| Shipping weight | 0.65 kg |
