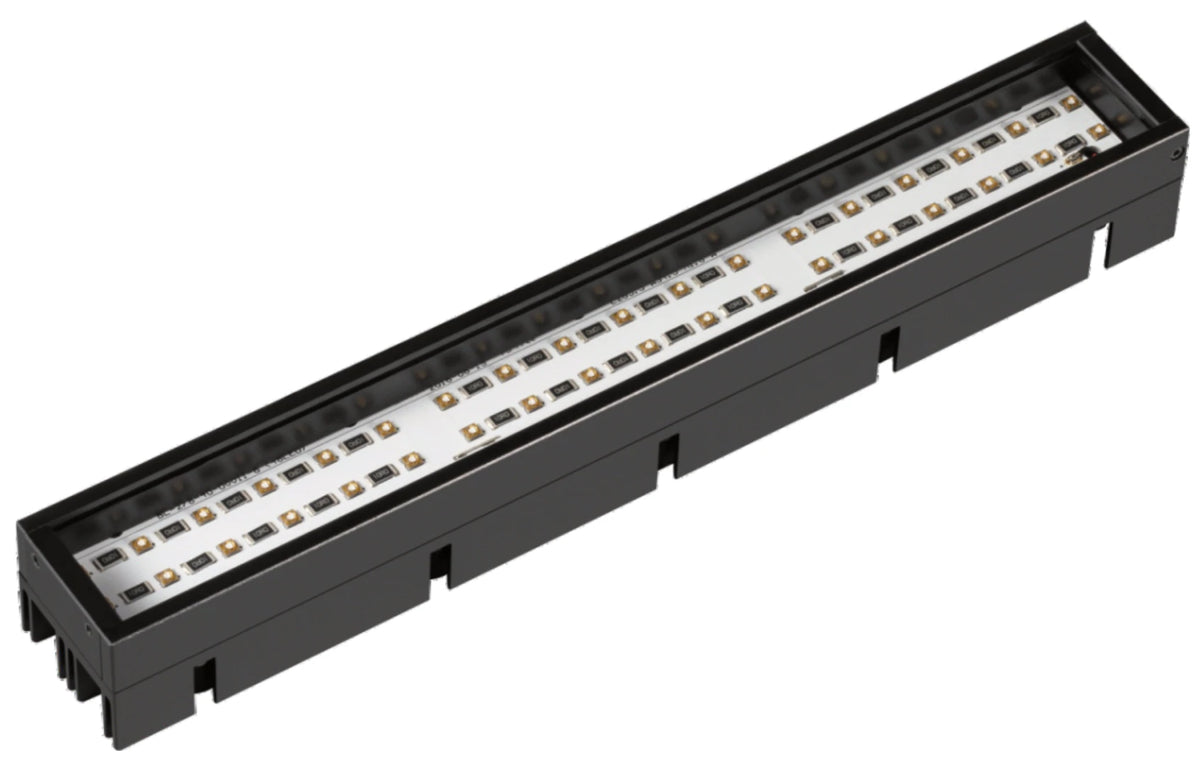

Representative photo of this series

Bar lights

74 x 26 mm UV light, LS-RNG-S44 series (LS-BAR-1351)

Model LS-BAR-1351

Power4.2 W
TypeStandard
Voltage24 V
Optional accessoriesExtension cable

$189.00

Ships in 2-3 weeks

0.25 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Uses imported high-output UV LEDs; uses differences in scattering and spectral reflectance for a variety of measurements.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BAR-1351
Service life	At 25 °C ambient: red works continuously for 60000 hours at 50% illumination, white 30000 hours at 50% illumination (decrement at 50%)
Optional accessories	Extension cable

Interfaces and I/O

Cable length (mm)	500

Light

Luminous dimension (mm)	74 x 26
Wavelength UV	365 nm

Environment and compliance

Storage temperature	-20-60 °C
Operating temperature	0-40 °C
Humidity	20-85 %RH (non-condensing)

Electrical

Controller	LS-CTL-S69, LS-CTL-S28, LS-CTL-S125, LS-CTL-S32 series (match the power of the light source)
Power (W)	4.2
Recommended controller	LS-CTL-S69, LS-CTL-S28, LS-CTL-S125
Supply voltage (derived)	24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28

Mechanical

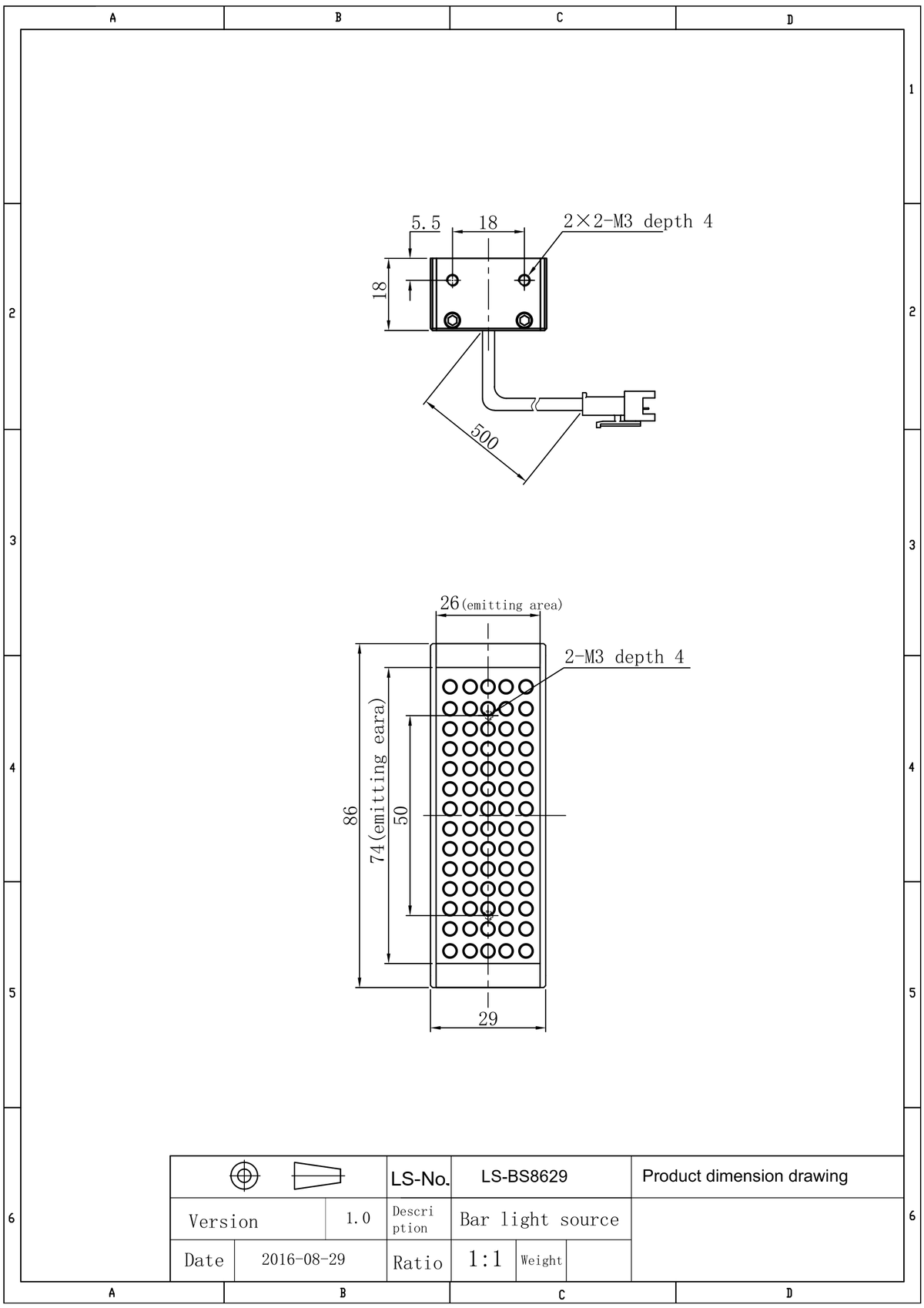

Overall size (mm)	L86 x W29 x H18
Shipping weight	0.25 kg

Downloads

Datasheet (PDF)LS-BAR-1351 · 1.6 MB

Features

Using imported high output UV LEDs
Using the difference in scattering rates for a variety of measurements
Using the difference in spectral reflectance for a variety of measurements

Applications

Checking sealing material by stimulating fluorescence
Measurements using the difference in spectral reflectance
Invisible barcode reading
ITO location inspection
Size measurement
Glue inspection inside earphones
