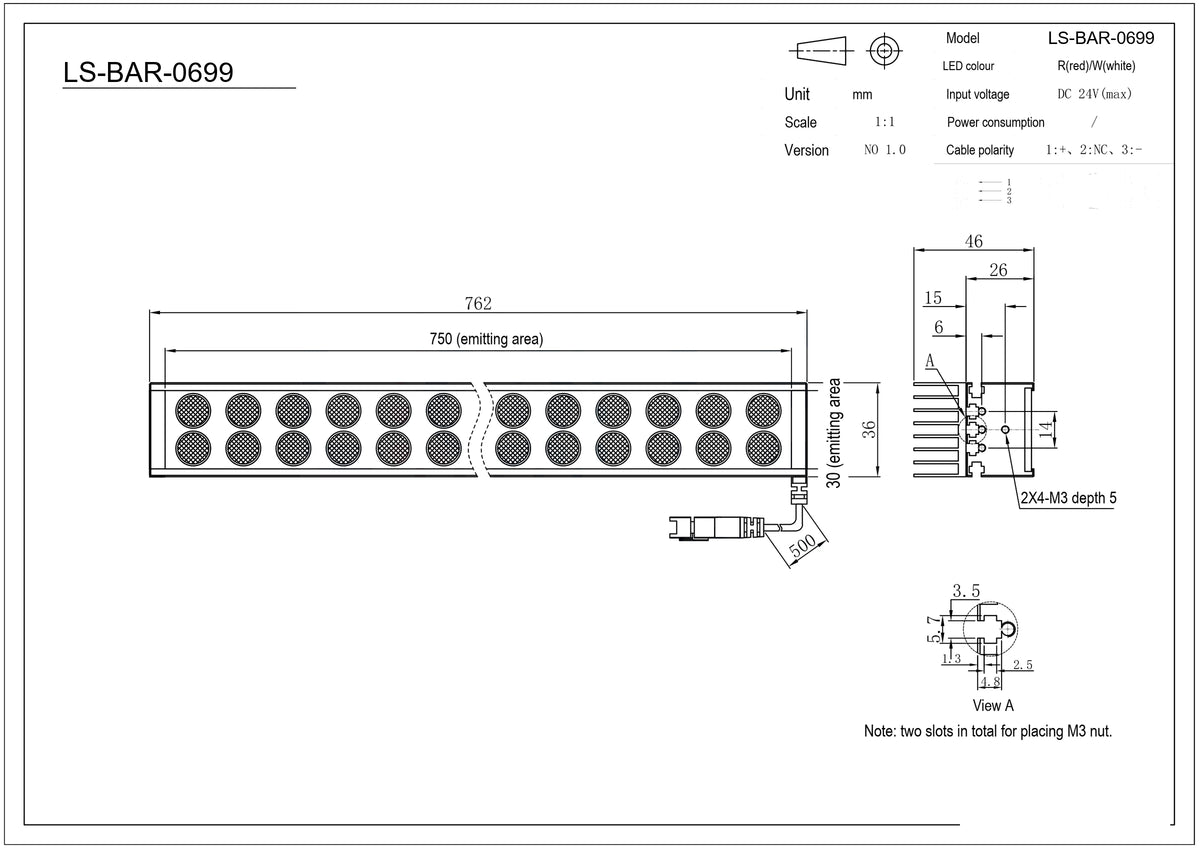

  • LS-BAR-0699 dimensions (mm)

Bar lights

High power bar light, 762 x 36 x 46 mm (LS-BAR-0699)

Model LS-BAR-0699

  • ColourRed, Blue, Green, White
  • SizeL762xW36xH46(mm)
  • Voltage24V
  • Power72.0W/72.0W
$699.00

Ships in 2-3 weeks

1.45 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

High power bar light, 762 x 36 x 46 mm (LS-BAR-0699)LS-BAR-0699

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Adopted to high power LED design, the luminance is 2-3 times than original. Adapted to the enrironment where highlight is needed. Easy to install, good heat-dissipation.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-0699
NoteUV & IR light can be customized as required.
General lensW
Narrow angle lensL-W

Interfaces and I/O

Cable polarity1: +, 2: NC, 3: -
Cable (mm)500 (drawing)

Light

LED colourR(red)/W(white)

Electrical

Voltage24V
Power72.0W/72.0W
Input voltageDC 24V (max)

Mechanical

DimensionL762xW36xH46(mm)
Mounting2 slots for M3 nuts
Shipping weight1.45 kg

Photo shows a related bar light of this range; see the drawing and specifications for this model.

Other models in the High power bar light (LS-BAR-S75) series

See all 12 models
ModelSize / key dataPriceAvailabilityLink
LS-BAR-0690 Red, Blue, Green, White · 150 x 16 mm $209.00 Ships in 2-3 weeks View
LS-BAR-0691 Red, Blue, Green, White · L162xW36xH46(mm) $209.00 Ships in 2-3 weeks View
LS-BAR-0692 Red, Blue, Green, White · 300 x 16 mm $339.00 Ships in 2-3 weeks View
LS-BAR-0693 Red, Blue, Green, White · L312xW36xH46(mm) $339.00 Ships in 2-3 weeks View
LS-BAR-0694 Red, Blue, Green, White · 450 x 16 mm $459.00 Ships in 2-3 weeks View
LS-BAR-0695 Red, Blue, Green, White · L462xW36xH46(mm) $469.00 Ships in 2-3 weeks View
LS-BAR-0696 Red, Blue, Green, White · 600 x 16 mm $579.00 Ships in 2-3 weeks View
LS-BAR-0697 Red, Blue, Green, White · L612xW36xH46(mm) $589.00 Ships in 2-3 weeks View
LS-BAR-0698 Red, Blue, Green, White · 750 x 16 mm $699.00 Ships in 2-3 weeks View
LS-BAR-0700 Red, Blue, Green, White · 900 x 16 mm $809.00 Ships in 2-3 weeks View
LS-BAR-0701 Red, Blue, Green, White · L912xW36xH46(mm) $819.00 Ships in 2-3 weeks View
