Bar lights
High power bar light, 162 x 22 x 36 mm (LS-BAR-0690)
Model LS-BAR-0690
- ColourRed, Blue, Green, White
- Emitting area150 x 16 mm
- SizeL162xW22xH36mm)
- Voltage24V
- Power8.4W/8.4W
$209.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Adopted to high power LED design, the luminance is 2-3 times than original. Adapted to the enrironment where highlight is needed. Easy to install, good heat-dissipation.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0690 |
|---|---|
| Note | UV & IR light can be customized as required. |
| General lens | W |
| Narrow angle lens | L-W |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|---|

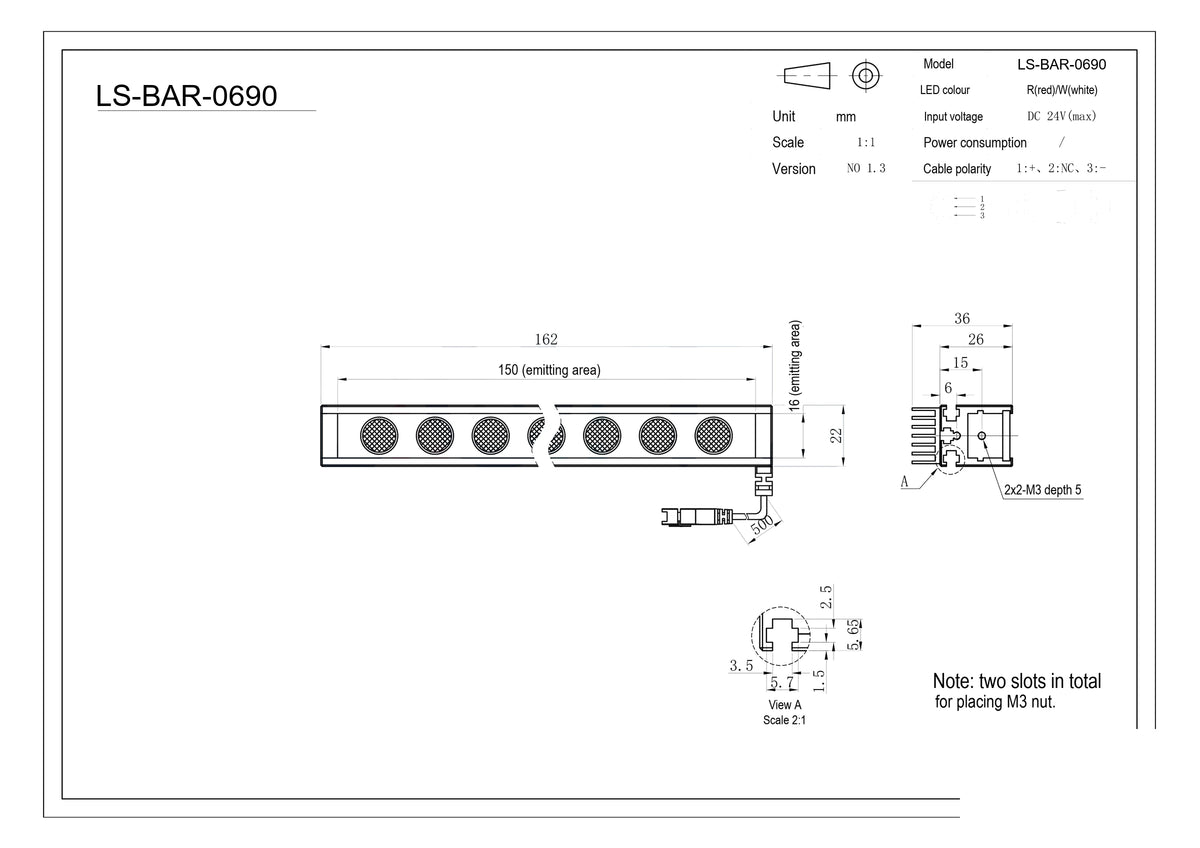

| Cable (mm) | 500 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 150 x 16 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 8.4W/8.4W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L162xW22xH36mm) |
|---|---|
| Mounting holes | 2×2-M3 depth 5 |
| Mounting | 2 slots for M3 nuts |
| Shipping weight | 0.35 kg |
Photo shows a related bar light of this range; see the drawing and specifications for this model.
Other models in the High power bar light (LS-BAR-S75) series
See all 12 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-0691 | Red, Blue, Green, White · L162xW36xH46(mm) | $209.00 | 14 in stock | View |
| LS-BAR-0692 | Red, Blue, Green, White · 300 x 16 mm | $339.00 | 13 in stock | View |
| LS-BAR-0693 | Red, Blue, Green, White · L312xW36xH46(mm) | $339.00 | 19 in stock | View |
| LS-BAR-0694 | Red, Blue, Green, White · 450 x 16 mm | $459.00 | 14 in stock | View |
| LS-BAR-0695 | Red, Blue, Green, White · L462xW36xH46(mm) | $469.00 | 14 in stock | View |
| LS-BAR-0696 | Red, Blue, Green, White · 600 x 16 mm | $579.00 | 15 in stock | View |
| LS-BAR-0697 | Red, Blue, Green, White · L612xW36xH46(mm) | $589.00 | 14 in stock | View |
| LS-BAR-0698 | Red, Blue, Green, White · 750 x 16 mm | $699.00 | 11 in stock | View |
| LS-BAR-0699 | Red, Blue, Green, White · L762xW36xH46(mm) | $699.00 | 13 in stock | View |
| LS-BAR-0700 | Red, Blue, Green, White · 900 x 16 mm | $809.00 | 15 in stock | View |
| LS-BAR-0701 | Red, Blue, Green, White · L912xW36xH46(mm) | $819.00 | 14 in stock | View |
