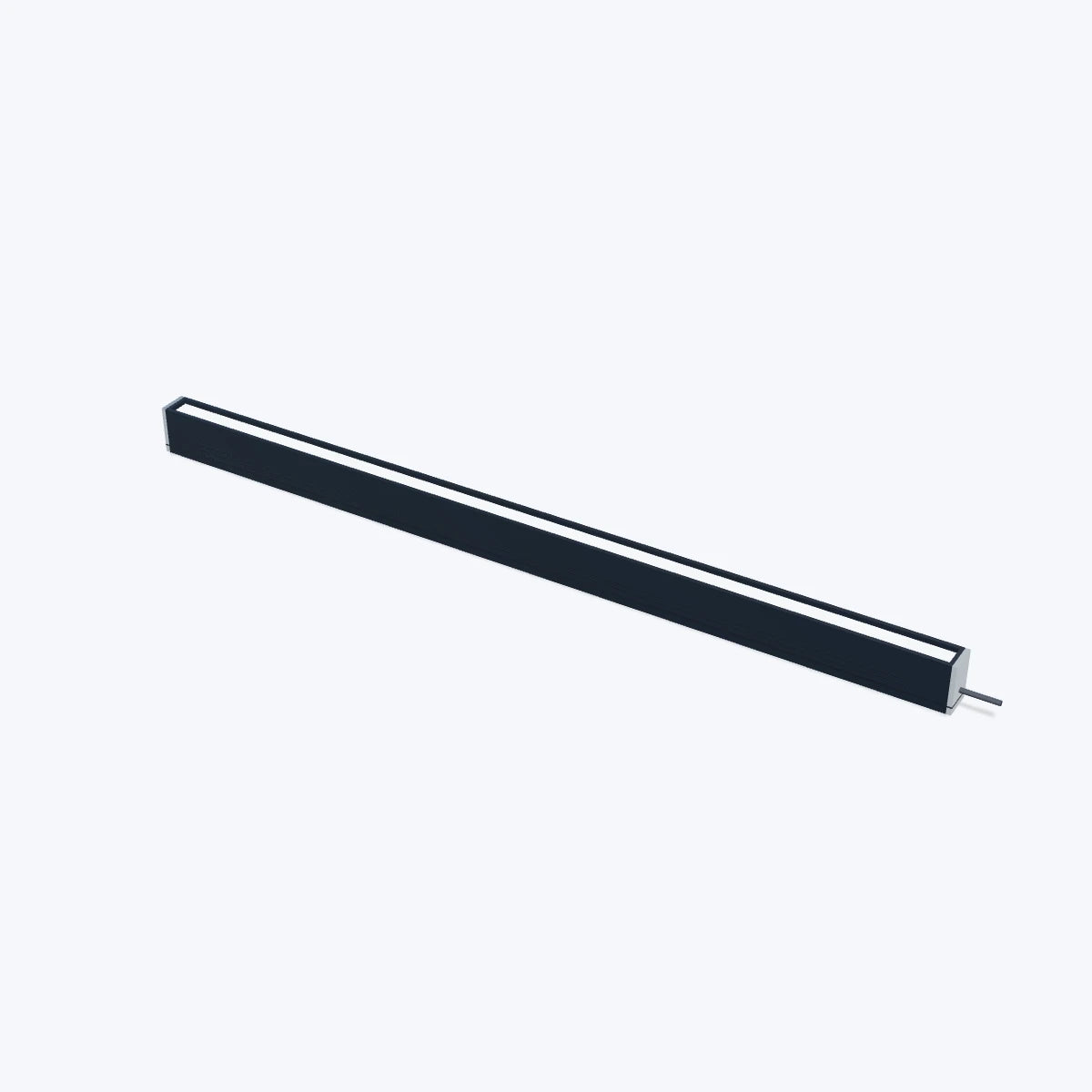

Dimension-based illustration. Housing dimensions follow this model's printed specifications; LED layout, cable position, finish and light colour are representative.
Bar lights
High power bar light, 612 x 22 x 36 mm (LS-BAR-0696)
Model LS-BAR-0696
- ColourRed, Blue, Green, White
- Emitting area600 x 16 mm
- SizeL612xW22xH36(mm)
- Voltage24V
- Power33.6W/33.6W
$579.00
Ships in 2-3 weeks
0.8 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Adopted to high power LED design, the luminance is 2-3 times than original. Adapted to the enrironment where highlight is needed. Easy to install, good heat-dissipation.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0696 |
|---|---|
| Note | UV & IR light can be customized as required. |
| General lens | W |
| Narrow angle lens | L-W |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|---|

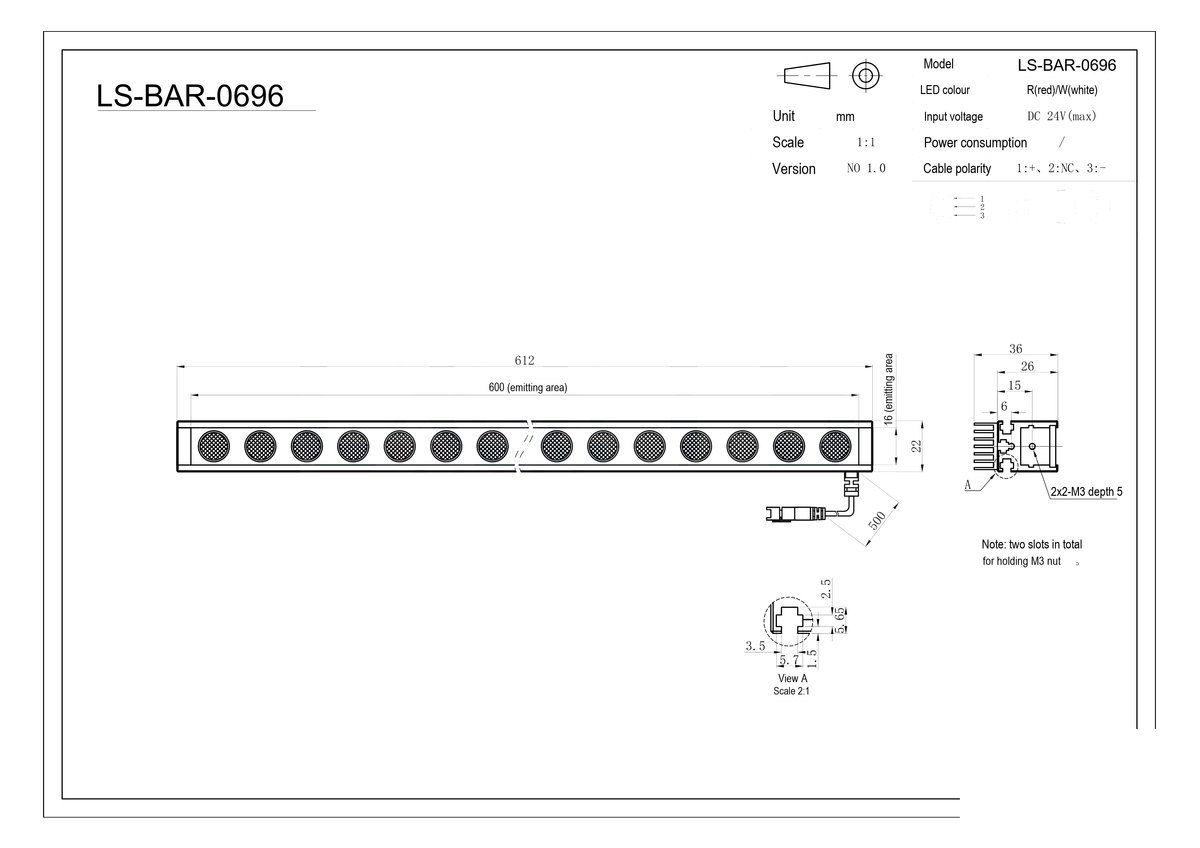

| Cable (mm) | 500 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 600 x 16 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 33.6W/33.6W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L612xW22xH36(mm) |
|---|---|
| Mounting holes | 2×2-M3 depth 5 |
| Mounting | 2 slots for M3 nuts |
| Shipping weight | 0.80 kg |
