Representative photo of this series
Bar lights
High luminance bar light, 1212 x 36 x 26 mm (LS-BAR-0688)
Model LS-BAR-0688
- ColourRed, Blue, Green, White
- Emitting area30 mm
- SizeL1212xW36xH26(mm)
- Voltage24V
- Power51.9W/86.4W
$1,039.00
Ships in 2-3 weeks
1.6 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
The shell is designed by aluminum alloy integrated molding; special heat transferring design; multi-option illumination angles and installation way; High-density LED arrays; can be used for a wide range of applications.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0688 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|---|

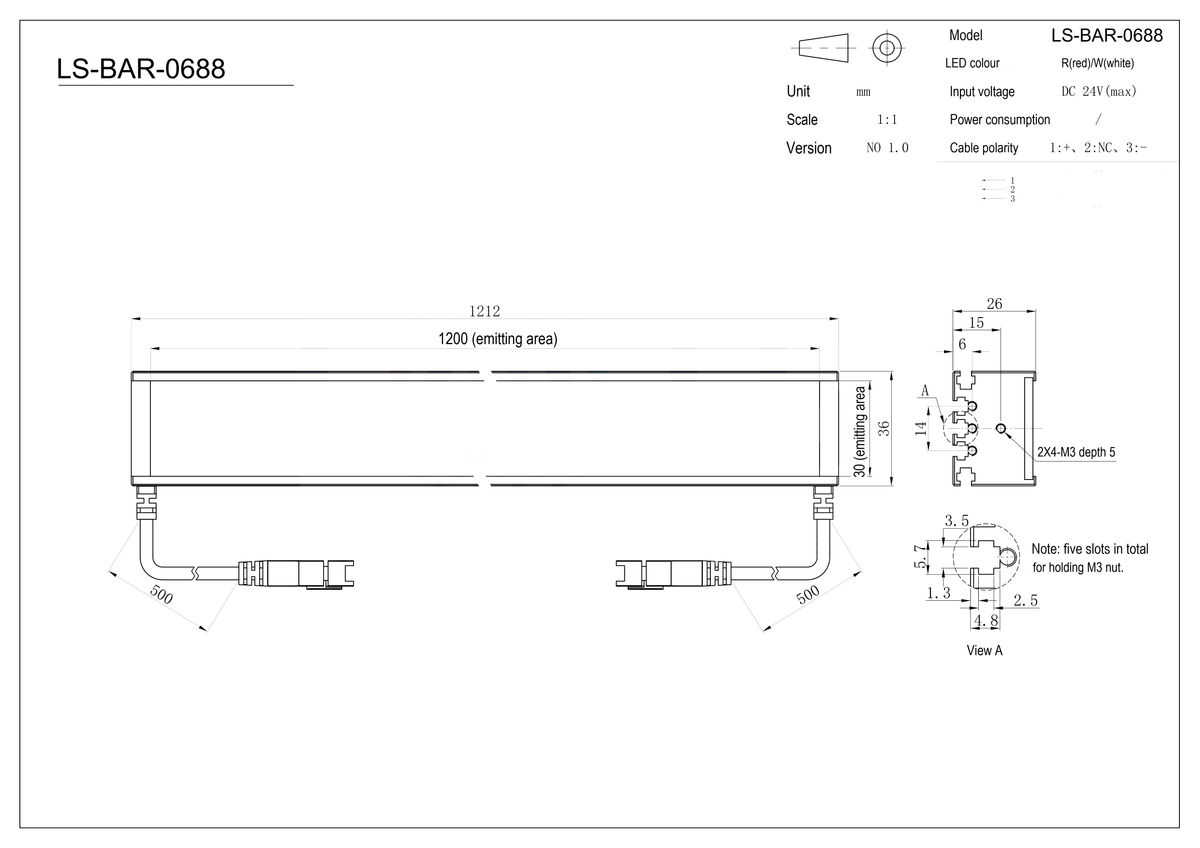

| Cable (mm) | 500 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 30 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 51.9W/86.4W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L1212xW36xH26(mm) |
|---|---|
| Mounting holes | 2×4-M3 depth 5 |
| Shipping weight | 1.60 kg |
Other models in the High luminance bar light (LS-BAR-S74) series
See all 44 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-0665 | Red, Blue, Green, White · 270 x 16 mm | $309.00 | Ships in 2-3 weeks | View |
| LS-BAR-0666 | Red, Blue, Green, White · 30 mm | $319.00 | Ships in 2-3 weeks | View |
| LS-BAR-0667 | Red, Blue, Green, White · 300 x 16 mm | $339.00 | Ships in 2-3 weeks | View |
| LS-BAR-0668 | Red, Blue, Green, White · 30 mm | $339.00 | Ships in 2-3 weeks | View |
| LS-BAR-0670 | Red, Blue, Green, White · 330 x 16 mm | $359.00 | Ships in 2-3 weeks | View |
| LS-BAR-0669 | Red, Blue, Green, White · 30 mm | $359.00 | Ships in 2-3 weeks | View |
| LS-BAR-0671 | Red, Blue, Green, White · 30 mm | $379.00 | Ships in 2-3 weeks | View |
| LS-BAR-0672 | Red, Blue, Green, White · 360 x 16 mm | $389.00 | Ships in 2-3 weeks | View |
| LS-BAR-0673 | Red, Blue, Green, White · 30 mm | $399.00 | Ships in 2-3 weeks | View |
| LS-BAR-0674 | Red, Blue, Green, White · 390 x 16 mm | $419.00 | Ships in 2-3 weeks | View |
| LS-BAR-0675 | Red, Blue, Green, White · 30 mm | $419.00 | Ships in 2-3 weeks | View |
| LS-BAR-0676 | Red, Blue, Green, White · 420 x 16 mm | $439.00 | Ships in 2-3 weeks | View |
| LS-BAR-0677 | Red, Blue, Green, White · 30 mm | $449.00 | Ships in 2-3 weeks | View |
| LS-BAR-0678 | Red, Blue, Green, White · 450 x 16 mm | $459.00 | Ships in 2-3 weeks | View |
| LS-BAR-0679 | Red, Blue, Green, White · 30 mm | $459.00 | Ships in 2-3 weeks | View |
| LS-BAR-0681 | Red, Blue, Green, White · 480 x 16 mm | $489.00 | Ships in 2-3 weeks | View |
| LS-BAR-0680 | Red, Blue, Green, White · 30 mm | $489.00 | Ships in 2-3 weeks | View |
| LS-BAR-0683 | Red, Blue, Green, White · 510 x 16 mm | $509.00 | Ships in 2-3 weeks | View |
| LS-BAR-0682 | Red, Blue, Green, White · 30 mm | $509.00 | Ships in 2-3 weeks | View |
| LS-BAR-0684 | Red, Blue, Green, White · 30 mm | $579.00 | Ships in 2-3 weeks | View |
| LS-BAR-0685 | Red, Blue, Green, White · 30 mm | $729.00 | Ships in 2-3 weeks | View |
| LS-BAR-0686 | Red, Blue, Green, White · 30 mm | $809.00 | Ships in 2-3 weeks | View |
| LS-BAR-0687 | Red, Blue, Green, White · 30 mm | $889.00 | Ships in 2-3 weeks | View |
| LS-BAR-0689 | Red, Blue, Green, White · 30 mm | $1,489.00 | Ships in 2-3 weeks | View |
