Representative photo of this series
Bar lights
High luminance bar light, 387 x 36 x 26 mm (LS-BAR-0673)
Model LS-BAR-0673
- ColourRed, Blue, Green, White
- Emitting area30 mm
- SizeL387xW36xH26(mm)
- Voltage24V
- Power16.2W/27.0W
$399.00
Ships in 2-3 weeks
0.65 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
The shell is designed by aluminum alloy integrated molding; special heat transferring design; multi-option illumination angles and installation way; High-density LED arrays; can be used for a wide range of applications.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0673 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|---|

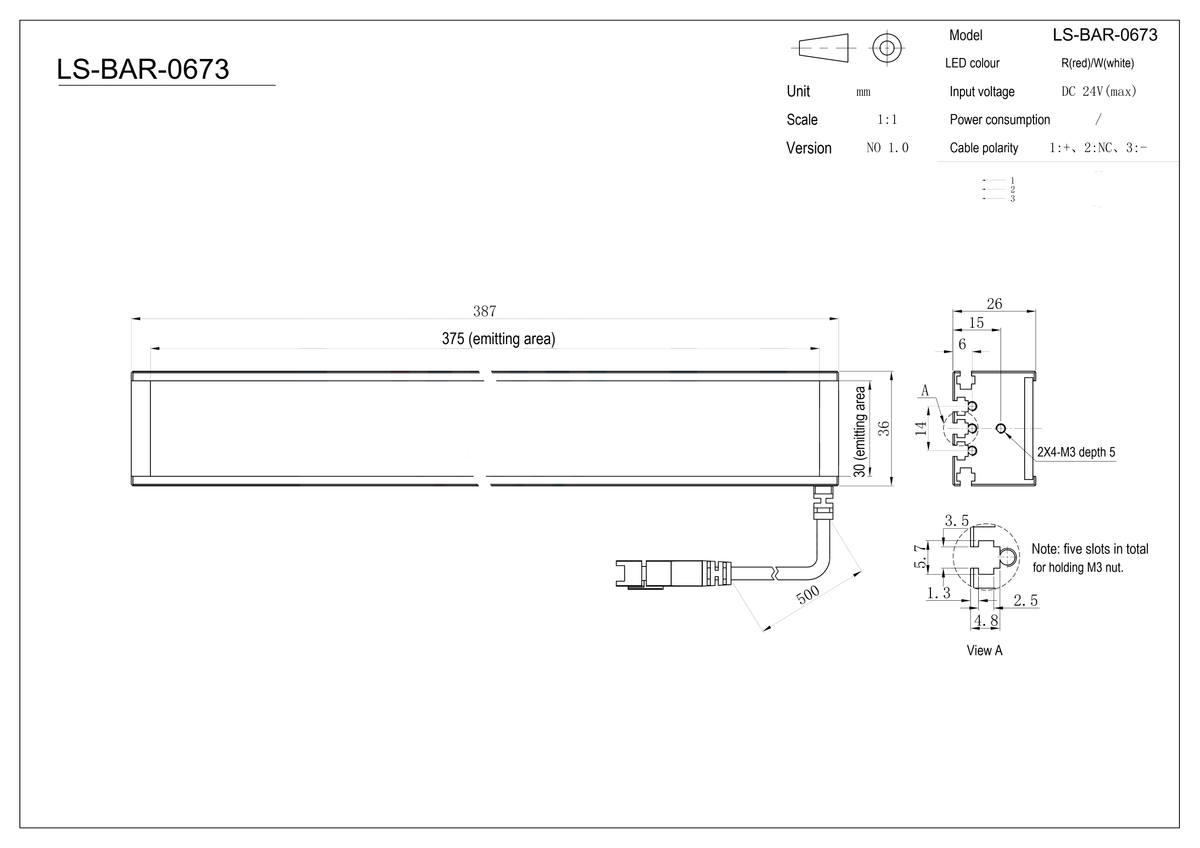

| Cable (mm) | 500 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 30 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 16.2W/27.0W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L387xW36xH26(mm) |
|---|---|
| Mounting holes | 2×4-M3 depth 5 |
| Shipping weight | 0.65 kg |
