Representative photo of this series

Bar lights

High luminance bar light, 282 x 22 x 26 mm (LS-BAR-0665)

Model LS-BAR-0665

ColourRed, Blue, Green, White
Emitting area270 x 16 mm
SizeL282xW22xH26(mm)
Voltage24V
Power6.5W/9.8W

$309.00

Ships in 2-3 weeks

0.4 kg shipping weight

Color Red Blue Green White

Volume pricing, Net 30 terms or a formal quote for purchasing?

The shell is designed by aluminum alloy integrated molding; special heat transferring design; multi-option illumination angles and installation way; High-density LED arrays; can be used for a wide range of applications.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BAR-0665
Note	UV & IR light can be customized as required.

Interfaces and I/O

Cable polarity	1: +, 2: NC, 3: -

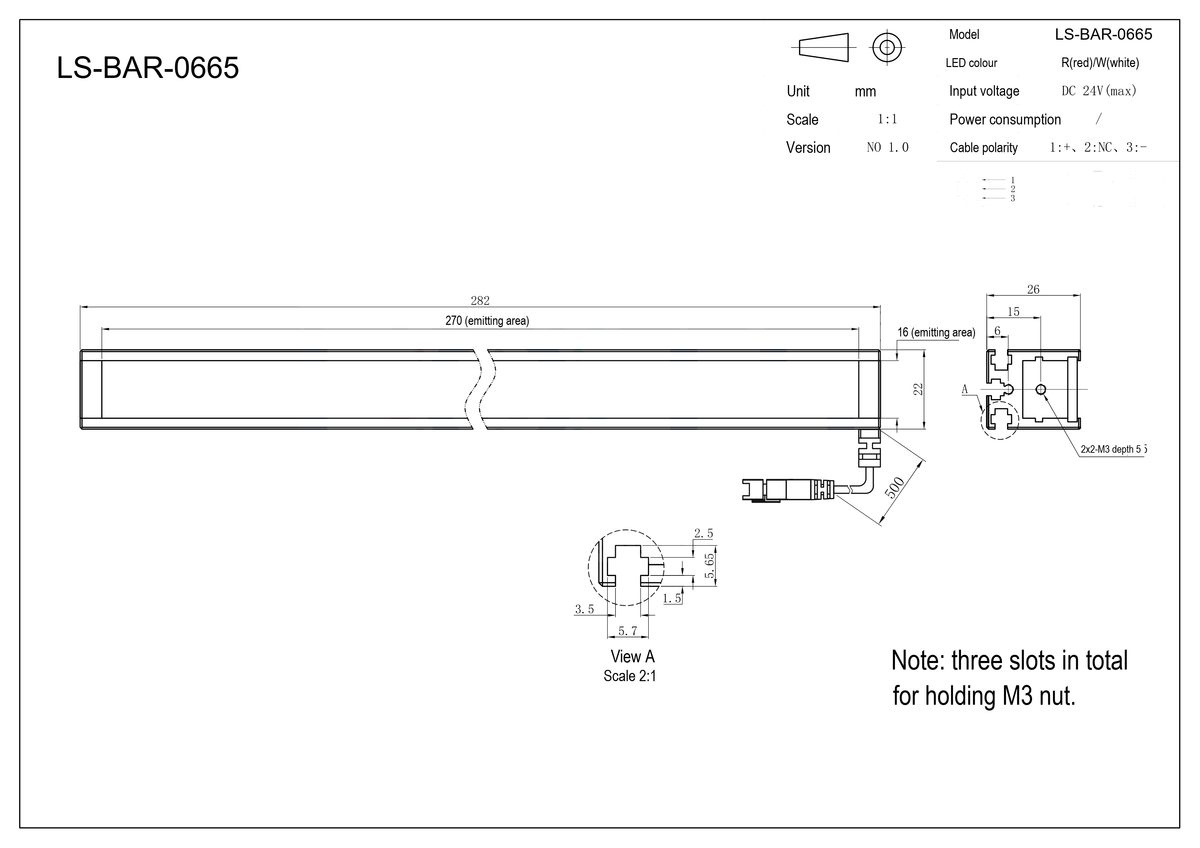

Cable (mm)	500 (drawing)

Light

LED colour	R(red)/W(white)
Emitting surface (mm)	270 x 16

Electrical

Voltage	24V
Power	6.5W/9.8W
Input voltage	DC 24V (max)

Mechanical

Dimension	L282xW22xH26(mm)
Mounting holes	2×2-M3 depth 5
Shipping weight	0.40 kg

Downloads

Datasheet (PDF)LS-BAR-0665 · 977 KB

Features

Small angle LED array design, high luminance
Processed by high precision mould, shorten the difference between different batch. high heat transmitting performance
Multiple installation method, easy to install
Different transmittance diffuser plate optional

Applications

Big size LCD panel defect inspection
Metal surface defect inspection
Printing character defect inspection
Connector pin flatness inspection
