Bar lights

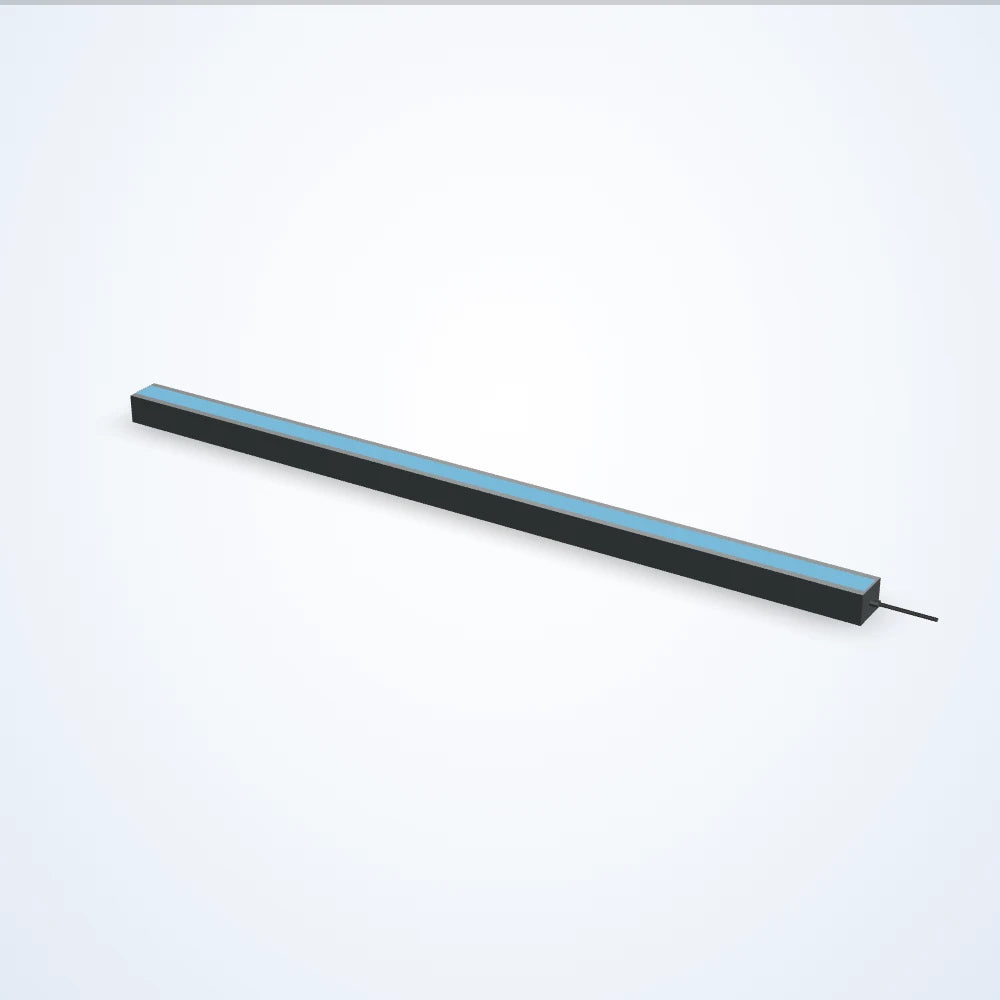

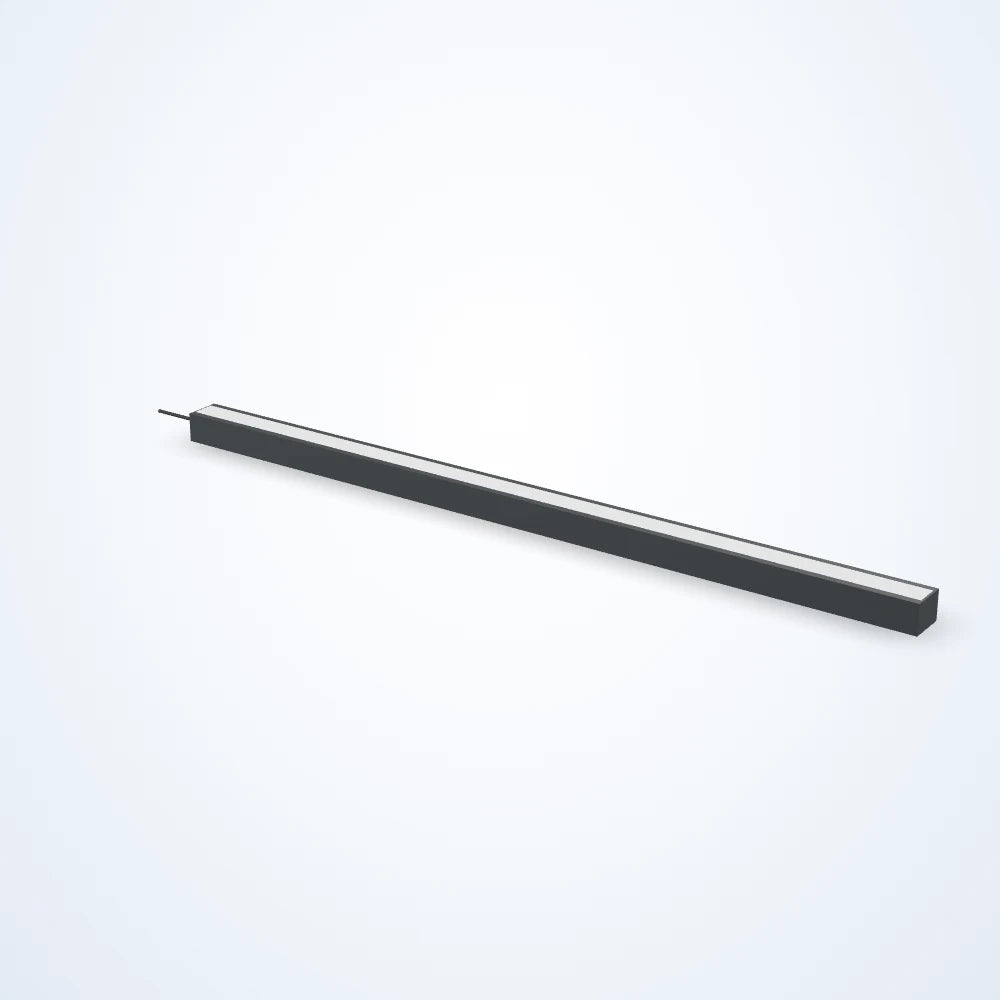

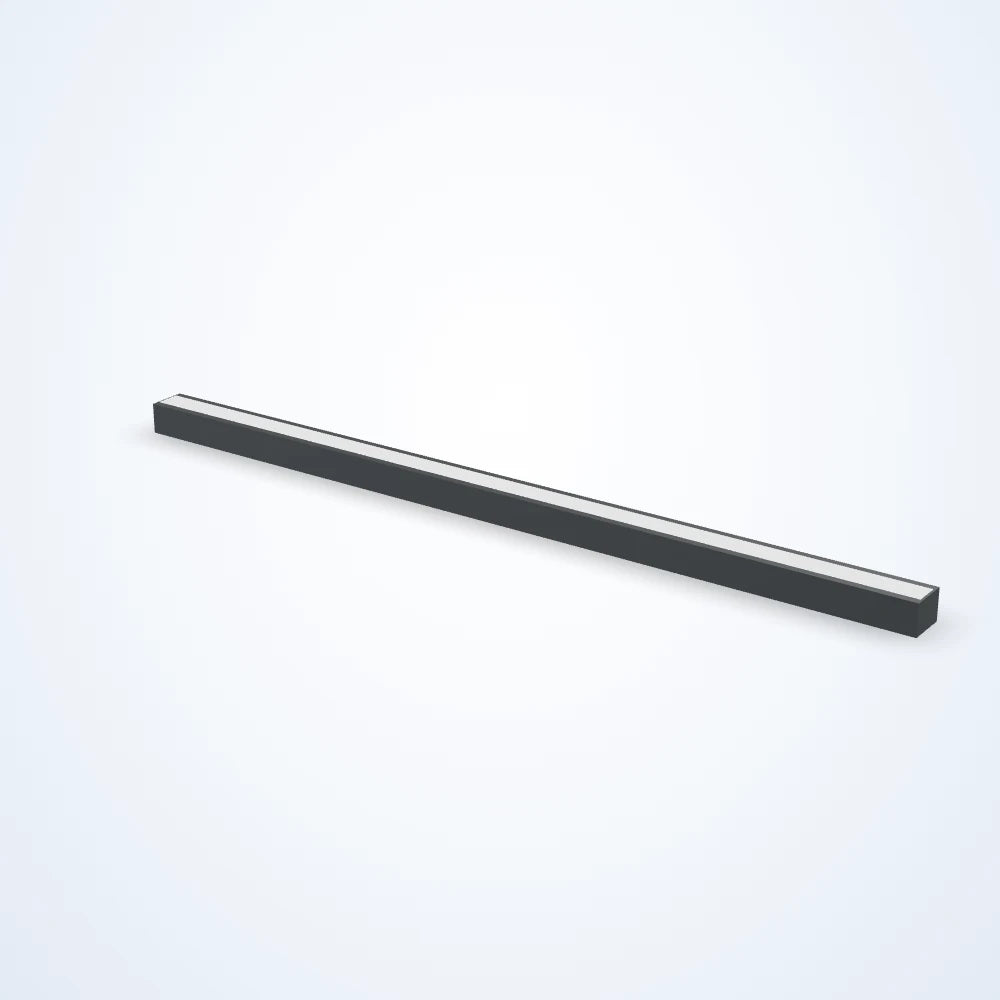

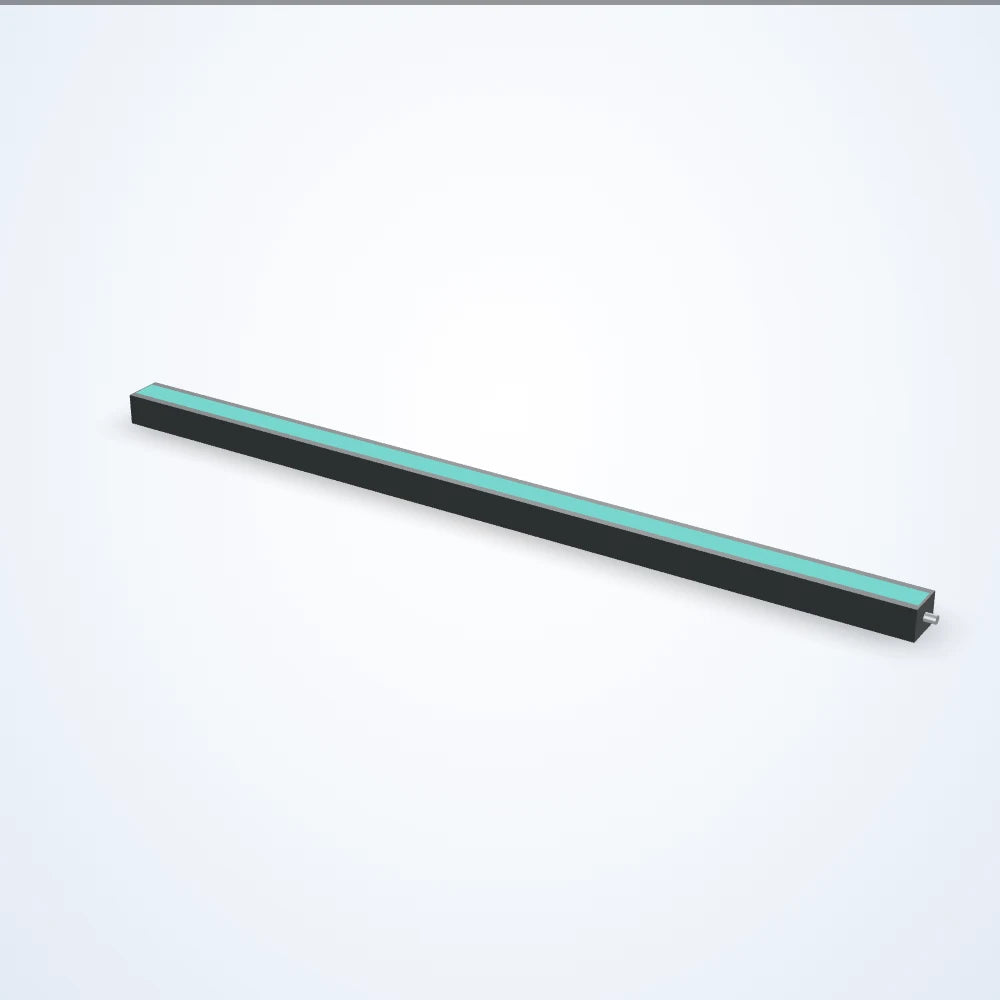

Bar light, 1223 mm lit length (LS-BAR-0110-L8)
Model LS-BAR-0110-L8
- ColourWhite, Infrared, Red, Green, Blue
- Voltage24 VDC
- TypeStandard
- Wavelength730 nm, 850 nm, 940 nm
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 594 available
Configuration LS-BAR-0110-0795 $2,049.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED bar light for directional, low-angle or angled illumination: edges, surface texture, engraving and label reading, mounted singly or in pairs and quads. Lit area 1223 x 35.3 mm; 24 VDC supply. Choose colour, lens / beam angle, connector, driver included, driver location below (594 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0110-L8 |
|---|---|
| Connection at light | Connectorized / Hardwired (by configuration) |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| Compliance | CE, IEC 62471, RoHS |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | Constant On Only |
| Maximum constant on current (mA) | 113 / 145 (by configuration) |
| Maximum current (overcurrent strobe) (mA) | 99999 (by configuration) |
| Maximum input power constant on (W) | 2.7 / 3.5 (by configuration) |
| Maximum input power overcurrent strobe (W) | 99999 (by configuration) |
| Maximum overcurrent strobe latency (µs) | 99999 (by configuration) |
| NPN trigger voltage (V) | < 1 VDC (by configuration) |
| PNP trigger voltage (V) | 4-24 VDC (by configuration) |

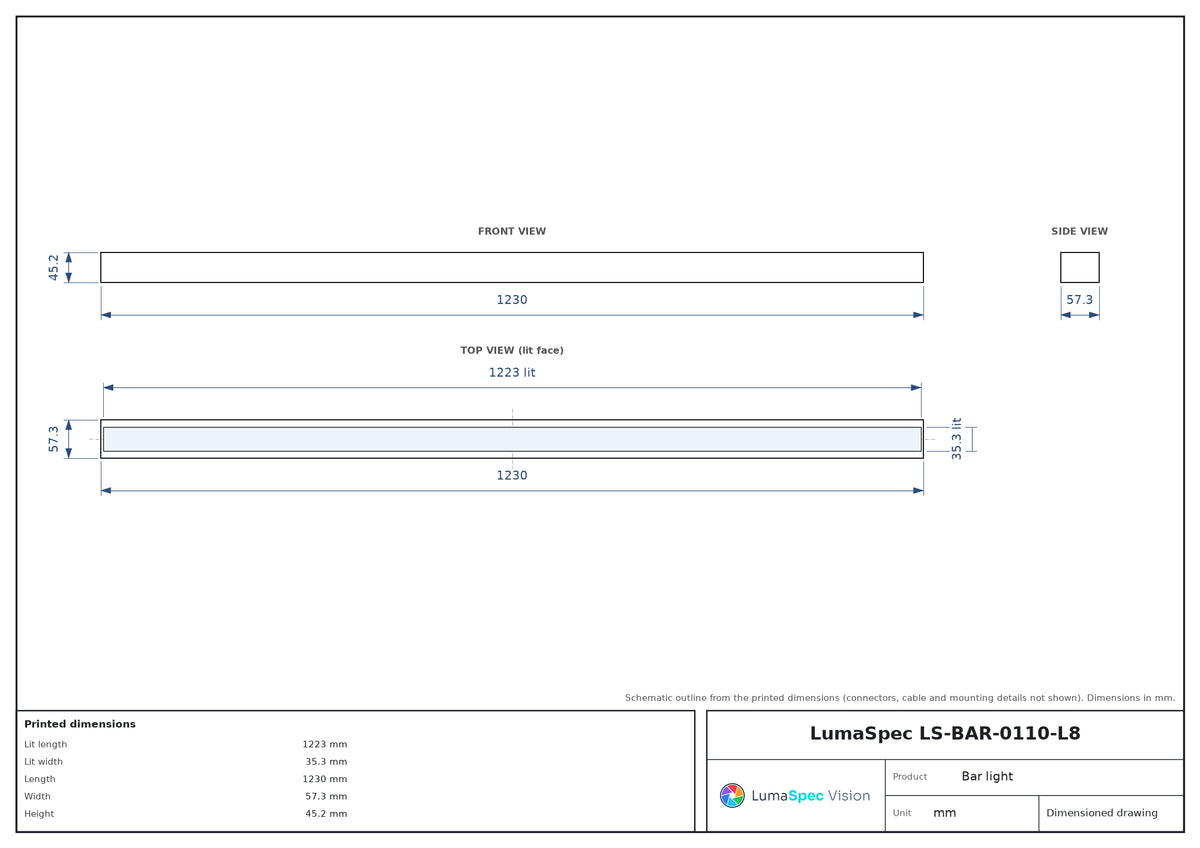

Mechanical
| Lit length (mm) | 1223 |
|---|---|
| Lit width (mm) | 35.3 |
| Length (mm) | 1230 |
| Width (mm) | 57.3 |
| Height (mm) | 45.2 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
