Bar lights

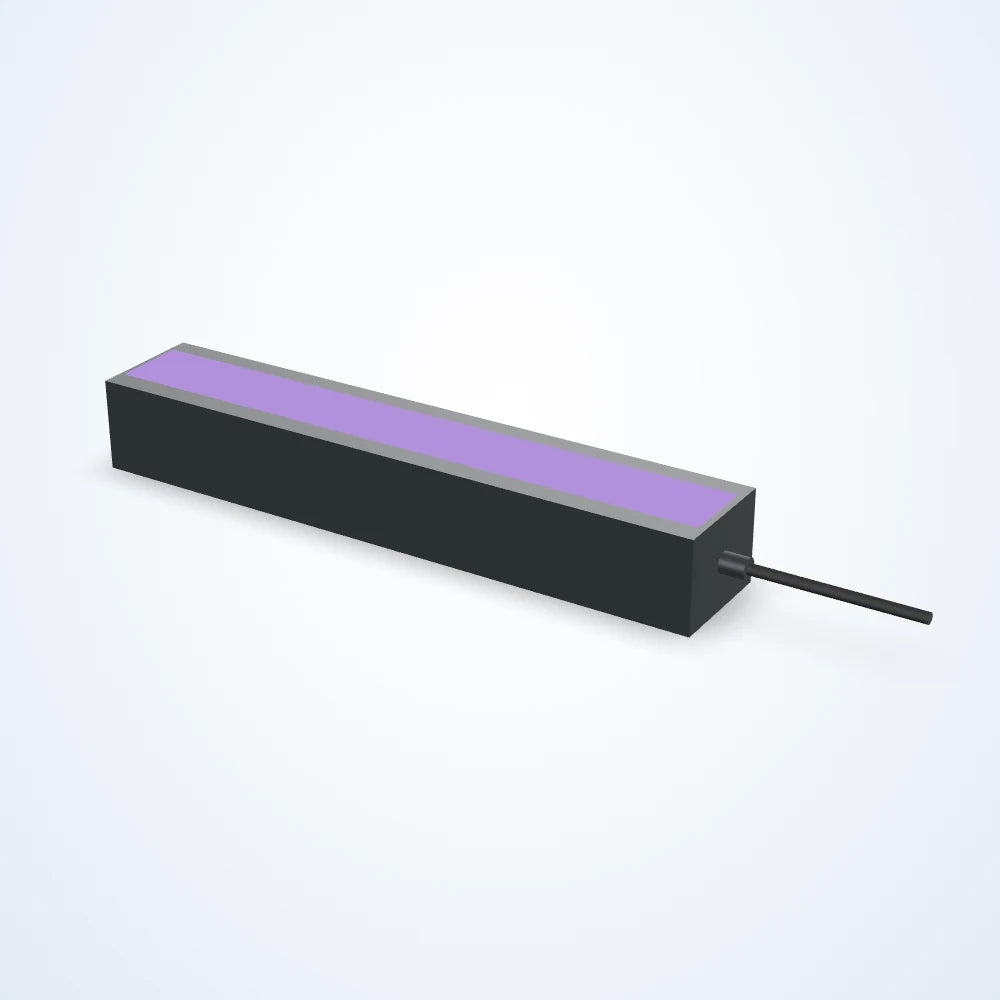

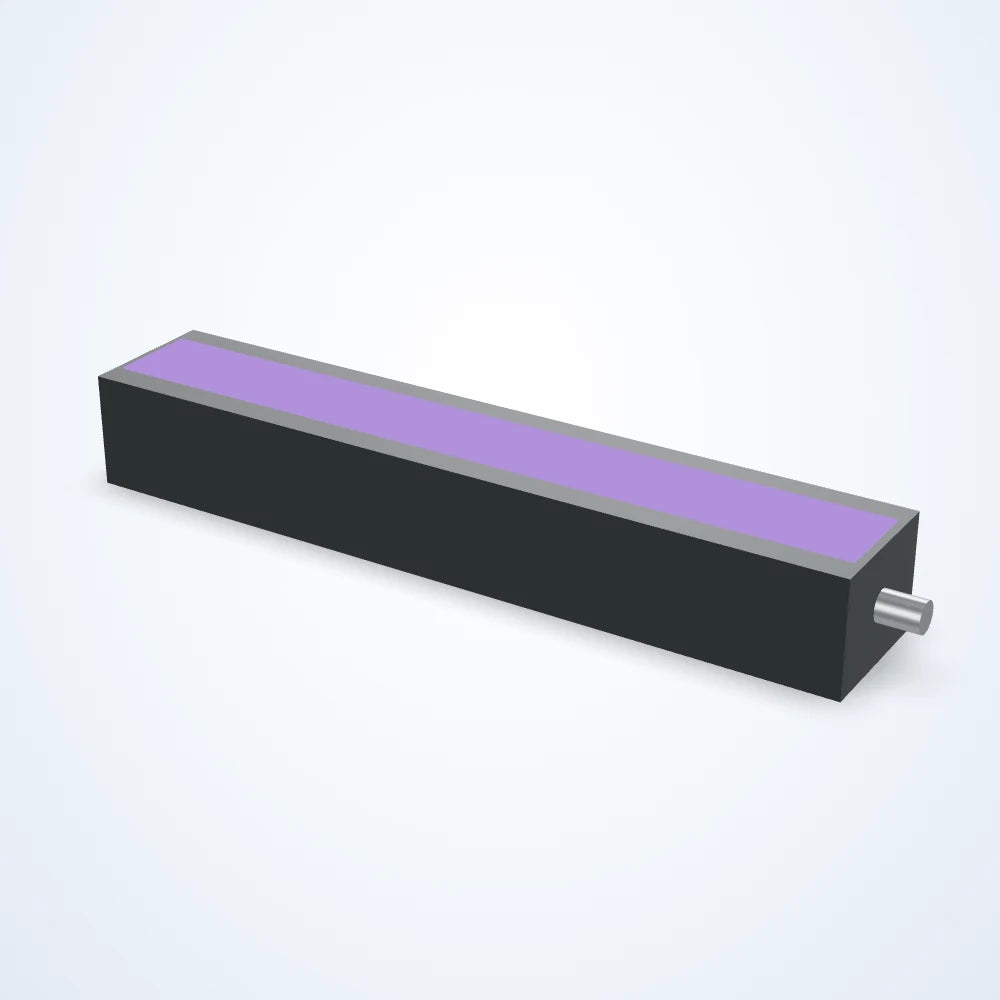

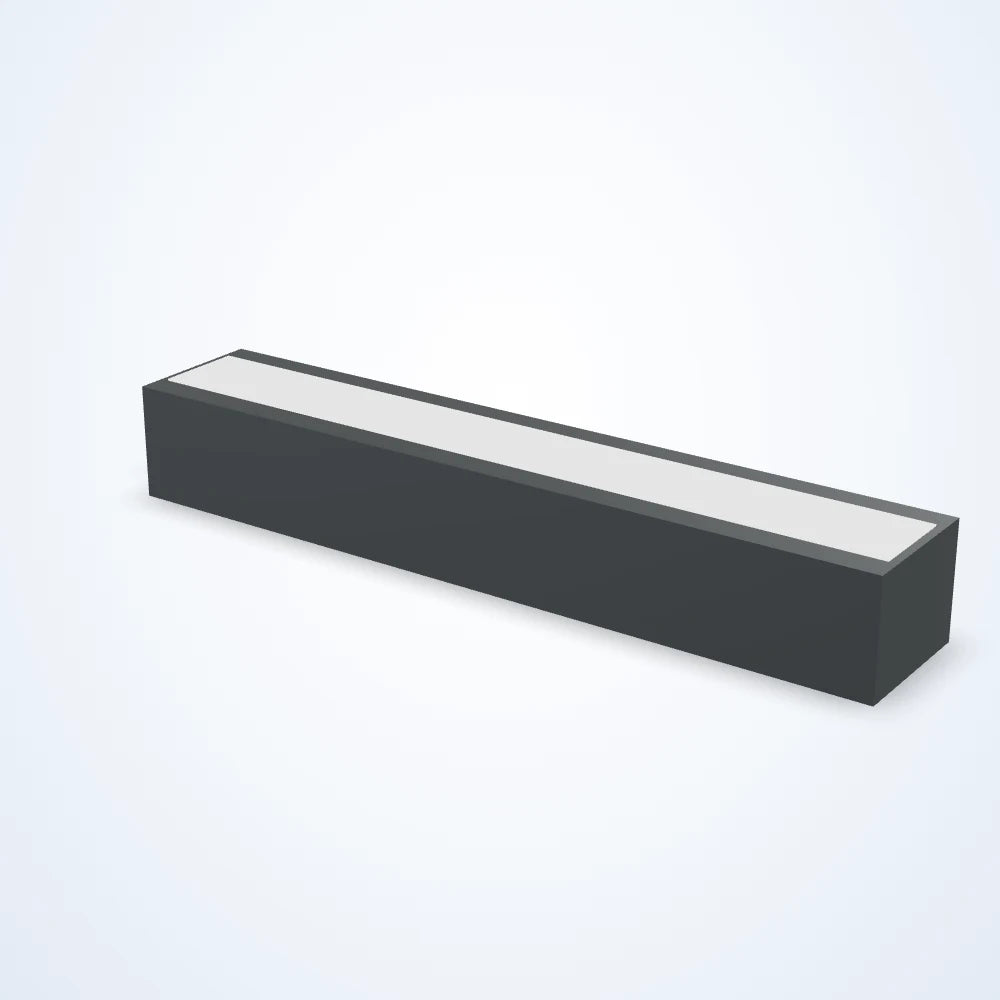

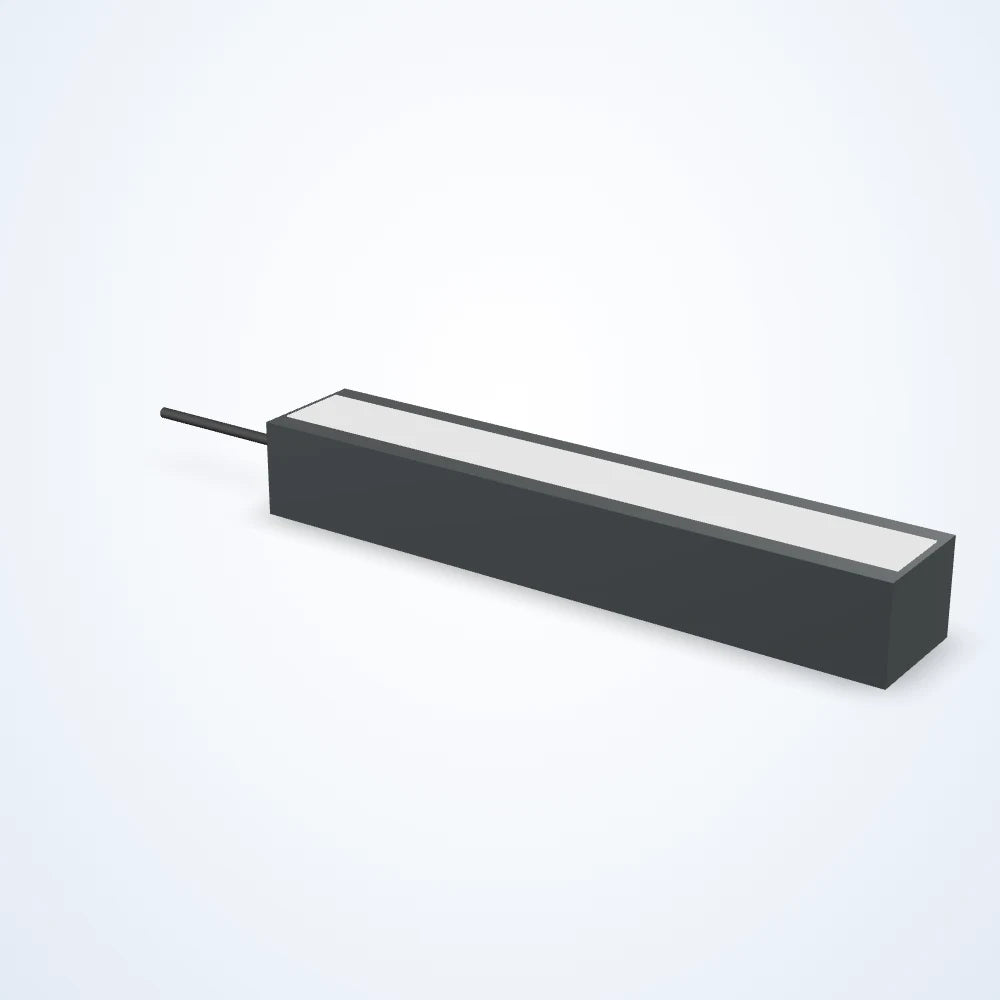

Bar light, 305.8 mm lit length (LS-BAR-0110-L2)
Model LS-BAR-0110-L2
- ColourGreen, Infrared, Red, UV, Blue, White
- Voltage24 VDC
- TypeStandard
- Wavelength365 nm, 375 nm, 385 nm, 395 nm, 405 nm, 730 nm, 850 nm, 940 nm
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 772 available
Configuration LS-BAR-0110-0115 $1,029.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED bar light for directional, low-angle or angled illumination: edges, surface texture, engraving and label reading, mounted singly or in pairs and quads. Lit area 305.8 x 35.3 mm; 24 VDC supply. Choose colour, lens / beam angle, connector, driver included, driver location below (772 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0110-L2 |
|---|---|
| Connection at light | Connectorized / Hardwired (by configuration) |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| Compliance | CE, IEC 62471, RoHS |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | Constant On Only |
| Maximum constant on current (mA) | 28 / 36 (by configuration) |
| Maximum current (overcurrent strobe) (mA) | 99999 (by configuration) |
| Maximum input power constant on (W) | 0.7 / 0.9 (by configuration) |
| Maximum input power overcurrent strobe (W) | 99999 (by configuration) |
| Maximum overcurrent strobe latency (µs) | 99999 (by configuration) |
| NPN trigger voltage (V) | < 1 VDC (by configuration) |
| PNP trigger voltage (V) | 4-24 VDC (by configuration) |

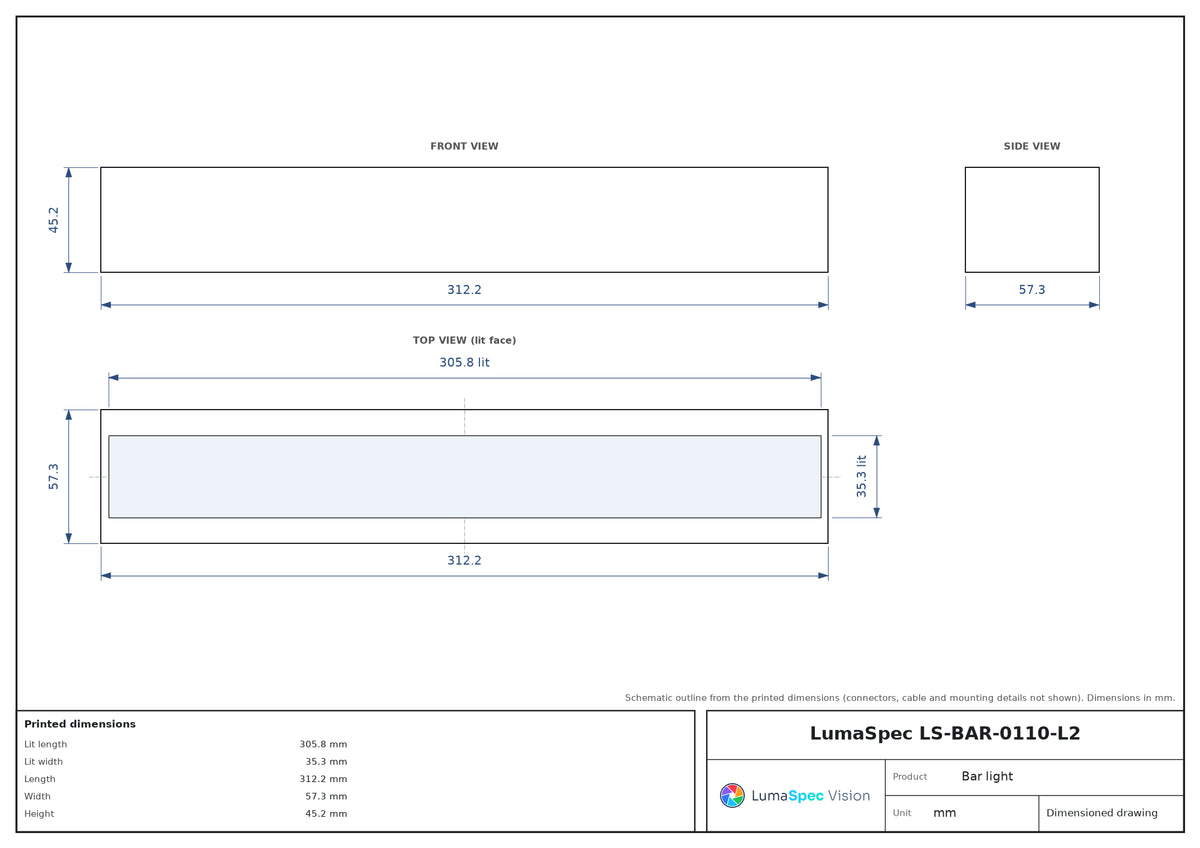

Mechanical
| Lit length (mm) | 305.8 |
|---|---|
| Lit width (mm) | 35.3 |
| Length (mm) | 312.2 |
| Width (mm) | 57.3 |
| Height (mm) | 45.2 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
Other models in the Bar light series, 45.2 mm high series
See all 14 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-0110-L1 | 152.9 x 35.3 mm | $589.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0110-L3 | 458.7 x 35.3 mm | $1,029.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0110-L4 | 611.6 x 35.3 mm | $1,249.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0110-L5 | 764.5 x 35.3 mm | $1,459.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0110-L6 | 917.4 x 35.3 mm | $1,669.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0110-L7 | 1070 x 35.3 mm | $1,859.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0110-L8 | 1223 x 35.3 mm | $2,049.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0110-L9 | 1376 x 35.3 mm | $2,229.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0110-L10 | 1529 x 35.3 mm | $2,419.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0110-L11 | 1682 x 35.3 mm | $2,589.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0110-L12 | 1835 x 35.3 mm | $2,759.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0110-L13 | 1988 x 35.3 mm | $2,929.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BAR-0110-L14 | 2141 x 35.3 mm | $3,099.00 Quote | Built to order: ships in about 4-5 weeks | View |
