3D depth camera (LS-8xx / LS-461), 1.2 MP (LS-815-E1)
  • 3D depth camera (LS-8xx / LS-461), 1.2 MP (LS-815-E1)

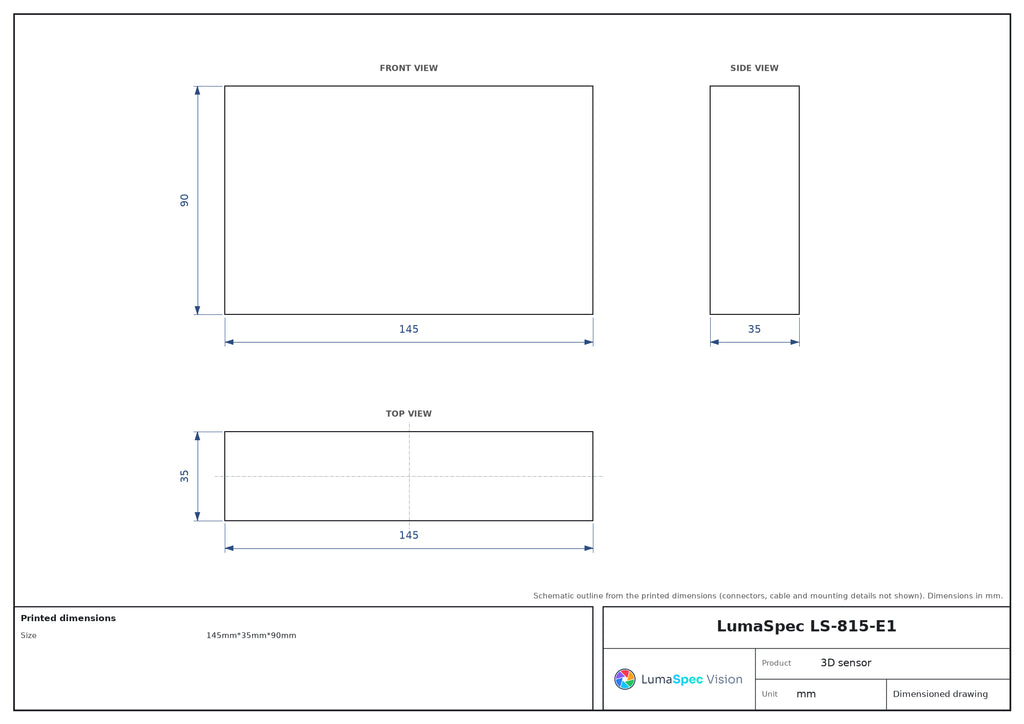

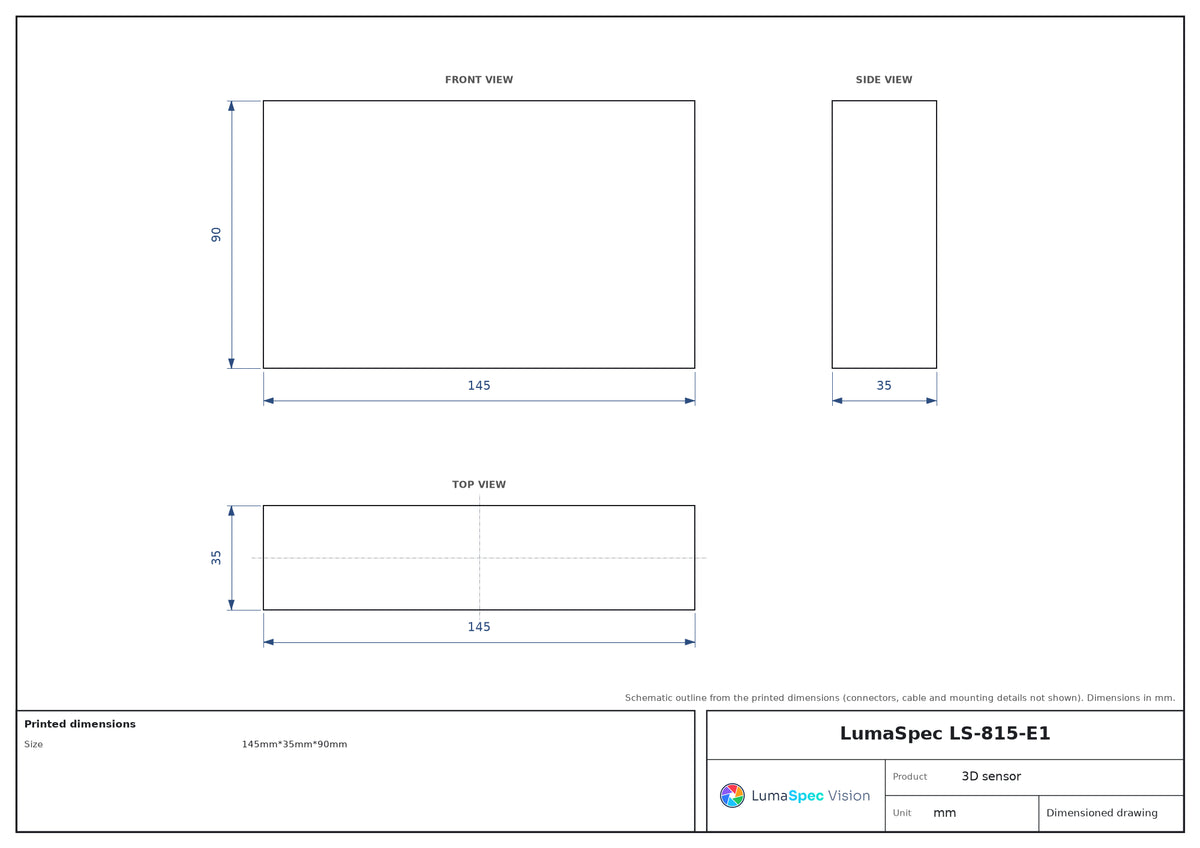

  • LS-815-E1 dimensions (mm)

3D sensors

3D depth camera (LS-815-E1)

Model LS-815-E1

  • Resolution1280*960
  • TypeDepth / ToF camera
  • Measurement range400 ~ 8000 mm
  • FOV (H/V)60°/48°
$1,249.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.97 kg shipping weight

Volume pricing, Net 30 or a formal quote?

3D depth camera IP65 is waterproof, dustproof.Meets IEC standard 60529.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-815-E1
Measurement range(mm)400 ~ 8000
FOV (H/V)60°/48°
Z Accuracy(mm)1.56mm@1000mm
X/Y Accuracy(mm)3.2mm@1000mm
Accuracy (Z)1.56mm@1000mm; 1.80mm@1500mm
Accuracy (X,Y)3.2mm@1000mm; 4.8mm@1500mm

Optics

Working distance0.4m-8m

Sensor and imaging

Depth resolution1280*960
RGB resolution2560*1920

Interfaces and I/O

Power supply and trigger interface8 pin aviation interface
Data interfaceGigabit Ethernet M12 X-Code aviation interface

Environment and compliance

TemperatureStorage:-20℃~55℃; Controls:-10℃~50℃

Electrical

Power&Trigger8-pin aviation plug
Power supplyDC 24V / IEEE802.3af/at PoE
Power consumption5.0W ~ 11.3W
Protection levelIP65
VoltageDC 24V / IEEE802.3af/at PoE

Mechanical

Size145mm*35mm*90mm
Weight620g

Other models in the 3D depth camera (LS-8xx / LS-461) series

See all 5 models
ModelSize / key dataPriceAvailabilityLink
LS-461 640*480 · RJ45 $699.00 3 in stock View
LS-820 1280*800 · RJ45 $849.00 5 in stock View
LS-811 1280*960 · M12 X-Coding $1,049.00 3 in stock View
LS-851 1280*960 · M12 X-Coding $1,049.00 5 in stock View
