3D sensors

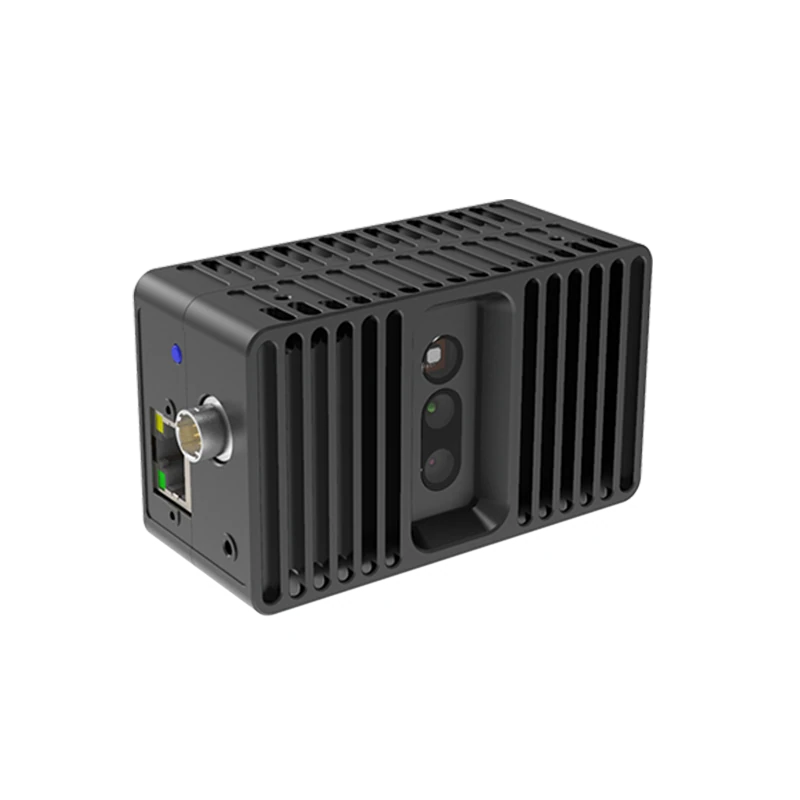

3D depth camera (LS-461)
Model LS-461
- Resolution640*480
- InterfaceRJ45
- TypeDepth / ToF camera
- Measurement range100 ~ 1000 mm
$699.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.54 kg shipping weight
Volume pricing, Net 30 or a formal quote?
3D depth camera IP65 is waterproof, dustproof.Meets IEC standard 60529.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-461 |
|---|---|
| Measurement range(mm) | 100 ~ 1000 |
| FOV (H/V) | 65°/50° |
| Z Accuracy(mm) | ±5+1% of depth [400, 2200] |
| X/Y Accuracy(mm) | ±5+1% of depth [400, 2200] |
| Z Accuracy(mm) | ±15+1% of depth (2200, 4300] |
| X/Y Accuracy(mm) | ±15+1% of depth (2200, 4300] |
| Accuracy (Z) | ±5 mm + 1% of depth [400 mm , 2200 mm]; ±15 mm + 1% of depth (2200 mm , 4300 mm] |
Optics
| Working distance | 0.1m-10m |
|---|
Sensor and imaging
| Depth resolution | 640*480 |
|---|---|
| RGB resolution | 1920*1048 |
Interfaces and I/O
| Power supply and trigger interface | HR10A-7P-6S (HRS) |
|---|---|
| Data interface | RJ45 |
Environment and compliance
| Temperature | Storage:-10℃~55℃; Controls:0℃~45℃ |
|---|
Electrical
| Power&Trigger | HR10A-7P-6S (HRS) |
|---|---|
| Power supply | DC 12 V / 24 V |
| Power consumption | 1.5W ~ 6.3W |
| Protection level | IP50 |
| Voltage | DC 12 V / 24 V |
Mechanical
| Size | 96.4mm*67.5mm*35.8mm |
|---|---|
| Weight | 315g |
