Representative photo of this series
Backlights
400 x 400 mm Collimated backlight (LS-3FLP400400)
Model LS-3FLP400400
- ColourRed, Blue, White
- Voltage24 V
- TypeCollimated
- ConnectorSM3
$649.00
In stock - ships the same business day (2 available, order by 2 PM ET)
4.4 kg shipping weight
Volume pricing, Net 30 or a formal quote?
3.0 collimated back light high directional LED beam with precision lens can uniformly illuminate and suppress stray light.Support customized color, wavelength, luminous size, etc.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-3FLP400400 |
|---|---|
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Quality service | one year product warranty, technical support |

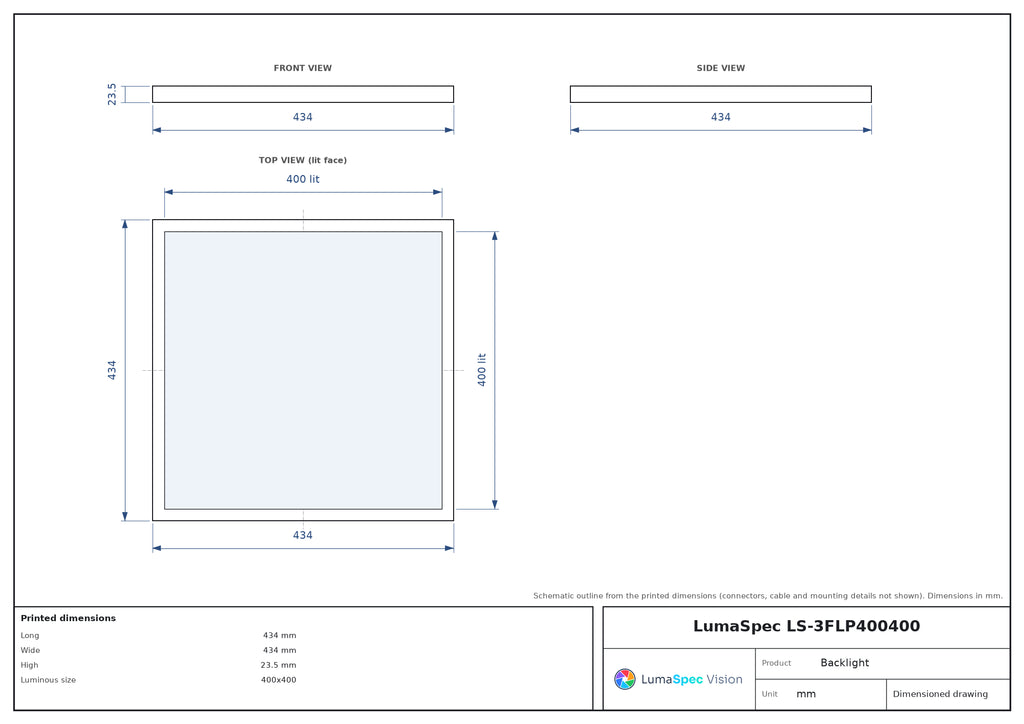

| Long (mm) | 434 |
| Wide (mm) | 434 |
| High (mm) | 23.5 |
| Remarks | SM3 (1.3 pin) interface |
Interfaces and I/O
| Interface | SM3 (1.3 pin) |
|---|
Light
| LED type | SMD |
|---|---|
| Luminous size (mm) | 400x400 |
| Wavelength red | 620-630 nm |
| Wavelength blue | 460-470 nm |
| Colour temperature white | 6000-7500 K |
Environment and compliance
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
|---|
Electrical
| Power tolerance | actual product power within ±10% of the table is the normal range |
|---|---|
| Voltage (V) | 24 |
| Power red (W) | 104.4 |
| Power blue/white (W) | 104.4 |
Mechanical
| Installation method | M3 nut slot (four-sided M3 nut grooves) and bottom side installation |
|---|---|
| Wire length | 500 mm (drawing) |
| Shipping weight | 4.40 kg |
Other models in the Collimated backlight (3FLP series) series
See all 24 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-3FLP2929 | 29 x 29 mm | $79.00 | 9 in stock | View |
| LS-3FLP5050 | 50 x 50 mm | $89.00 | 15 in stock | View |
| LS-3FLP6060 | 60 x 60 mm | $89.00 | 10 in stock | View |
| LS-3FLP7070 | 70 x 70 mm | $99.00 | 10 in stock | View |
| LS-3FLP8080 | 80 x 80 mm | $99.00 | 10 in stock | View |
| LS-3FLP9090 | 90 x 90 mm | $109.00 | 9 in stock | View |
| LS-3FLP100100 | 100 x 100 mm | $109.00 | 14 in stock | View |
| LS-3FLP120120 | 120 x 120 mm | $129.00 | 8 in stock | View |
| LS-3FLP200100 | 200 x 100 mm | $149.00 | 8 in stock | View |
| LS-3FLP150150 | 150 x 150 mm | $159.00 | 12 in stock | View |
| LS-3FLP180180 | 180 x 180 mm | $189.00 | 11 in stock | View |
| LS-3FLP200150 | 200 x 150 mm | $189.00 | 11 in stock | View |
| LS-3FLP200200 | 200 x 200 mm | $219.00 | 11 in stock | View |
| LS-3FLP300150 | 300 x 150 mm | $239.00 | 9 in stock | View |
| LS-3FLP250200 | 250 x 200 mm | $259.00 | 11 in stock | View |
| LS-3FLP300200 | 300 x 200 mm | $289.00 | 10 in stock | View |
| LS-3FLP250250 | 250 x 250 mm | $299.00 | 10 in stock | View |
| LS-3FLP400200 | 400 x 200 mm | $359.00 | 9 in stock | View |
| LS-3FLP350250 | 350 x 250 mm | $389.00 | 11 in stock | View |
| LS-3FLP300300 | 300 x 300 mm | $399.00 | 12 in stock | View |
| LS-3FLP400300 | 400 x 300 mm | $509.00 | 12 in stock | View |
| LS-3FLP350350 | 350 x 350 mm | $519.00 | 9 in stock | View |
| LS-3FLP450300 | 450 x 300 mm | $559.00 | 14 in stock | View |
