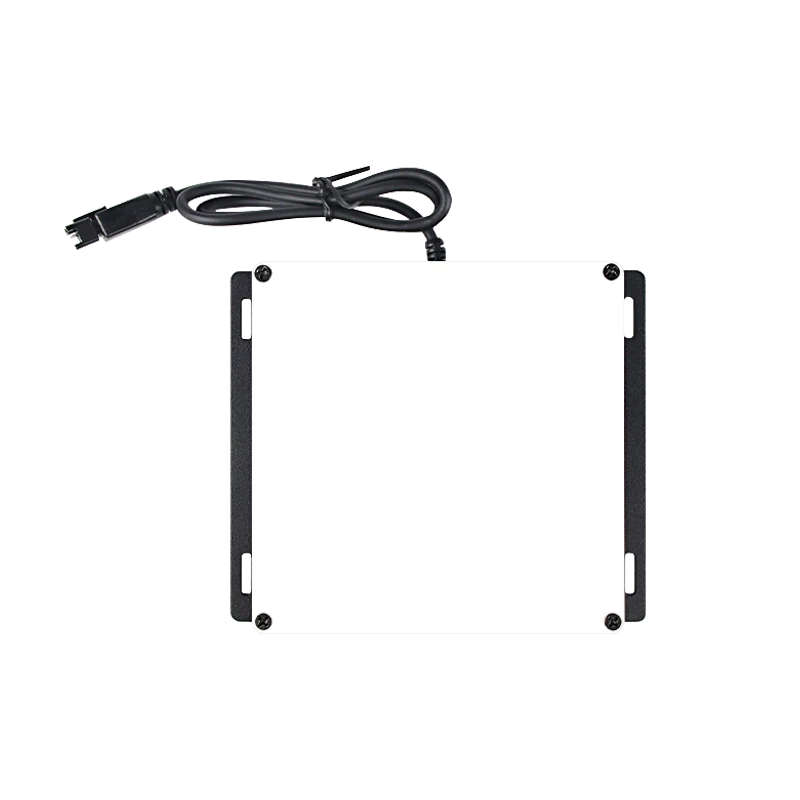

100 x 100 mm Collimated backlight (3FLP series) (LS-3FLP100100)
  • 100 x 100 mm Collimated backlight (3FLP series) (LS-3FLP100100)
  • LS-3FLP100100 dimensions (mm)

Backlights

100 x 100 mm Collimated backlight, 130 x 110 x 22.5 mm (LS-3FLP100100)

Model LS-3FLP100100

  • ColourRed, Blue, White
  • Voltage24 V
  • TypeCollimated
  • ConnectorSM3
$109.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.55 kg shipping weight

Color

Volume pricing, Net 30 or a formal quote?

3.0 collimated back light high directional LED beam with precision lens can uniformly illuminate and suppress stray light.Support customized color, wavelength, luminous size, etc.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-3FLP100100
M3 nut slot√
CategoryCollimated backlight
Terminal PlugFlat head 3PIN2 pin
CoolingNaturalair cooling
Electrical insulation capacityDC500V Insulation resistance>20 megohms
Pressure Resistance RequirementsAC1000 V10mA/5S
Flammability RatingIEC60707
Value-added ServicesOne year free technical support
Long (mm)130
Wide (mm)110
High (mm)22.5
RemarksSM3 (1.3 pin) interface

Interfaces and I/O

InterfaceSM3 (1.3 pin)
Cable length0.5m
Connector Definition1:positive(+)red; 2:leave empty; 3:negative(-)black.
Mating cable (optional)1.Light source extension cable 2.Connector adapter cable

Light

LED typeSMD
Luminous size (mm)100*100
Colorred/white/blue/green
Wavelengthred: 620-635nm; white: —; blue: 465-470nm; green: 525-530nm
Color temperaturered: —; white: 6000-6500K; blue: —; green: —
Brightness Controller (optional)1.Analog Controller 2.Digital Controller

Environment and compliance

Operating Temperature and HumidityTemperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing)
LifespanUnder our specified conditions of use,50000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value

Electrical

Power toleranceactual product power within ±10% of the table is the normal range
Voltage (V)24
Power red (W)8.4
Power blue/white (W)10.0

Mechanical

Installation methodM3 nut slot (four-sided M3 nut grooves) and bottom side installation
Shell materialAluminum Alloy (Oxidative blackened surface)
Shell Hardness ParametersStatic load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g
Shipping weight0.55 kg
