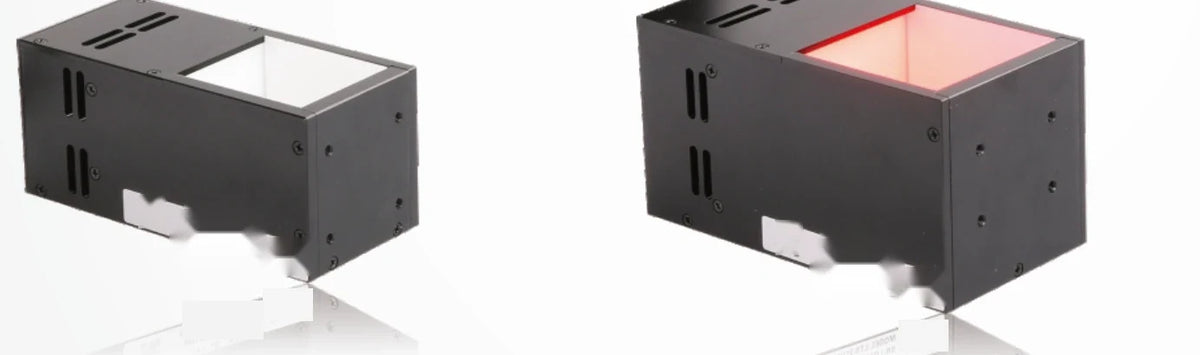

Representative photo of this series
Coaxial lights
40 x 40 mm Narrow angle coaxial light (LS-3CON40)
Model LS-3CON40
- ColourRed, Green, Blue, White
- Emitting area20 mm x 20 mm
- Voltage24 V
- Max. emitting area100 mm x 100 mm
$109.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.35 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Narrow angle coaxial light (new) with high uniformity and high luminance; the light rays are approximately parallel, suited to mirror surfaces.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-3CON40 |
|---|---|
| FOV | 1mm~100mm |
| Cooling | Fan (fan and light powered independently) |
| Note | UV & IR light can be customized as required. |
Optics
| Recommended working distance | 5mm~300mm |
|---|
Interfaces and I/O
| Cable length | 500 mm |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines) |
Light
| Min. emitting area | 20 mm x 20 mm |
|---|---|
| Max. emitting area | 100 mm x 100 mm |
| Colour temperature of white | 6600 K |
| Emitting surface (mm) | 40 x 40 |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controllers | Strobe controller, analog controller, digital controller |
| Power (R) | 8.7W |
| Power (G/B/W) | 10.1W |
Mechanical
| Weight | 159 g |
|---|
