Coaxial lights

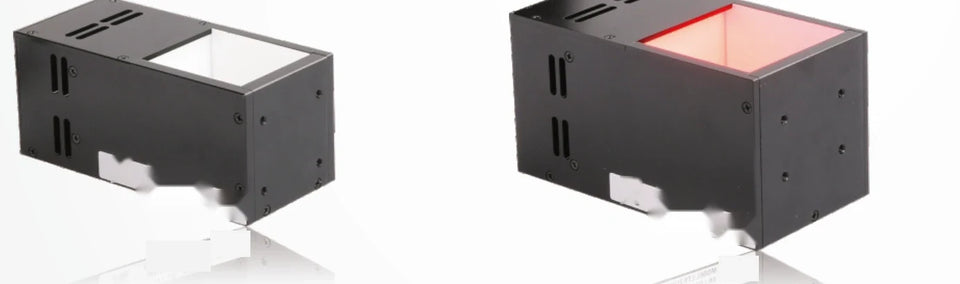

Narrow angle coaxial light (3CON)
- 12 models
- from $89.00
- Series LS-3CON
The Narrow angle coaxial light (3CON) is a range of 12 coaxial lights from LumaSpec Vision, from $89.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 30 x 30 mm, 40 x 40 mm, 50 x 50 mm, 60 x 60 mm, 80 x 80 mm, 100 x 100 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- High uniformity, high luminance
- Light rays approximately parallel
- Suited to mirror surfaces
- Fan cooled; fan and light are powered independently
- Wire jacket covers the cable exit, anti-pull
- Compared with coaxial light LS-3COX40-W in the same test environment, LS-3CON40-W has higher luminance and gives better contrast and a steadier effect
- Customizable: Viewport, Length and width, Parallel film, Colour & colour temperature, Combined light, Cable length, Installation method
- UV & IR versions can be customized as required
Typical uses
- Defect inspection of reflective surfaces
- Mark position location
- Crack or scratch inspection of metal surfaces
- Edge measurement and contour inspection
- Surface character inspection of electronic components
- Imaging example: character inspection on a watch shell (LS-3CON40-W), white characters on a black background
All 12 models in the Narrow angle coaxial light (3CON)
| Link | ||
|---|---|---|
| LS-3CON30 | $89.00 | View |
| LS-3CON40 | $109.00 | View |
| LS-3CON50 | $129.00 | View |
| LS-3CON60 | $159.00 | View |
| LS-3CON30-N | $169.00 | View |
| LS-3CON40-N | $199.00 | View |
| LS-3CON80 | $219.00 | View |
| LS-3CON50-N | $229.00 | View |
| LS-3CON60-N | $269.00 | View |
| LS-3CON100 | $289.00 | View |
| LS-3CON80-N | $339.00 | View |
| LS-3CON100-N | $429.00 | View |
