900 x 30 mm LED Bar Light (LS-2LB-900X30)

Model LS-2LB-900X30

  • ColourRed, Green, Blue, White
  • Emitting area900x30 mm
  • Size912x36x46 mm
  • Voltage24 V
  • Power56.2 W
$509.00

In stock - ships the same business day (3 available, order by 2 PM ET)

1.7 kg shipping weight

Color

Volume pricing, Net 30 or a formal quote?

900 x 30 mm LED Bar Light. LED bar light for surface defect detection, image scanning, LCD panel inspection, pin flatness testing and slender-object damage/appearance inspection. Illumination width, length and size can be customized; wavelength/colour temperature options and colour combinations are available, with an adjustable illumination angle and optional diffuser plate.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-2LB-900X30

Interfaces and I/O

Cable length500 mm (per dimension drawings)

Light

LED rows6
Emitting area (mm)900x30
ColoursRed, Green, Blue, White
LED colour options (legend)R / G / B / W / IR / UV
Colours shown per modelR, G, B, W

Electrical

Voltage (V)24
Power R (W)33.7
Power W/B/G (W)56.2

Mechanical

Outer size L x W x H (mm)912x36x46
Shipping weight (estimated)1.70 kg

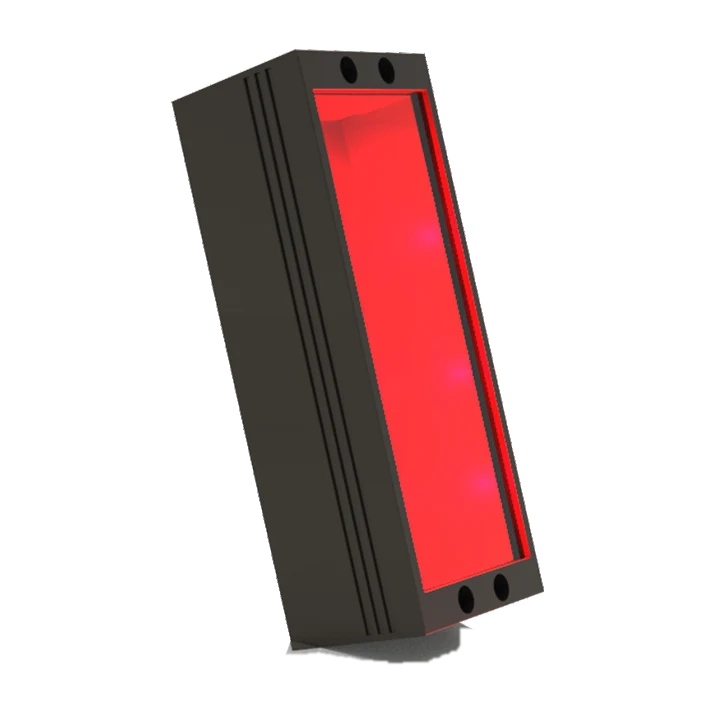

Photo shows a representative model of this series; see the specifications for this model.

Mounting and drawing data

drawing LS-2LB-AX30: overall length A+12, 36 high x 46 deep (finned), 30 emitting width, 4-M3 depth 6 holes (11.5 / 25.5, 14 spacing), M3 nut (T-slot) mounting, 500 mm cable
