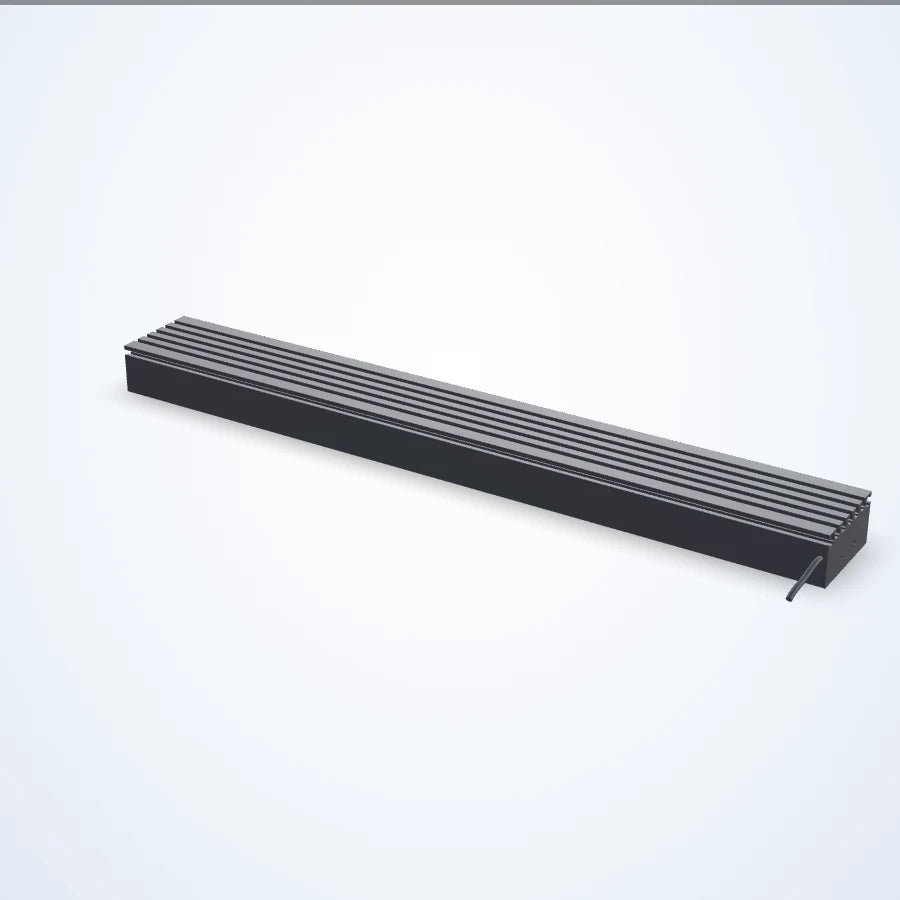

  • LS-LB-400X45 3D render
  • LS-LB-400X45 dimensions (mm)
  • LS-LB-400X45 3D model

Bar lights

400 x 45 mm LED Bar Light (LS-LB-400X45)

Model LS-LB-400X45

  • ColourRed, Green, Blue, White
  • Emitting area400x45 mm
  • Size416x52x28 mm
  • Voltage24 V
  • Power38 W
$249.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.9 kg shipping weight

Color

Volume pricing, Net 30 or a formal quote?

400 x 45 mm LED Bar Light. LED bar light for surface defect detection, image scanning, LCD panel inspection, pin flatness testing and slender-object damage/appearance inspection. Illumination width, length and size can be customized; wavelength/colour temperature options and colour combinations are available, with an adjustable illumination angle and optional diffuser plate.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LB-400X45

Interfaces and I/O

Cable length500 mm (per dimension drawings)

Light

LED rows9
Emitting area (mm)400x45
ColoursRed, Green, Blue, White
LED colour options (legend)R / G / B / W / IR / UV
Colours shown per modelR, G, B, W

Electrical

Voltage (V)24
Power R (W)24.5
Power W/B/G (W)38

Mechanical

Outer size L x W x H (mm)416x52x28
Shipping weight (estimated)0.90 kg

Photo shows a representative model of this series; see the specifications for this model.

Mounting and drawing data

drawing LS-LB-AX45: overall length A+16, 52 high x 28 deep, 45 emitting width, 2x2-M4x0.7 depth 6 holes (both sides) at 17 spacing, 7.5 from face, 500 mm cable
