Infrared cameras

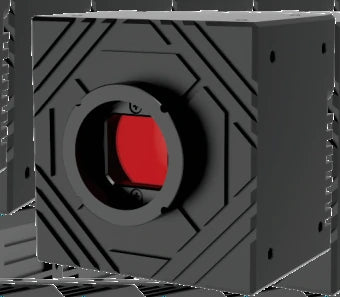

Short-wave infrared area scan camera (LS-IRC-S04)
- 4 models
- from $5,999.00
- Series LS-IRC-S04
The Short-wave infrared area scan camera (LS-IRC-S04) is a range of 4 infrared cameras from LumaSpec Vision, from $5,999.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.3 MP, GigE, Mono, 1.3 MP, GigE, Mono, 5.3 MP, GigE, Mono
- Interface
- GigE
- Resolution
- Up to 3 MP, 5 MP
- Shutter
- Global
- Colour
- Mono
- Lens mount
- C-mount
- Sensor format
- 1/2.5" and smaller, 1/2", 2/3", 1/1.2"
Features
- InGaAs detector, response wavelength 0.4-1.7 um
- Black level correction, good image uniformity
- Gigabit network interface, compatible with vision standard
- Designed for short wave infrared imaging and microscopic imaging for low illumination scientific research
- Drive free, directly supports Halcon, VisionPro and other software, easy for system integration and development
Typical uses
- Fluorescence imaging
- Laser spot infrared imaging
- Low illumination scientific research
- Short wave infrared tracking imaging
- Semiconductor detection
- Solar cell detection
All 4 models in the Short-wave infrared area scan camera (LS-IRC-S04)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-IRC-0028 | 1.3 MP, GigE, Mono | 72FPS | 1/2" CMOS | 5.0μm x 5.0μm | $5,999.00quote | View |
| LS-IRC-0027 | 0.3 MP, GigE, Mono | 241FPS | 1/4" CMOS | 5.0μm x 5.0μm | $5,999.00quote | View |
| LS-IRC-0029 | 0.3 MP, GigE, Mono | 350FPS | 9.6 x 7.68mm CMOS | 15μm x 15μm | $5,999.00quote | View |
| LS-IRC-0030 | 5.3 MP, GigE, Mono | 24FPS | 1/1.4" InGaAs | 3.45μm x 3.45μm | $5,999.00quote | View |
