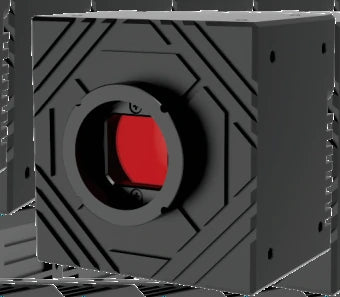

Representative photo of this series
Infrared cameras
Short-wave infrared area scan camera, 1.3 MP, GigE, Mono (LS-IRC-0028)
Model LS-IRC-0028
- Resolution1280 x 1024
- Sensor1/2" CMOS
- InterfaceRJ45 Gigabit Network
- Speed72FPS
- Lens mountC-mount
- Pixel size5.0μm x 5.0μm
$5,999.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
0.8 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LS-IRC-0028 is a scientific level, large target area and high-resolution InGaAs short wave imaging and microscopic imaging camera. It is suitable for fluorescence imaging and laser spot infrared imaging, specifically designed for low illumination scientific research, short wave infrared tracking imaging, semiconductor detection, solar cell detection, hyperspectral imaging, etc.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-IRC-0028 |
|---|---|
| Camera type | Mono |
| Frame buffer | 256MB |
| User-defined data area | 2KB |
| Acquisition mode | Continuous/soft trigger/hard trigger |
| Cooling | Semiconductor refrigeration, coolable ambient temperature difference 20℃ |
| Driver | Directshow component, Halcon dedicated component, Labview dedicated driver, OCX component, TWAIN component |
| Programming language pack | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Other functions | Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc. |
| Sensitivity | 30mv 1/30s |
Sensor and imaging
| Shutter type | Global shutter |
|---|---|
| Maximum gain (multiple) | 126 |
| Sensor type | 1/2" CMOS |
| Pixel size | 5.0μm x 5.0μm |
| Effective pixels | 1.3MP |
| Maximum resolution | 1280 x 1024 |
| Frame rate | 72FPS |
| Pixel bit depth | 12bit |
| Exposure time range (ms) | 0.0130~7987.2 |
Interfaces and I/O
| Vision standards protocol | GigE Vision V1.2, GenICam |
|---|---|
| Data interface | RJ45 Gigabit Network |
| GPIO | 1x trigger input, 1x flash output; 1x GPI input, 1x GPO output, 1x non-isolated bidirectional IO |
| Video output format | Mono 8bit |
Light
| Mono / colour | Mono |
|---|
Environment and compliance
| Operating temperature | 0~40℃ |
|---|---|
| Working humidity | 20~80% (no condensation) |
| Storage temperature | -30~60℃ |
| Storage humidity | 20~95% (no condensation) |
Computing
| Operating system | WINXP, WIN7/8/10 32&64 bit systems, Linux and ARM Linux drivers, Android platform drivers, MAC OS systems |
|---|
Electrical
| Power | <12W (including refrigeration) |
|---|---|
| Power supply | 12-24V (POE as standard) |
| Voltage | 12-24V (POE as standard) |
Mechanical
| Lens mount | C-Mount |
|---|---|

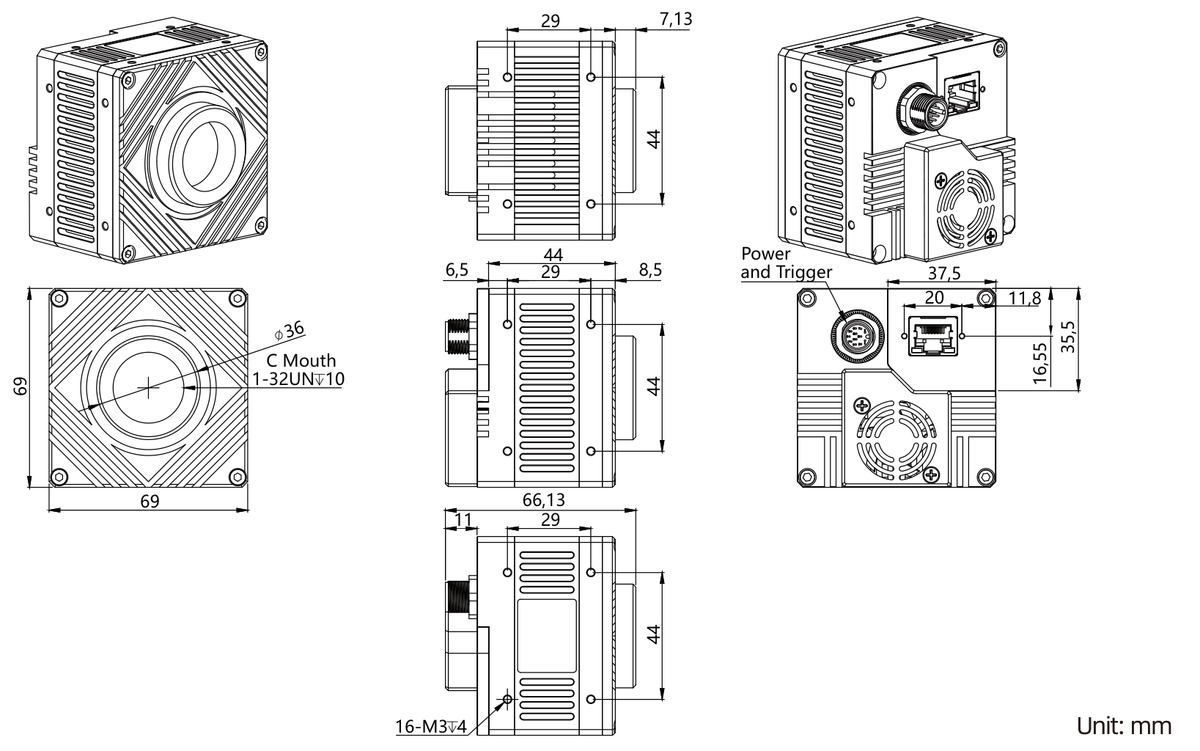

| Dimensions | 69 x 69 x 44mm (without lens mount and rear shell interface) |
| Weight | <500g |
