Infrared cameras

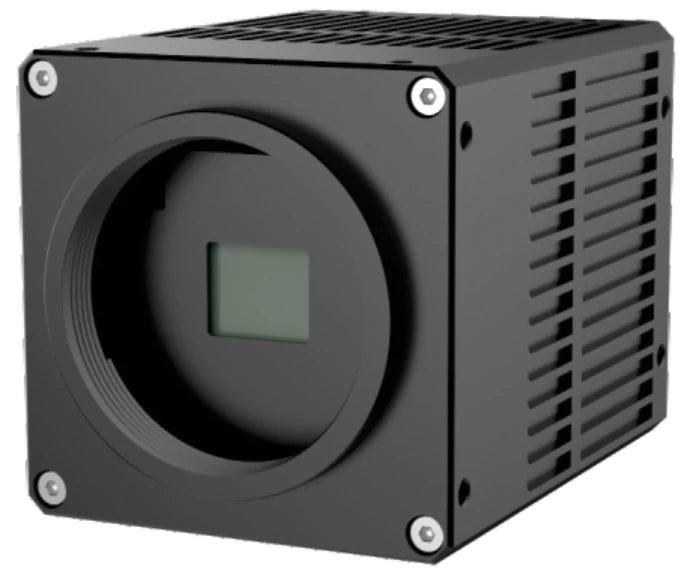

Thermal imaging camera (LS-IRC-0025 / LS-IRC-0026) (LS-IRC-S03)
- 3 models
- from $3,999.00
- Series LS-IRC-S03
The Thermal imaging camera (LS-IRC-0025 / LS-IRC-0026) (LS-IRC-S03) is a range of 3 infrared cameras from LumaSpec Vision, from $3,999.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.1 MP, GigE, 0.1 MP, GigE, Thermal, 0.5 MP, GigE, Thermal
- Interface
- GigE
- Resolution
- Up to 3 MP
- Colour
- Color
- Lens mount
- M34x0.75
- Sensor format
- 1/2.5" and smaller
Features
- High sensitivity, high resolution infrared detector for clear infrared images and temperature measurement accuracy
- RJ45 Gigabit Ethernet interface, 100 metres stable long-distance transmission
- Supports POE power supply, plug-and-play driver design
- 400X300 resolution, up to 50HZ frame rate
- Thermal sensitivity ≤ 55mK, thermal response time <15ms
- Multiple cameras can work at the same time in any network grouping, long-time operation without frame loss
- Hardware image processing acceleration reduces host CPU load
- GigE Vision 1.2 standard protocol; supports Halcon, VisionPro and other software
All 3 models in the Thermal imaging camera (LS-IRC-0025 / LS-IRC-0026) (LS-IRC-S03)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-IRC-0025 | 0.1 MP, GigE, Thermal | 400x300 50Hz | 12 V DC | GST417M | $3,999.00quote | View |
| LS-IRC-0026 | 0.5 MP, GigE, Thermal | 800x600 50Hz | 12 V DC | GST817MC | $3,999.00quote | View |
| LS-IRC-0024 | 0.1 MP, GigE | 12V(8PIN aviation connector) | GST417M | $3,999.00quote | View |
