Fixed code readers

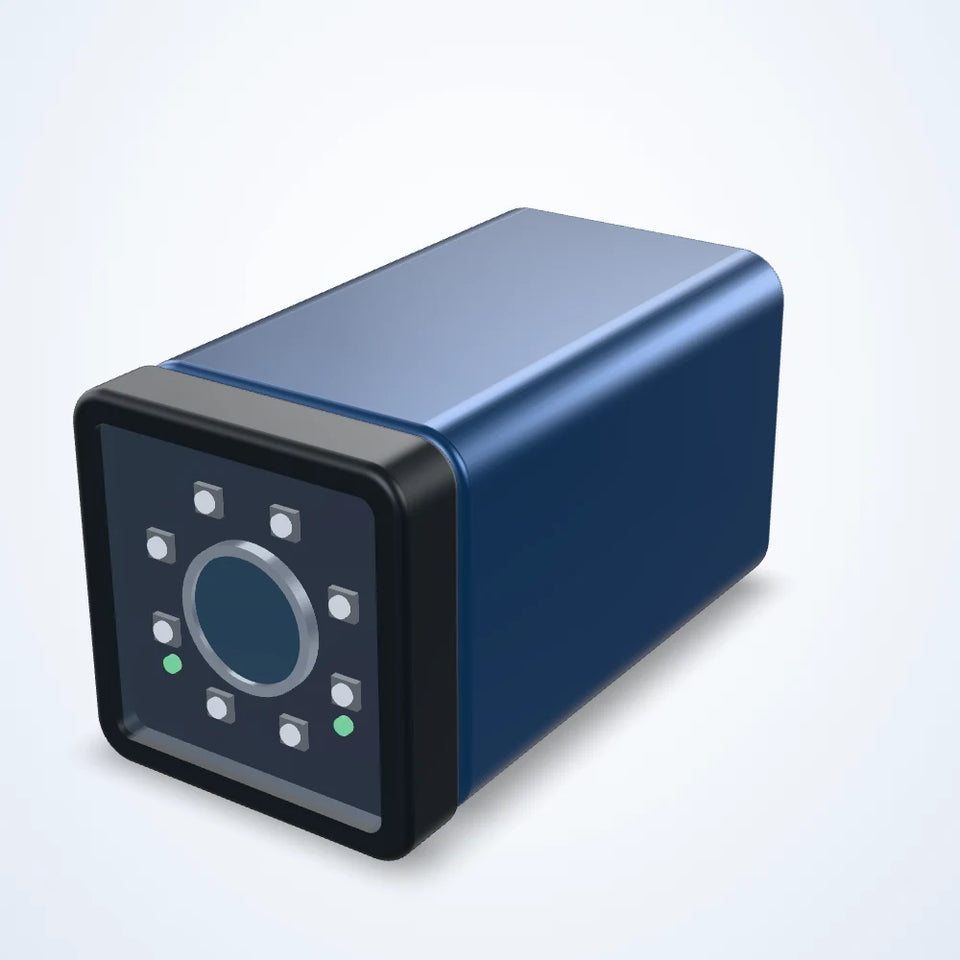

Fixed 1D / 2D code readers (LS-CRD-S01)
- 40 models
- from $480.00
- Series LS-CRD-S01
The Fixed 1D / 2D code readers (LS-CRD-S01) is a range of 40 fixed code readers from LumaSpec Vision, from $480.00. It comes in 11 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.4 MP, GigE, 1.3 MP, 1/2.7", GigE, 1.3 MP, GigE, 1.4 MP, 1/2.9", GigE, 1.4 MP, GigE, 3.1 MP, 1/1.8", GigE, 3.1 MP, GigE, 5.2 MP, 1/1.7", GigE, 5.2 MP, GigE, 6.3 MP, GigE, 12.6 MP, GigE
- Interface
- GigE
- Resolution
- Up to 3 MP, 5 MP, 6-10 MP, 16-25 MP
- Shutter
- Global, Rolling
- Sensor format
- 1/2.5" and smaller, 1/1.8" - 1/1.56"
Features
- Global shutter: moving parts are imaged without skew
- Hardware trigger input and strobe output for lights and sensors
All 40 models in the Fixed 1D / 2D code readers (LS-CRD-S01)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CRD-0001 | 0.4 MP, GigE | 704 × 540 | 60 fps | Fast Ethernet | $480.00 | View |
| LS-CRD-0005 | 1.3 MP, GigE | 1280 × 1024 | 60 fps | Fast Ethernet | $500.00 | View |
| LS-CRD-0006 | 1.3 MP, GigE | 1280 × 1024 | 60 fps | Fast Ethernet | $500.00 | View |
| LS-CRD-0007 | 1.4 MP, GigE | 1408 × 1024 | 60 fps | Fast Ethernet | $500.00 | View |
| LS-CRD-0010 | 1.4 MP, GigE | 1408 × 1024 | 60 fps | Fast Ethernet | $500.00 | View |
| LS-CRD-0012 | 1.4 MP, GigE | 1408 × 1024 | 60 fps | Fast Ethernet | $535.00 | View |
| LS-CRD-0009 | 1.4 MP, GigE | 1408 × 1024 | 60 fps | Fast Ethernet | $535.00 | View |
| LS-CRD-0003 | 1.3 MP, 1/2.7", GigE | 1280 × 1024 px | 60 fps | Fast Ethernet(100 Mbit/s) | $710.00 | View |
| LS-CRD-0004 | 1.3 MP, 1/2.7", GigE | 1280 × 1024 px | 60 fps | Fast Ethernet(100 Mbit/s) | $710.00 | View |
| LS-CRD-0002 | 1.3 MP, 1/2.7", GigE | 1280 × 1024 px | 60 fps | Fast Ethernet(100 Mbit/s) | $710.00 | View |
| LS-CRD-0014 | 1.4 MP, 1/2.9", GigE | 1408 × 1024 px | 60 fps | Fast Ethernet(100 Mbit/s) | $735.00 | View |
| LS-CRD-0015 | 1.4 MP, 1/2.9", GigE | 1408 × 1024 px | 60 fps | Fast Ethernet(100 Mbit/s) | $735.00 | View |
| LS-CRD-0008 | 1.4 MP, 1/2.9", GigE | 1408 × 1024 px | 60 fps | Fast Ethernet(100 Mbit/s) | $735.00 | View |
| LS-CRD-0022 | 3.1 MP, GigE | 2048 × 1536 | 60 fps | Gigabit Ethernet | $920.00 | View |
| LS-CRD-0025 | 3.1 MP, GigE | 2048 × 1536 | 60 fps | Gigabit Ethernet | $920.00 | View |
| LS-CRD-0027 | 3.1 MP, GigE | 2048 × 1536 | 60 fps | Gigabit Ethernet | $920.00 | View |
| LS-CRD-0020 | 3.1 MP, GigE | 2048 × 1536 | 60 fps | Gigabit Ethernet | $920.00 | View |
| LS-CRD-0029 | 5.2 MP, 1/1.7", GigE | 2560× 2048 px | 30 fps | Fast Ethernet(100 Mbit/s) | $920.00 | View |
| LS-CRD-0030 | 5.2 MP, 1/1.7", GigE | 2560× 2048 px | 30 fps | Fast Ethernet(100 Mbit/s) | $920.00 | View |
| LS-CRD-0031 | 5.2 MP, 1/1.7", GigE | 2560× 2048 px | 30 fps | Fast Ethernet(100 Mbit/s) | $920.00 | View |
| LS-CRD-0028 | 5.2 MP, 1/1.7", GigE | 2560× 2048 px | 30 fps | Fast Ethernet(100 Mbit/s) | $920.00 | View |
| LS-CRD-0037 | 6.3 MP, GigE | 3072 × 2048 | 30 fps | Gigabit Ethernet | $920.00 | View |
| LS-CRD-0038 | 6.3 MP, GigE | 3072 × 2048 | 30 fps | Gigabit Ethernet | $920.00 | View |
| LS-CRD-0039 | 6.3 MP, GigE | 3072 × 2048 | 30 fps | Gigabit Ethernet | $920.00 | View |
| LS-CRD-0036 | 6.3 MP, GigE | 3072 × 2048 | 30 fps | Gigabit Ethernet | $920.00 | View |
| LS-CRD-0033 | 5.2 MP, GigE | 2560 × 2048 | 40 fps | Gigabit Ethernet | $970.00 | View |
| LS-CRD-0034 | 5.2 MP, GigE | 2560 × 2048 | 40 fps | Gigabit Ethernet | $970.00 | View |
| LS-CRD-0035 | 5.2 MP, GigE | 2560 × 2048 | 40 fps | Gigabit Ethernet | $970.00 | View |
| LS-CRD-0032 | 5.2 MP, GigE | 2560 × 2048 | 40 fps | Gigabit Ethernet | $970.00 | View |
| LS-CRD-0021 | 3.1 MP, 1/1.8", GigE | 2048 × 1536 px | 60 fps | Fast Ethernet(100 Mbit/s) | $1,150.00 | View |
| LS-CRD-0023 | 3.1 MP, 1/1.8", GigE | 2048 × 1536 px | 60 fps | Fast Ethernet(100 Mbit/s) | $1,150.00 | View |
| LS-CRD-0026 | 3.1 MP, 1/1.8", GigE | 2048 × 1536 px | 60 fps | Fast Ethernet(100 Mbit/s) | $1,150.00 | View |
| LS-CRD-0019 | 3.1 MP, 1/1.8", GigE | 2048 × 1536 px | 60 fps | Fast Ethernet(100 Mbit/s) | $1,150.00 | View |
| LS-CRD-0013 | 1.4 MP, 1/2.9", GigE | 1408 × 1024 px | 60 fps | Fast Ethernet(100 Mbit/s) | $1,165.00 | View |
| LS-CRD-0017 | 1.4 MP, 1/2.9", GigE | 1408 × 1024 px | 60 fps | Fast Ethernet(100 Mbit/s) | $1,165.00 | View |
| LS-CRD-0018 | 1.4 MP, 1/2.9", GigE | 1408 × 1024 px | 60 fps | Fast Ethernet(100 Mbit/s) | $1,165.00 | View |
| LS-CRD-0011 | 1.4 MP, 1/2.9", GigE | 1408 × 1024 px | 60 fps | Fast Ethernet(100 Mbit/s) | $1,165.00 | View |
| LS-CRD-0016 | 1.4 MP, 1/2.9", GigE | 1408 × 1024 px | 60 fps | Fast Ethernet(100 Mbit/s) | $1,240.00 | View |
| LS-CRD-0040 | 12.6 MP, GigE | 4096 ×03072 | 28 fps | Gigabit Ethernet | $1,250.00 | View |
| LS-CRD-0024 | 3.1 MP, 1/1.8", GigE | 2048 × 1536 px | 60 fps | Fast Ethernet(100 Mbit/s) | $1,260.00 | View |
