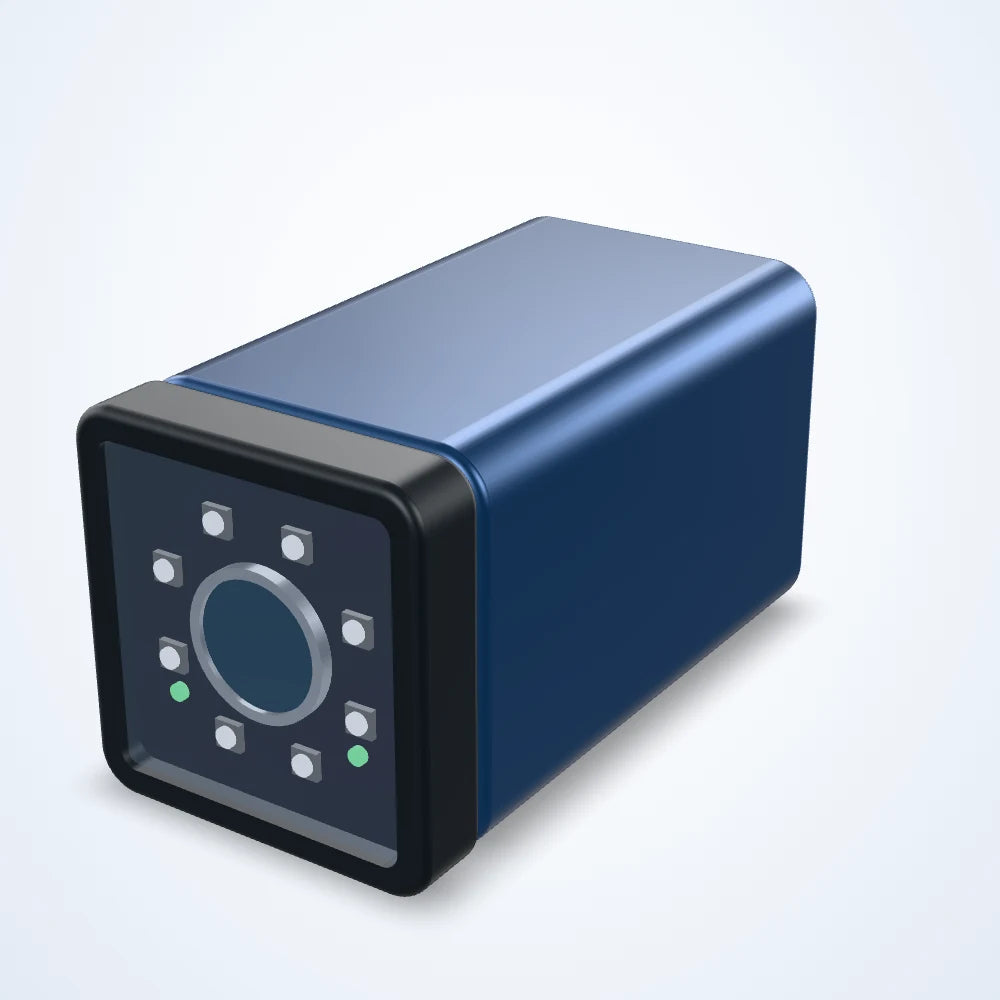

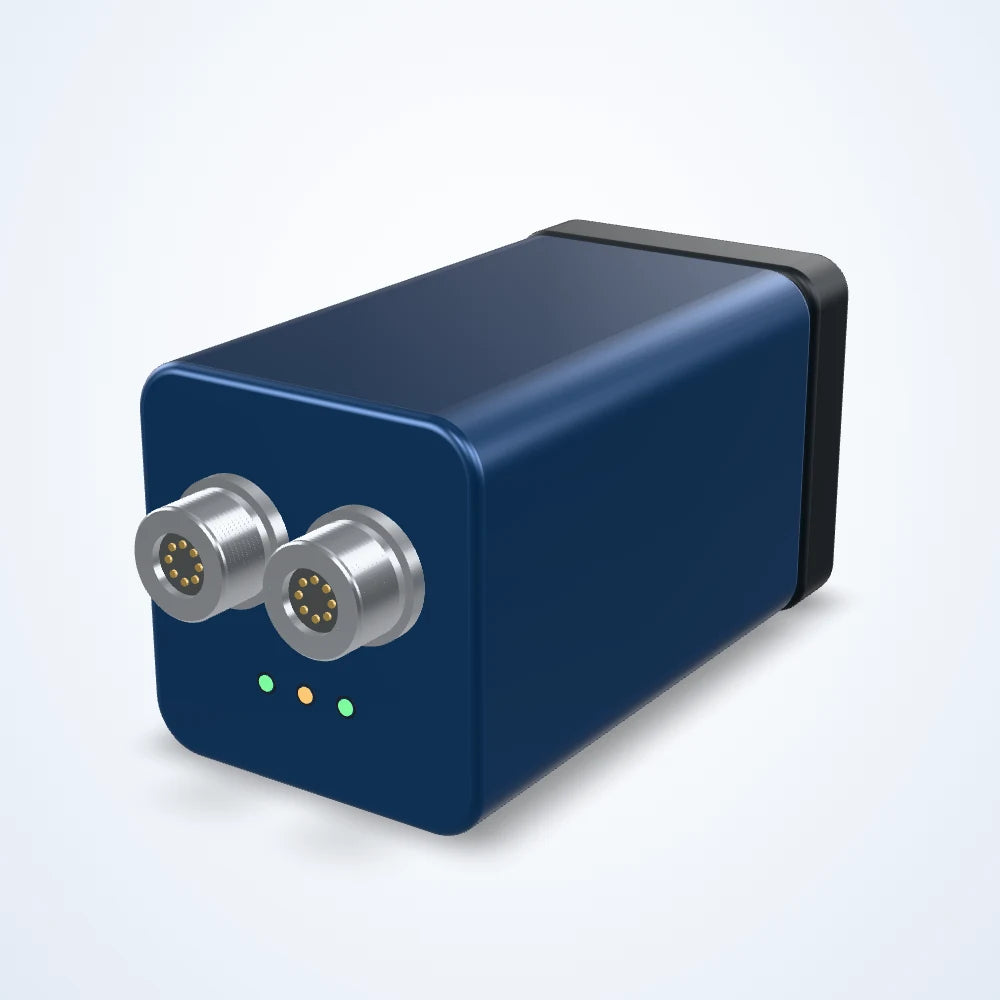

Fixed code reader 60 fps 90 yards/s autofocus (series view)

Rendered illustration: the actual product may differ in appearance.

Fixed code readers

2048 x 1536 fixed code reader, 60 fps, 90 yards/s, autofocus, 8 mm lens (LS-CRD-0019)

Model LS-CRD-0019

Resolution2048 × 1536 px
Sensor1/1.8”
InterfaceFast Ethernet(100 Mbit/s)
Speed60 fps
Pixel size3.45 μm x 3.45 μm
Focal length8/12/16/25 mm optional

$1,150.00

Ships in 3-4 weeks

0.4 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

3.1 MP fixed code reader for reading 1D and 2D codes on the line. CMOS sensor (1/1.8"); 2048 x 1536 pixels of 3.45 μm; up to 60 frames per second; global shutter; GigE interface.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CRD-0019
Built-in light	Integrated LEDs, red/white/blue/NIR light optional

Optics

Lens focal length	8/12/16/25 mm optional

Sensor and imaging

Shutter	Global shutter
Symbologies	1D: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, Matrix 2 of 5, Matrix 25, MSI, China Post, Code 11, Industrial 25 2D: QR Code, Data Matrix Stack codes: PDF417
Max. frame rate	60 fps
Reading speed	90 codes/sec
Sensor size	1/1.8”
Sensor type	CMOS, Global Shutter
Resolution	2048 × 1536 px
Pixel size	3.45 μm x 3.45 μm
Exposure time	6 μs~30000 μs

Interfaces and I/O

Protocols	Serial,TCP Client,TCP Server,FTP,ModBus,Fins,SLMP,MELSEC
Data interface	Fast Ethernet(100 Mbit/s)
Digital I/O	3 non-isolated input, 3 non-isolated output, 1 RS-232

Environment and compliance

Ingress protection	IP67
Operating temperature	0- 50°C(Operating), -30- 70°C(Storage)

Electrical

Power supply	24 V
Power consumption	24 V @6.2 W

Mechanical

Dimensions	Straight angle: 80.1 mm × 43 mm × 44.3 mm Right angle: 58.5 mm × 43 mm × 65.4 mm (195g)
Weight	195g
