Fixed code readers

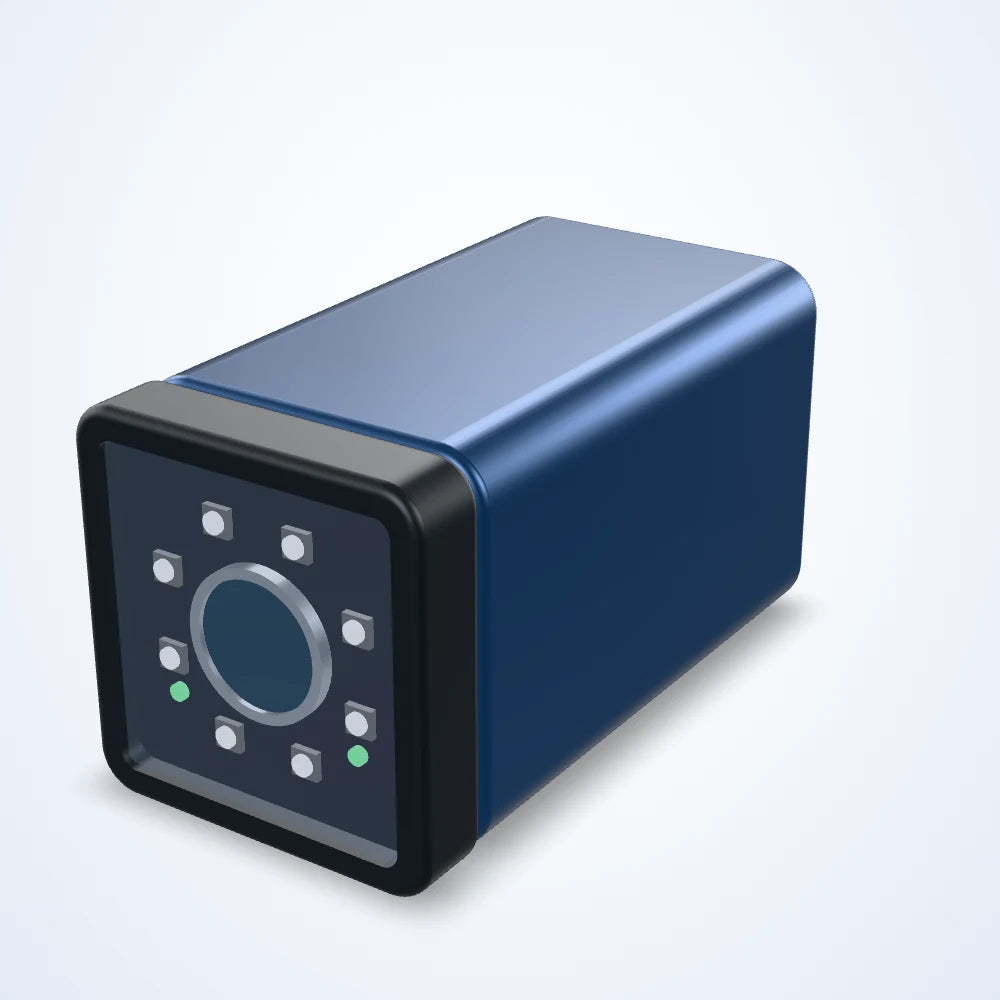

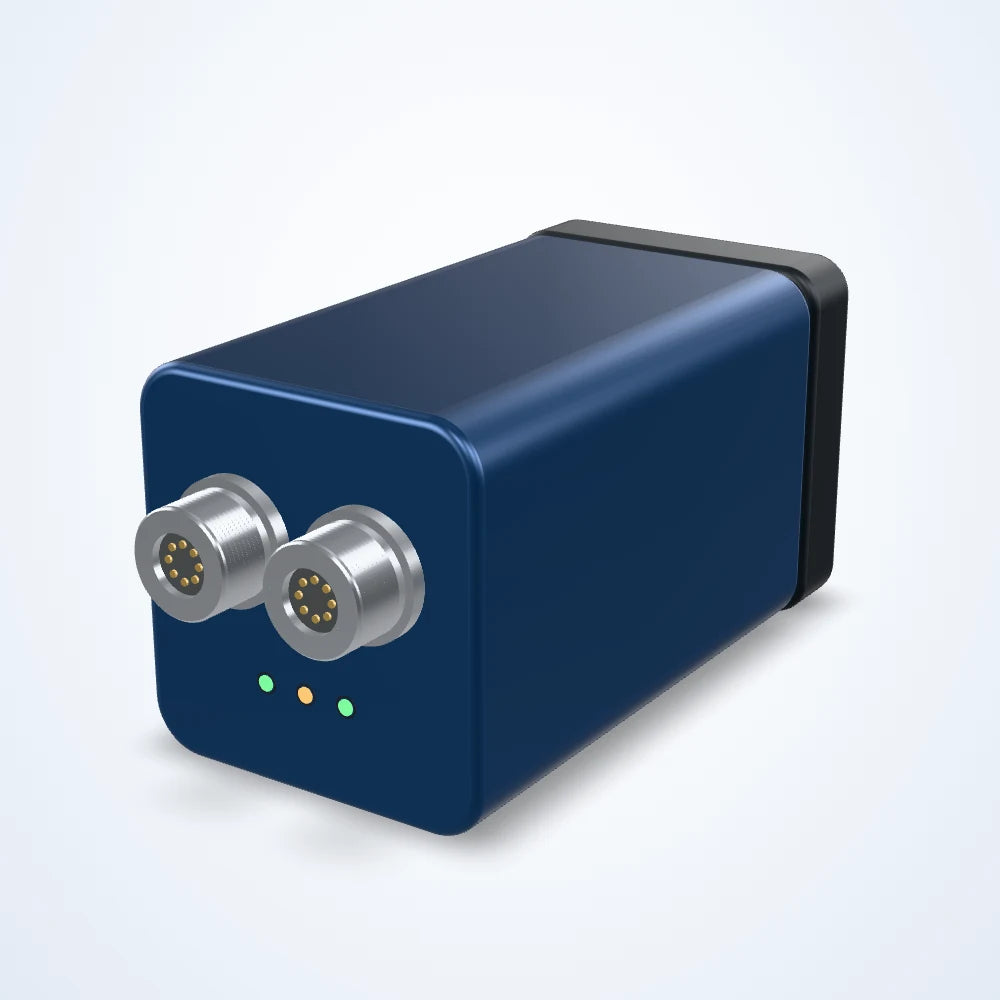

1280 x 1024 fixed code reader, 60 fps, 45 yards/s, 16 mm lens (LS-CRD-0005)
Model LS-CRD-0005
- Resolution1280 × 1024
- InterfaceFast Ethernet
- Speed60 fps
- Focal length16/25 mm
$500.00
Ships in 3-4 weeks
2.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1.3 MP fixed code reader for reading 1D and 2D codes on the line. 1280 x 1024 pixels; up to 60 frames per second; global shutter; GigE interface.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CRD-0005 |
|---|
Optics
| Lens focal length | 16/25 mm |
|---|---|
| Working distance | 105 ~ 150 mm / 170 ~ 200 mm |
Sensor and imaging
| Shutter | Global shutter |
|---|---|
| Resolution | 1280 × 1024 |
| Max. frame rate | 60 fps |
| Reading speed | 45 yards/second |
Interfaces and I/O
| Data interface | Fast Ethernet |
|---|
Electrical
| Power consumption | 12 W@24 VDC |
|---|
Mechanical
| Shipping weight | 2.50 kg |
|---|
Other models in the Fixed 1D / 2D code readers (LS-CRD-S01) series
See all 40 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CRD-0001 | 0.4 MP, GigE | $480.00 | Ships in 3-4 weeks | View |
| LS-CRD-0006 | 1.3 MP, GigE | $500.00 | Ships in 3-4 weeks | View |
| LS-CRD-0007 | 1.4 MP, GigE | $500.00 | Ships in 3-4 weeks | View |
| LS-CRD-0010 | 1.4 MP, GigE | $500.00 | Ships in 3-4 weeks | View |
| LS-CRD-0012 | 1.4 MP, GigE | $535.00 | Ships in 3-4 weeks | View |
| LS-CRD-0009 | 1.4 MP, GigE | $535.00 | Ships in 3-4 weeks | View |
| LS-CRD-0003 | 1.3 MP, 1/2.7", GigE | $710.00 | Ships in 3-4 weeks | View |
| LS-CRD-0004 | 1.3 MP, 1/2.7", GigE | $710.00 | Ships in 3-4 weeks | View |
| LS-CRD-0002 | 1.3 MP, 1/2.7", GigE | $710.00 | Ships in 3-4 weeks | View |
| LS-CRD-0014 | 1.4 MP, 1/2.9", GigE | $735.00 | Ships in 3-4 weeks | View |
| LS-CRD-0015 | 1.4 MP, 1/2.9", GigE | $735.00 | Ships in 3-4 weeks | View |
| LS-CRD-0008 | 1.4 MP, 1/2.9", GigE | $735.00 | Ships in 3-4 weeks | View |
| LS-CRD-0022 | 3.1 MP, GigE | $920.00 | Ships in 3-4 weeks | View |
| LS-CRD-0025 | 3.1 MP, GigE | $920.00 | Ships in 3-4 weeks | View |
| LS-CRD-0027 | 3.1 MP, GigE | $920.00 | Ships in 3-4 weeks | View |
| LS-CRD-0020 | 3.1 MP, GigE | $920.00 | Ships in 3-4 weeks | View |
| LS-CRD-0029 | 5.2 MP, 1/1.7", GigE | $920.00 | Ships in 3-4 weeks | View |
| LS-CRD-0030 | 5.2 MP, 1/1.7", GigE | $920.00 | Ships in 3-4 weeks | View |
| LS-CRD-0031 | 5.2 MP, 1/1.7", GigE | $920.00 | Ships in 3-4 weeks | View |
| LS-CRD-0028 | 5.2 MP, 1/1.7", GigE | $920.00 | Ships in 3-4 weeks | View |
| LS-CRD-0037 | 6.3 MP, GigE | $920.00 | Ships in 3-4 weeks | View |
| LS-CRD-0038 | 6.3 MP, GigE | $920.00 | Ships in 3-4 weeks | View |
| LS-CRD-0039 | 6.3 MP, GigE | $920.00 | Ships in 3-4 weeks | View |
| LS-CRD-0036 | 6.3 MP, GigE | $920.00 | Ships in 3-4 weeks | View |
