Slender metal parts: expose orientation features with polarized lighting
The source capture shows a row of narrow metal parts with repeated bright shafts and distinct end features. A polarized-light trial can help test front/back appearance while preserving the small features that define orientation.
Base orientation on a repeatable feature, not on brightness alone.
Real camera capture
- MethodWhite polarized illumination
- EvidenceReal application-lab capture
- SetupSource light identified; imaging kit proposed
- AcceptanceValidate on your own parts
Lighting application-lab catalog capture

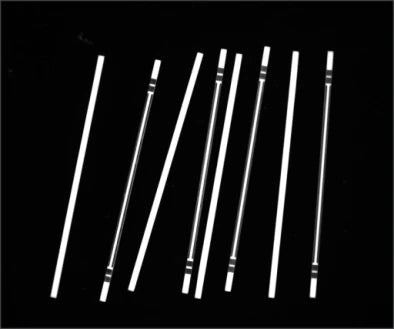

What the camera saw
Cropped from the source test sheet; original test annotations are retained. Captures are not generated or enhanced. Drag a comparison slider, or open any image full size.
The challenge
A narrow reflective part may look like a featureless bright line unless its end and shoulder geometry are resolved.
Front/back decisions must be based on the actual orientation features, not incidental glare.
How it was solved
The source identifies the white LS-POR8090 polarized light for front/back inspection of metal parts.
Select a region around the known orientation feature and test a matching camera-side analyzer; neither the source camera recipe nor an acceptance algorithm is supplied.
Why it works
- 1
Polarization and illumination geometry can change which reflections reach the camera, depending on the surface.
- 2
Repeated visible features support an orientation trial, but the source does not label each part as a known front or back state.
Lighting application-lab catalog capture
Evidence you can inspect
Bright slender shafts and distinct small end/shoulder features are visible in the source image.
The catalog captions the trial front/back inspection of metal parts with white polarized illumination.
No labelled orientation set, classifier accuracy, part dimensions or minimum feature size is reported.
From image contrast to a production decision
What to validate on your part
- 01
Label the true orientations
Create verified front and back sample groups before evaluating image decisions.
- 02
Challenge the visible feature
Include acceptable finish, rotation, end-forming and shoulder variation.
- 03
Check the analyzer setting
Verify that glare suppression does not remove the feature needed for orientation.
From the demo to your test bench
Parts in this setup
LightTested
LS-POR8090
70 mm Polarised light, POR series (LS-POR8090)
White LS-POR8090 polarized ring named in the source metal-part front/back example; printed housing 80 mm OD × 38 mm opening × 18 mm high.
$139.00
In proposed setup
CameraOur pick
MV-CS050-10GM(NPOE)
Hikrobot MV-CS050-10GM(NPOE) 5 MP GigE area scan camera, IMX264, Gen 2 basic version, Mono, Without PoE
5 MP monochrome global-shutter camera for a bench contrast trial; confirm sampling, sensitivity and exposure on the actual part.
$819.00
In proposed setup
LensOur pick
LS-KF1628M-ML
16mm, F2.8, 1.1", C-mount, Macro lens (52 mm (-0.25X) to 546 mm (-0.03X)) (LS-KF1628M-ML)
Proposed 16 mm C-mount macro lens. The illustration uses its printed 0.1x magnification at 152 mm working distance. The proposed camera sensor gives a derived 84.456 × 70.656 mm field. Confirm field, focus and residual distortion on the actual sample; this is not calibrated measurement accuracy.
$319.00
In proposed setup
Camera test stationOur pick
LS-BT-XZ-G-6-6045
Camera stand with XZ adjustment and glass tray, height 600 mm (LS-BT-XZ-G-6-6045)
600 mm column, 600 × 450 mm breadboard, XZ adjustment, glass tray and two lighting holders as listed. Proposed bench fixture; confirm loads, travel and camera/lens clamps.
$359.00
In proposed setup
"Tested" identifies the part named in the source. "Our pick" is a proposed alternative or supporting part. Confirm colour, optics, controllers, power supplies, cables and mounting before ordering.
The set-up
| Lighting | White polarized illumination |
|---|---|
| Test light | LS-POR8090, white |
| Ring envelope (printed) | 80 mm OD × 38 mm opening × 18 mm high |
| Camera and lens | Source versions not identified; current proposed parts below |
| 3D spacing | Illustrative, to be confirmed on the sample |
| Derived proposed field | 84.456 × 70.656 mm = sensor dimensions / 0.1x; source field not supplied |
| Mounting (proposed) | LS-BT-XZ-G-6-6045; 600 mm column, 600 × 450 mm base, glass tray and two light holders |
Mount the optics with intent
The station is an optical test bench, with its two lighting holders included in the catalog listing. The 3D column and base follow the published height and footprint. Carriages, clamps and part supports are schematic: confirm camera screw pattern, lens support, light fasteners, permissible load and actual travel before ordering.
Complete the electrical system
Select a controller against the exact light voltage, drive mode and power, then confirm camera data/power/I/O cables and a suitable PC. These are not silently added to the proposed optical kit. Confirm a matching lens-side analyzer; its size and orientation are not supplied by the source trial.
Build this system
Start from this setup, adapt it to your part.
The configurator opens with this study's camera, lens, light and station picked. Swap any part, check fit and price, then buy or ask for a quote.
Camera and available lens CAD are published models. Lens and light envelopes use printed dimensions. The linked station uses its published base size and column height; carriage, brackets, fittings, parts and spacing are illustrative. Confirm load, travel, fasteners and clearances before ordering. Light paths explain the arrangement and do not simulate optical performance. The illustrated ring position keeps the drawn viewing envelope inside its central aperture; verify vignetting and illumination on the actual sample. Representative part geometry is illustrative, not reconstructed inspection evidence.
