Fixed code readers

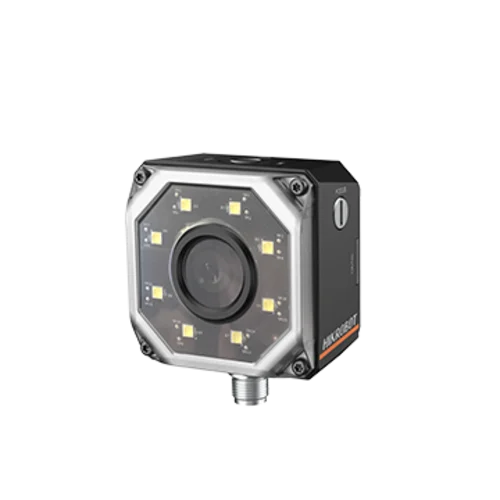

Hikrobot QH-IDX3000-PCB 1.65 MP smart code reader
Model QH-IDX3000-PCB
Hikrobot QH-IDX3000-PCB 1.65 MP smart code reader. Carefully selected sensor for high-speed capture of high-quality images Single cable provides a rich I/O interface for multiple input and output signals
Features
- Carefully selected sensor for high-speed capture of high-quality images
- Single cable provides a rich I/O interface for multiple input and output signals
- External waterproof setup button supports manual external triggering
- Top ring indicator shows working status at a glance
- Dual side-strip result indicators: OK/NG read status visible from multiple angles
- Modular light design with independently controllable zones for easy replacement
Specifications
| Model | QH-IDX3000-PCB |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN, ITF25, MATRIX25, MSI, CODE11, INDUSTRIAL25, CHINAPOST, etc.; 2D code: QR, DM, etc.; Stacked code: PDF417 |
| Max. frame rate | 60 fps |
| Max. reading speed | 84 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 µm×3.45 µm |
| Sensor size | 1/2.9” |
| Resolution | 1448×1048 |
| Exposure time | 16 μs ~ 1 sec |
| Gain | 0 ~ 40 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, Fins, SLMP |
| Ethernet | Fast Ethernet (100 Mbit/s) |
| Data interface | 17-pin M12 connector for power and I/O: 3 non-isolated inputs (LineIn 0/1/2), 3 non-isolated outputs (LineOut 3/4/5), 1 RS232 input, 1 RS232 output; Triggering via top button supported |
| Digital I/O | 3 non-isolated inputs (LineIn 0/1/2), 3 non-isolated outputs (LineOut 0/1/2), 1 RS232 input, 1 RS232 output; Triggering via top button supported |
| Power supply | 24 VDC |
| Max. power consumption | 20 W @ 24 VDC (built-in light on) |
| Lens mount | M12-Mount, Mechanical focus |
| Lens cap | Clear lens cover, Full-polarizing optional, Semi-polarizing lens cover |
| Light source | Focused white light, Focused red/blue/IR light optional, Wide-angle white/blue/red light |
| Indicator | Power indicator PWR, Network indicator LNK, Status indicator STS, Result indicator OK/NG |
| Dimension | 65.2 mm×65.2 mm×42 mm |
| Weight | Approx. 250 g |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Operating temperature: 0 to 50 ℃, Storage temp.: -30 to 70 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.45 kg |
