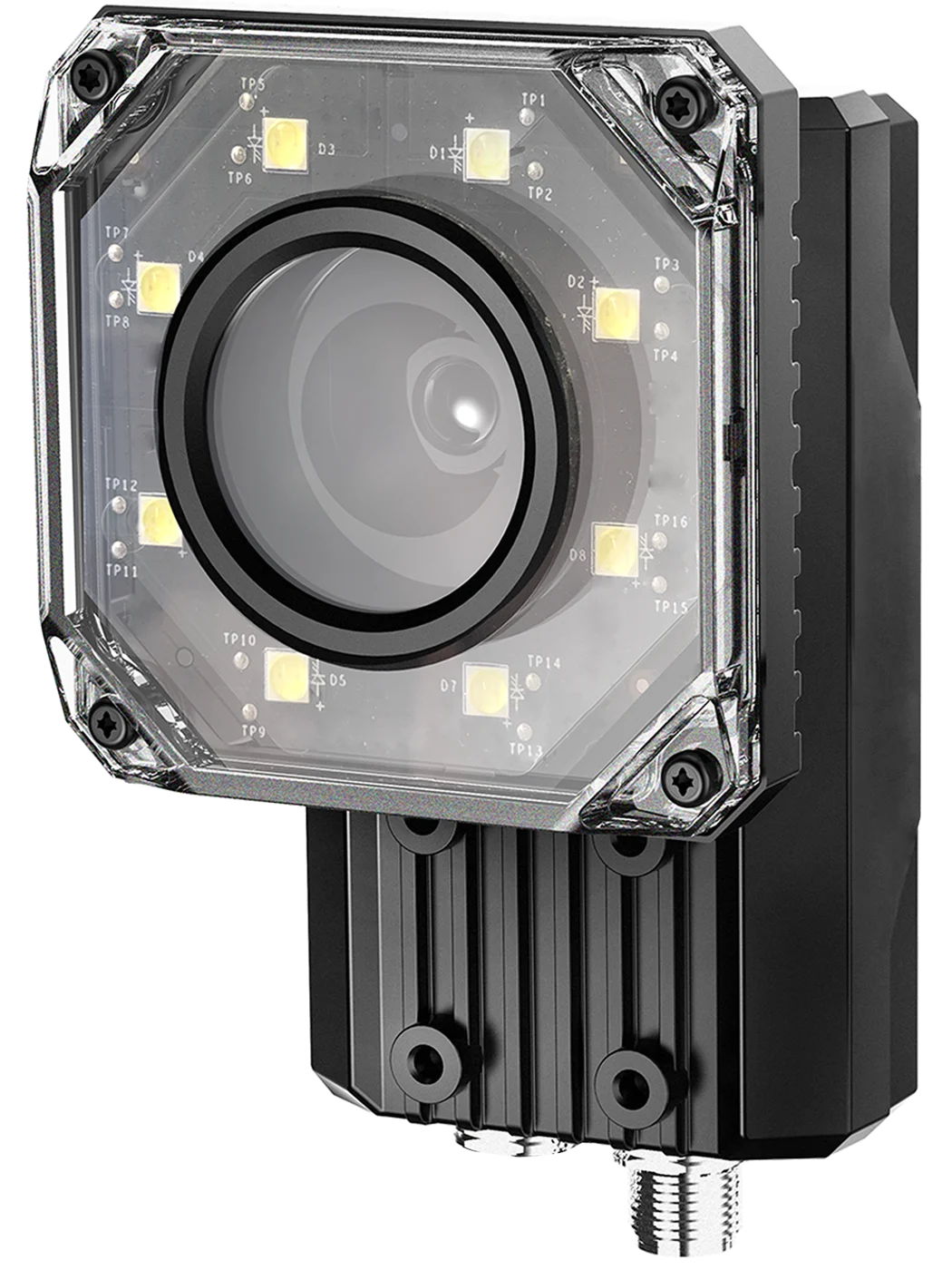

Hikrobot MV-HY-MED-E10-PD 600 × 10⁴-pixel pharmaceutical code reading kit
Model MV-HY-MED-E10-PD
Hikrobot MV-HY-MED-E10-PD 600 × 10⁴-pixel pharmaceutical code reading kit. Extra-large depth of field, built-in deep-learning decoding algorithm, premium sensor, high-performance lens and more Highly integrated with multiple status and interaction prompts for a friendlier solution
Features
- Extra-large depth of field, built-in deep-learning decoding algorithm, premium sensor, high-performance lens and more
- Highly integrated with multiple status and interaction prompts for a friendlier solution
- Easy to use: autofocus, adaptive tuning, automatic calibration and more
- Clear interactive feedback: top and side status indicators plus projected light make status visible from every side
- Broad symbology support: reads over 20 symbologies, including UDI codes
- Rich I/O interface, powerful filtering rules and secondary development capability
Specifications
| Model | MV-HY-MED-E10-PD |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128 (incl. GS1-128), CodaBar, EAN8, EAN13, ITF25, ITF14, Matrix25, UPCA, UPCE, MSI, Code11, Industrial 2of5, China Post, Pharmacode; 2D code: QR Code (incl. GS1-QR), Data Matrix (incl. GS1-DM), Micro QR, AZTEC, Hanxin; Stacked code: PDF417 |
| Max. frame rate | 60 fps |
| Resolution | 3072 × 2048 |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, EthernetIp, ; Modbus, FINS, UDP |
| Data interface | Gigabit Ethernet(1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector for power and I/O: 3 opto-isolated inputs (LINE0/1/2), 3 opto-isolated; outputs (LINE3/4/5) |
| Power supply | 24 VDC |
| Max. power consumption | 23 W @ 24 VDC (built-in light enabled) |
| Focal length | Standard 8 mm, Optional 8/12/16/25 mm |
| Lens mount | M12-mount, mechanical focusing |
| Lens cap | Clear lens cover, Polarizing lens cover optional |
| Light source | White spot light |
| Aiming system | N/A |
| Status indicator | Voice announcements, OK/NG status indicator, Power switch indication |
| Voice prompts | Volume adjustment supported |
| Dimension | Code reader: 118.9 mm × 78 mm × 73.2 mm; Interface board: 100 mm × 45 mm × 17.3 mm |
| Weight | Code reader: approx. 520 g; Interface board: approx. 30 g |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Top buttons | N/A |
| Client software | IDMVS |
| Shipping weight (estimated) | 0.83 kg |
