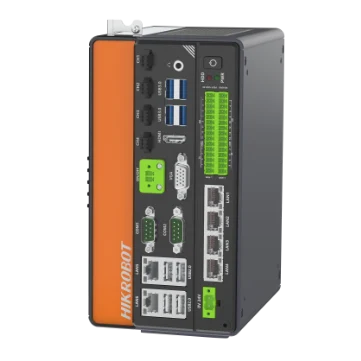

Hikrobot MV-VC3714X-128G60 VC3000X vision controller, 12th-I7, 16GB+128G SSD+2T HDD, No PoE, Incl. PCIe expansion

Vision controllers

Hikrobot MV-VC3714X-128G60 VC3000X vision controller, 12th-I7, 16GB+128G SSD+2T HDD, No PoE, Incl. PCIe expansion

Model MV-VC3714X-128G60

Hikrobot MV-VC3714X-128G60 VC3000X vision controller, 12th-I7, 16GB+128G SSD+2T HDD, No PoE, Incl. PCIe expansion. Desktop-class Intel Gen 12 CPU for powerful computing performance Extensive expansion slots for common machine-vision image acquisition interfaces, with stable performance

Price on request
3.04 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF, Chinese) - MV-VC3714X-128G60User manual (PDF, Chinese) - MV-VC3714X-128G60CAD: 3D STEP + 2D DXF (ZIP) - MV-VC3714X-128G60

Features

  • Desktop-class Intel Gen 12 CPU for powerful computing performance
  • Extensive expansion slots for common machine-vision image acquisition interfaces, with stable performance
  • 24 GPIO inputs/outputs; outputs switchable between NPN and PNP
  • GigE port for fast, stable image transmission

Specifications

ModelMV-VC3714X-128G60
BrandHikrobot
CPUIntel® CoreTM i7-12700
Memory8 GB×2
Storage128 GB SSD + 2 TB HDD, 128 GB SSD
GPUIntel® HD Graphics 770
Operating systemUnactivated Windows 10
Encryption methodNone
Video output1× HDMI port, 1× VGA port; Simultaneous independent display output supported; HDMI: up to 1920 × 1080 @ 60Hz, VGA: up to 1920 × 1440 @ 60Hz
Digital I/O8 digital isolated inputs supported; 16 opto-isolated outputs supported (NPN/PNP switchable)
Network interface6× Gigabit Ethernet ports
USB Interface4× USB 2.0 ports; 4× USB 3.0 ports
Serial Port2× full-function RS-232, RS-485/RS-422 switchable
Light interface4-channel 24 V constant-voltage light drive, Max. power per channel: 72 W, Max. power (4 channels): 80 W
Extended interface1× PCIe 3.0 x16 slot
Power supply24 VDC
Power consumption144 W
Dimension161.4 mm × 208.5 mm × 105.5 mm
WeightApprox. 2.1 kg
Temperature0 ~ 50 °C
Humidity20% RH to 95% RH (no condensation)
CertificationCE, KC
Shipping weight (estimated)3.04 kg
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the VC3000 series Vision Controller series

ModelSizePriceAvailability
MV-VC3706H-128G60I7-8700 Price on request 2 in stockView
MV-VC3705H-256G60I7-8700 Price on request 4 in stockView
MV-VC3706H-256G60I7-8700 Price on request 4 in stockView
MV-VC3705H-512G60I7-8700 Price on request 2 in stockView
MV-VC3505X-128G60i5-12400 Price on request 2 in stockView
MV-VC3705X-128G60i7-12700 Price on request 5 in stockView
MV-VC3705X-256G60i7-12700 Price on request 5 in stockView
MV-VC3505H-128G60I5-8500 Price on request 2 in stockView
MV-VC3506H-128G60I5-8500 Price on request 3 in stockView
MV-VC3305X-128G60i3-12100 Price on request 3 in stockView
MV-VC3311X-128G6012th-I3, 8GB+128G SSD Price on request 3 in stockView
MV-VC3312X-128G6012th-I3, 8GB+128G SSD+2T HDD Price on request 4 in stockView
MV-VC3313X-128G6012th-I3, 8GB+128G SSD+2T HDD Price on request 5 in stockView
MV-VC3314X-128G6012th-I3, 16GB+128G SSD+2T HDD Price on request 3 in stockView
MV-VC3315X-128G60i3-12100 Price on request 2 in stockView
MV-VC3511X-128G6012th-I5 Price on request 4 in stockView
MV-VC3512X-128G6012th-I5, 8GB+128G SSD+2T HDD Price on request 2 in stockView
MV-VC3513X-128G6012th-I5, 8GB+128G SSD+2T HDD Price on request 2 in stockView
MV-VC3514X-128G6012th-I5, 16GB+128G SSD+2T HDD Price on request 2 in stockView
MV-VC3515X-128G60i5-12400 Price on request 4 in stockView
MV-VC3711X-128G6012th-I7, 8GB+128G SSD Price on request 3 in stockView
MV-VC3712X-128G6012th-I7, 8GB+128G SSD+2T HDD Price on request 5 in stockView
MV-VC3713X-128G6012th-I7, 8GB+128G SSD+2T HDD Price on request 3 in stockView
MV-VC3715X-128G60i7-12700 Price on request 2 in stockView

See all 113 models in the VC3000 series Vision Controller series
