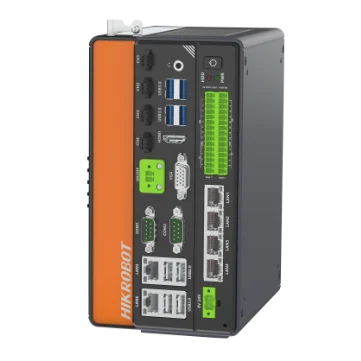

Hikrobot MV-VC3705X-128G60 VC3000X vision controller, Gen 12 i7-12700, 2*8GB+128GSSD, No PoE, VM license not included, Without PCIe expansion

Name: Hikrobot MV-VC3705X-128G60 VC3000X vision controller, Gen 12 i7-12700, 2*8GB+128GSSD, No PoE, VM license not included, Without PCIe expansion
Brand: Hikrobot
SKU: MV-VC3705X-128G60

Model MV-VC3705X-128G60

Hikrobot MV-VC3705X-128G60 VC3000X vision controller, Gen 12 i7-12700, 2*8GB+128GSSD, No PoE, VM license not included, Without PCIe expansion. Desktop-class Intel Gen 12 CPU for powerful computing performance Extensive expansion slots for common machine-vision image acquisition interfaces, with stable performance

Datasheet (PDF, Chinese) - MV-VC3705X-128G60 User manual (PDF, Chinese) - MV-VC3705X-128G60 CAD: 3D STEP + 2D DXF (ZIP) - MV-VC3705X-128G60

Features

Desktop-class Intel Gen 12 CPU for powerful computing performance
Extensive expansion slots for common machine-vision image acquisition interfaces, with stable performance
24 GPIO inputs/outputs; outputs switchable between NPN and PNP
GigE port for fast, stable image transmission

Specifications

Model	MV-VC3705X-128G60
Brand	Hikrobot
CPU	Intel® CoreTM i7-12700
Memory	8 GB×2
Storage	128G SSD
GPU	Intel® HD Graphics 770
Operating system	Unactivated Windows 10
Encryption method	None
Video output	1× HDMI port, 1× VGA port; Simultaneous independent display output supported; HDMI: up to 1920 × 1080 @ 60Hz, VGA: up to 1920 × 1440 @ 60Hz
Digital I/O	8 digital isolated inputs supported; 16 opto-isolated outputs supported (NPN/PNP switchable)
Network interface	6× Gigabit Ethernet ports
USB Interface	4× USB 2.0 ports; 4× USB 3.0 ports
Serial Port	2× full-function RS-232, RS-485/RS-422 switchable
Light interface	4-channel 24 V constant-voltage light drive, Max. power per channel: 72 W, Max. power (4 channels): 80 W
Extended interface	None
Power supply	24 VDC
Power consumption	144 W
Dimension	161.4 mm × 208.5 mm × 105.5 mm
Weight	Approx. 2.1 kg
Temperature	0 ~ 50 °C
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, KC
Shipping weight (estimated)	3.04 kg

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the VC3000 series Vision Controller series

Model	Size	Price	Availability
MV-VC3501X-128G66	12th-I5, 8GB+128G SSD	Price on request	2 in stock	View
MV-VC3701X-128G66	12th-I7, 8GB+128G SSD	Price on request	4 in stock	View
MV-VC3704X-128G66	12th-I7, 16GB+128G SSD+2T HDD	Price on request	5 in stock	View
MV-VC3504X-128G66	12th-I5, 16GB+128G SSD+2T HDD	Price on request	3 in stock	View
MV-VC3705H-128G60	I7-8700, 16GB+128G SSD	Price on request	3 in stock	View
MV-VC3305H-128G60	I3-8100	Price on request	5 in stock	View
MV-VC3306H-128G60	I3-8100	Price on request	2 in stock	View
MV-VC3706H-128G60	I7-8700	Price on request	2 in stock	View
MV-VC3705H-256G60	I7-8700	Price on request	4 in stock	View
MV-VC3706H-256G60	I7-8700	Price on request	4 in stock	View
MV-VC3705H-512G60	I7-8700	Price on request	2 in stock	View
MV-VC3505X-128G60	i5-12400	Price on request	2 in stock	View
MV-VC3705X-256G60	i7-12700	Price on request	5 in stock	View
MV-VC3505H-128G60	I5-8500	Price on request	2 in stock	View
MV-VC3506H-128G60	I5-8500	Price on request	3 in stock	View
MV-VC3305X-128G60	i3-12100	Price on request	3 in stock	View
MV-VC3311X-128G60	12th-I3, 8GB+128G SSD	Price on request	3 in stock	View
MV-VC3312X-128G60	12th-I3, 8GB+128G SSD+2T HDD	Price on request	4 in stock	View
MV-VC3313X-128G60	12th-I3, 8GB+128G SSD+2T HDD	Price on request	5 in stock	View
MV-VC3314X-128G60	12th-I3, 16GB+128G SSD+2T HDD	Price on request	3 in stock	View
MV-VC3315X-128G60	i3-12100	Price on request	2 in stock	View
MV-VC3511X-128G60	12th-I5	Price on request	4 in stock	View
MV-VC3512X-128G60	12th-I5, 8GB+128G SSD+2T HDD	Price on request	2 in stock	View
MV-VC3513X-128G60	12th-I5, 8GB+128G SSD+2T HDD	Price on request	2 in stock	View

See all 113 models in the VC3000 series Vision Controller series
